1.2L REVOTRON ENGINE
83
1.6 ENGINE SYSTEM
A. AIR INTAKE SYSTEM

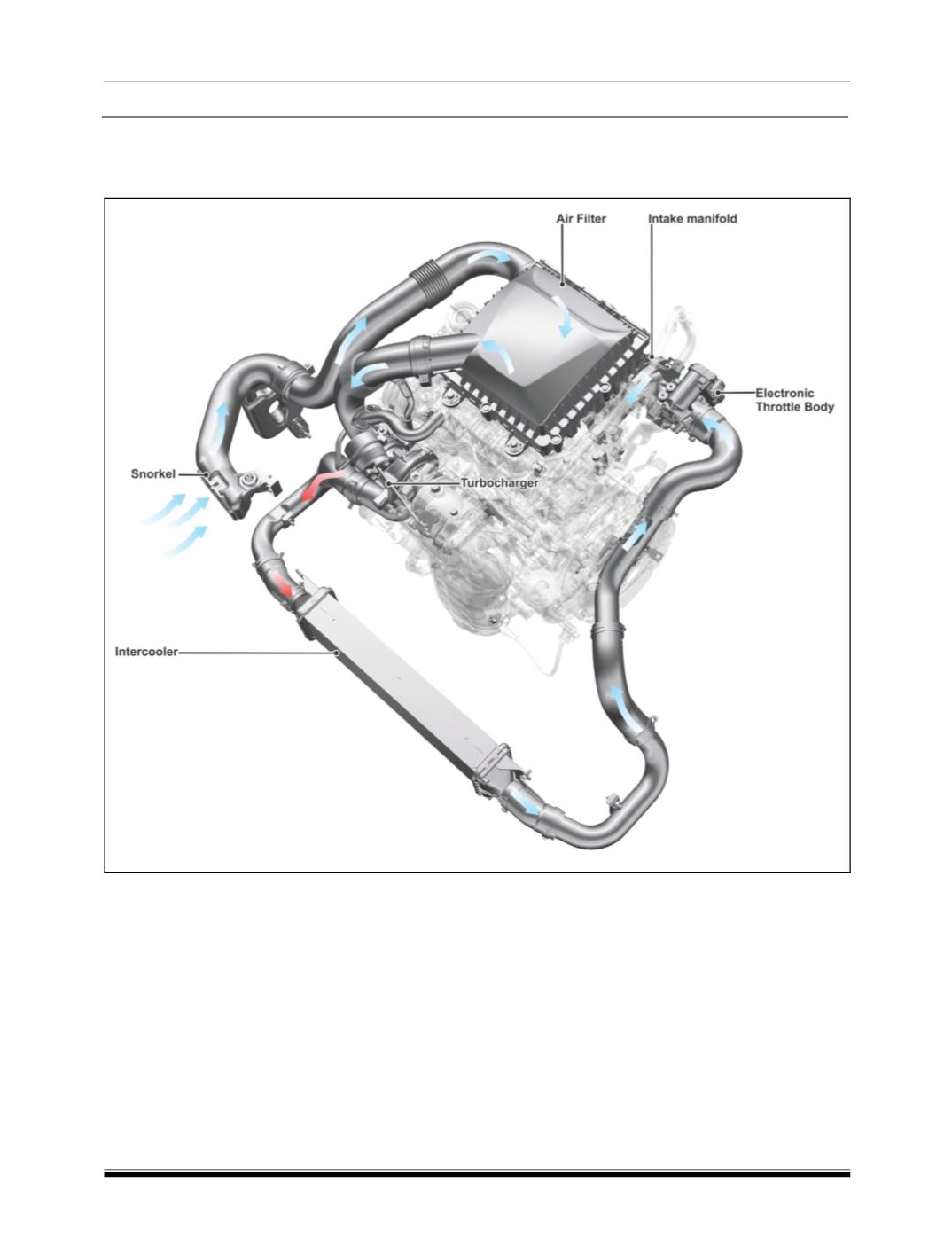

Air Intake System Schematic Layout
1
Intake Snorkel (Duct)
4
T map sensor
2
Air Filter
5
Intake Manifold
3
Electronic Throttle Control
6
Intercooler
Description
Air is drawn into the combustion chamber through
the air intake system as shown in above
schematic layout.
The air is driven to the intake manifold primarily
due to the force induction through turbocharger
compressor of the engine.
The fresh air from the atmosphere is made to
pass through air snorkel then through an air filter
passing along the turbocharger where it is
compressed and to intercooler where the air is
cooled and directed toward the throttle body.
Throttle body is electronically controlled which
control the amount air supplied and then it is
drawn into the intake manifold and into the
engine.
