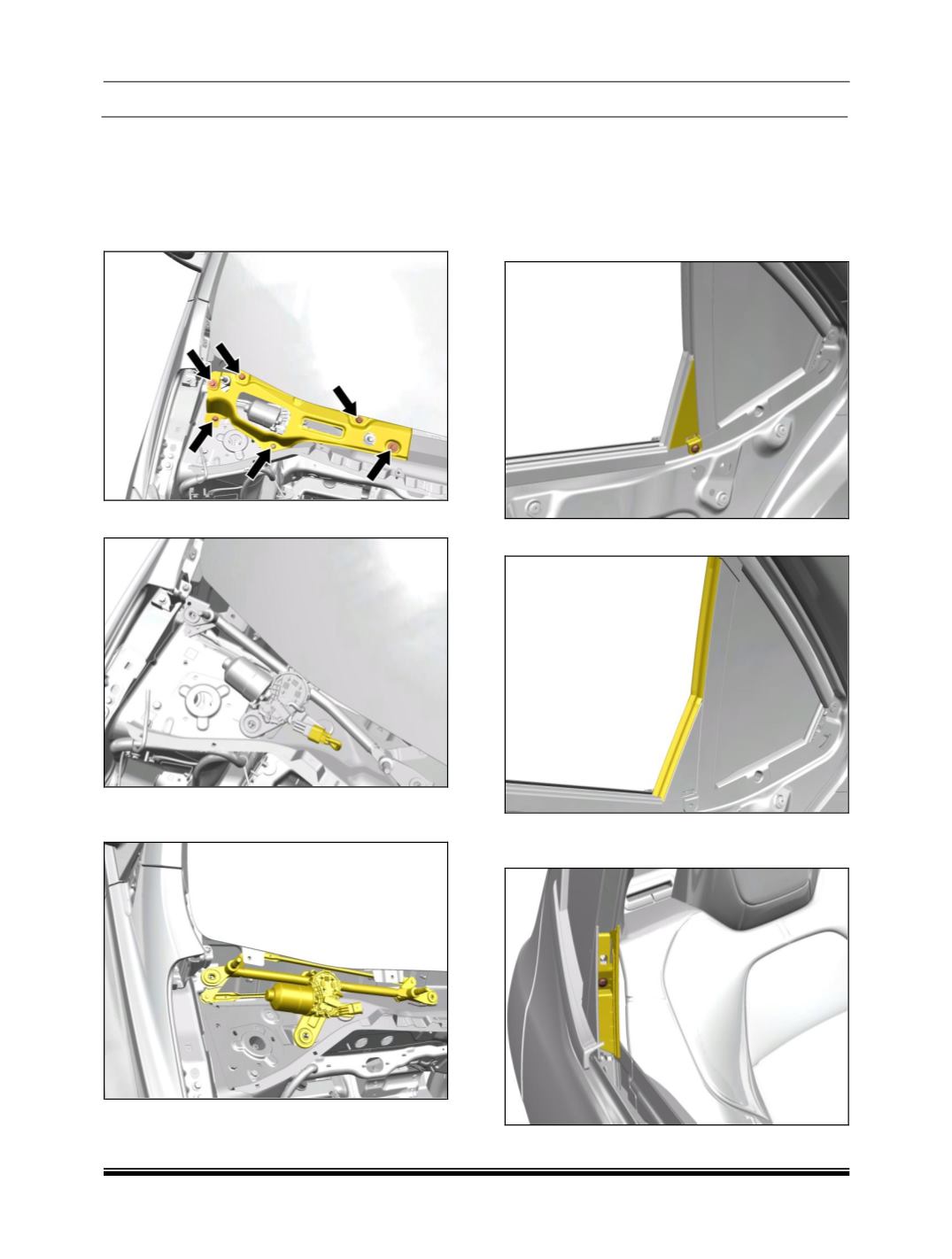

5. Remove Plenum Cover assembly.

(For

procedure refer Plenum Cover assembly

removal process).

6. Loosen and remove mounting bolts of Wiper

mounting bracket and remove the Wiper

mounting bracket.

7. Remove the wiper motor electrical connection.

8. Remove Wiper motor assembly complete with

linkages.

FITMENT

For fitment follow reverse procedure of removal.

9.2.45 REAR DOOR CHEATER COVER

1. Pull the window glass down and remove the

rear door trim.

(For removal refer rear door

removal process).

2. Remove inner rear door cheater mounting

screw on the door panel.

3. Remove the side glass run mould.

4. Remove inner rear door cheater side mounting

screw and take out the inner cheater.
