TIAGOR

ELECTRICAL

208

FUSE NO

FUNCTION

FUSE DESCRIPTION

F14

CDL. Acc. Conn. 1

15A

F15

Power Socket 1

15A

F16

Relay Coils

F17

Tailgate LATCH

10A

F18

HVAC

10A

F19

Flasher

10A

F19

Heated Rear Screen

25A

F20

Module KL.5 I/P

10A

F21

Power Skt Console

15A

F22

Transist / Infotainment

15A

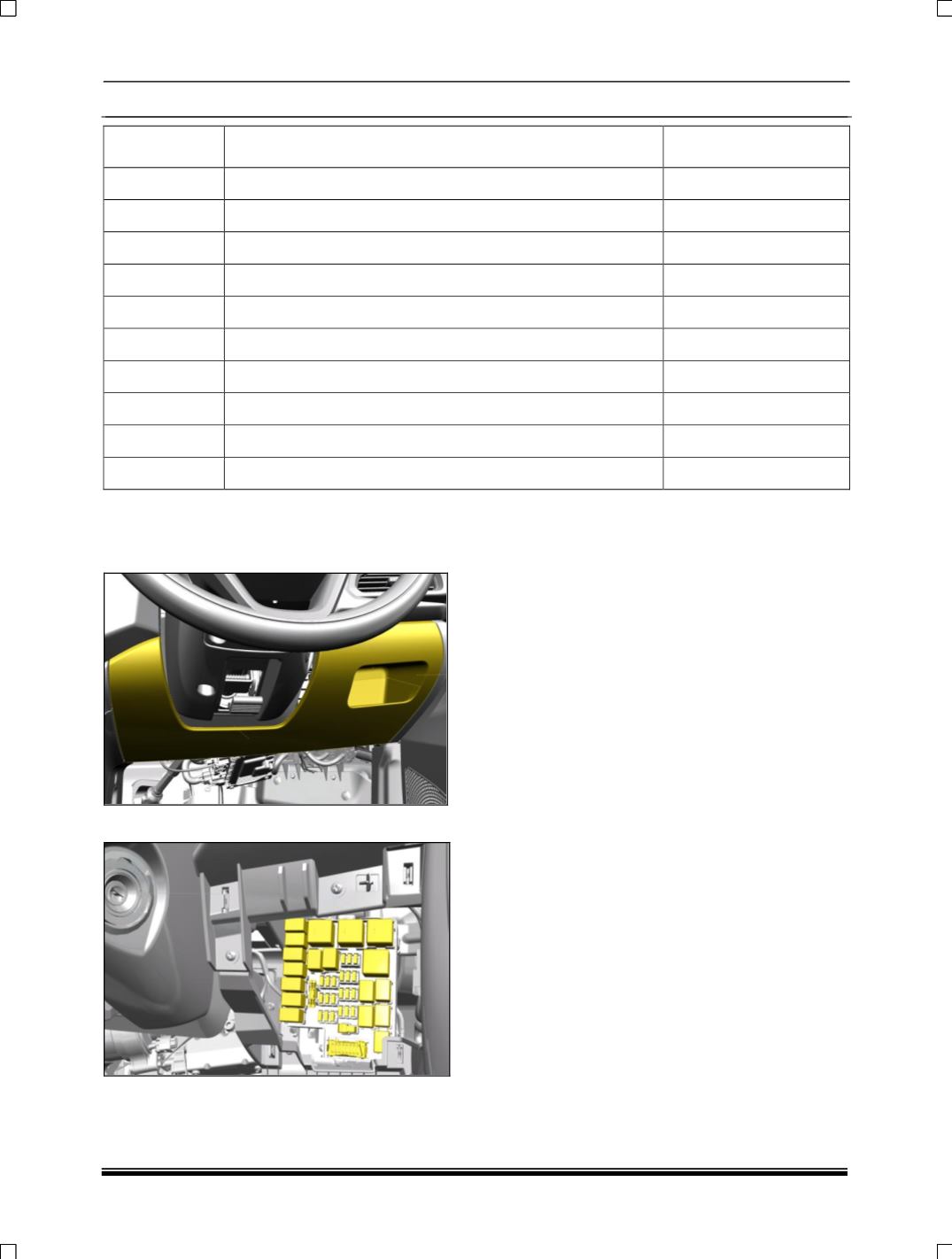

FUSE AND RELAY REPLACEMENT

1. Remove the driver lower panel (Refer Body

section).

2. Take out the fuse and relay from its base.

3. Check the Fuse/relay.

4. If faulty replace with same ratting of fuse and

relay.

REPLACEMENT PROCEDURE FOR RELAYS

1. Turn the ignition key to lock position.

2. Check each relay, if faulty replace with same

rating relay.

3. If replaced relay of same rating is not working

properly, there is probably a serious electrical

problem.

REPLACEMENT PROCEDURE FOR FUSES

1. Turn the ignition key to lock position.

2. Check each fuse and look for broken/open

controls link wire inside the fuse. If it is burnt,

replace it with one of the spare fuses of same

rating.

3. If replaced fuse of same rating burns out then,

there is probably a serious electrical problem.

Note: Use designated fuses only

27.4 CIRCUIT SCHMATICS

Refer A3 Book

27.5 DTCs

Refer A3 Book
