ELECTRICAL
75

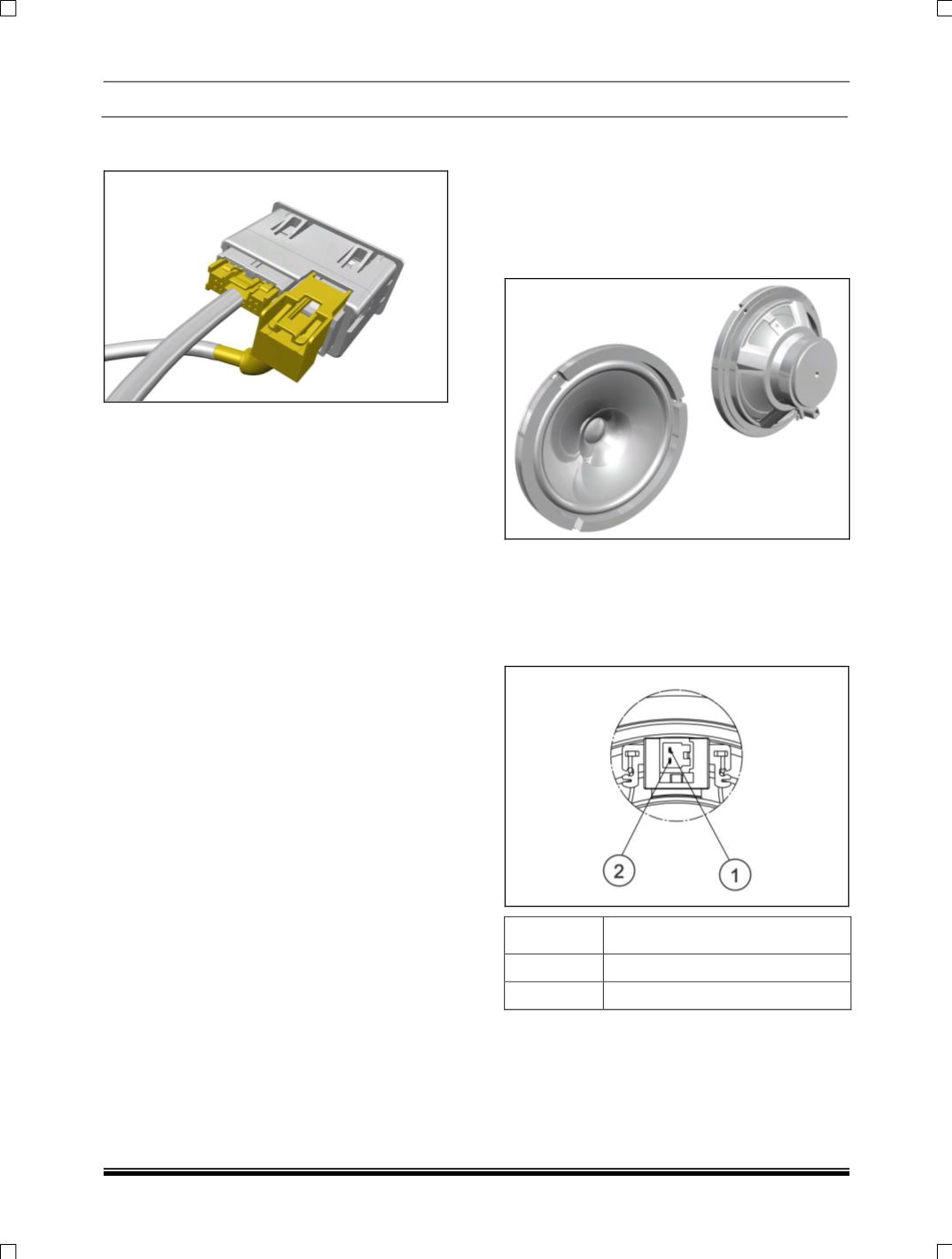

2. Disconnect the electrical connections & take
out the switch assy.
REFITMENT
For refitment follow the procedure in reverse.
18.3 SPEAKERS
Front & rear door speakers are component
speaker which consist of woofer only
Speakers and tweeters are provided on models with
infotainment system. Provisions are given for music
system and speakers on models without
infotainment system.
LOCATION
There are total 4 speakers fitted in the vehicle of
which two are fitted in the front door and rear door
respectively.
PINOUT DETAILS
PIN
DESCRIPTION
1
-ve
2
+ve
