DRIVETRAIN-TA65 Star

47

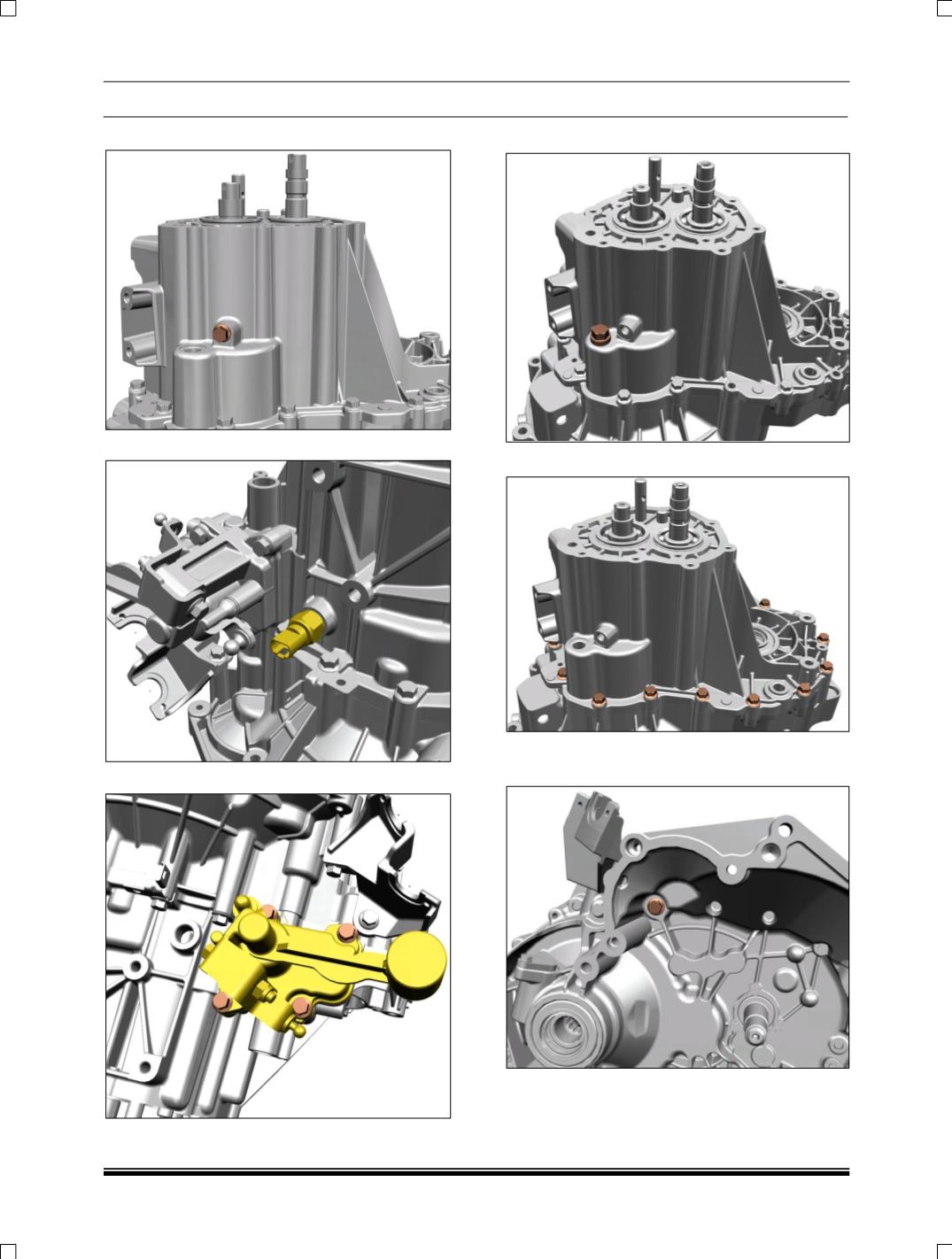

23. Remove the hex flanged bolts on housing.

24. Remove reverse switch.

25. Remove the top cover assembly.

26. Remove the filler plug on the housing

.

27. Remove the hex flanged bolts on the housing

.

28. Rotate the transaxle upside down. Remove the

hex flange bolts provided at clutch housing.

29. Remove the gear box housing (rear half) by
