DRIVETRAIN-TA65 Star
45

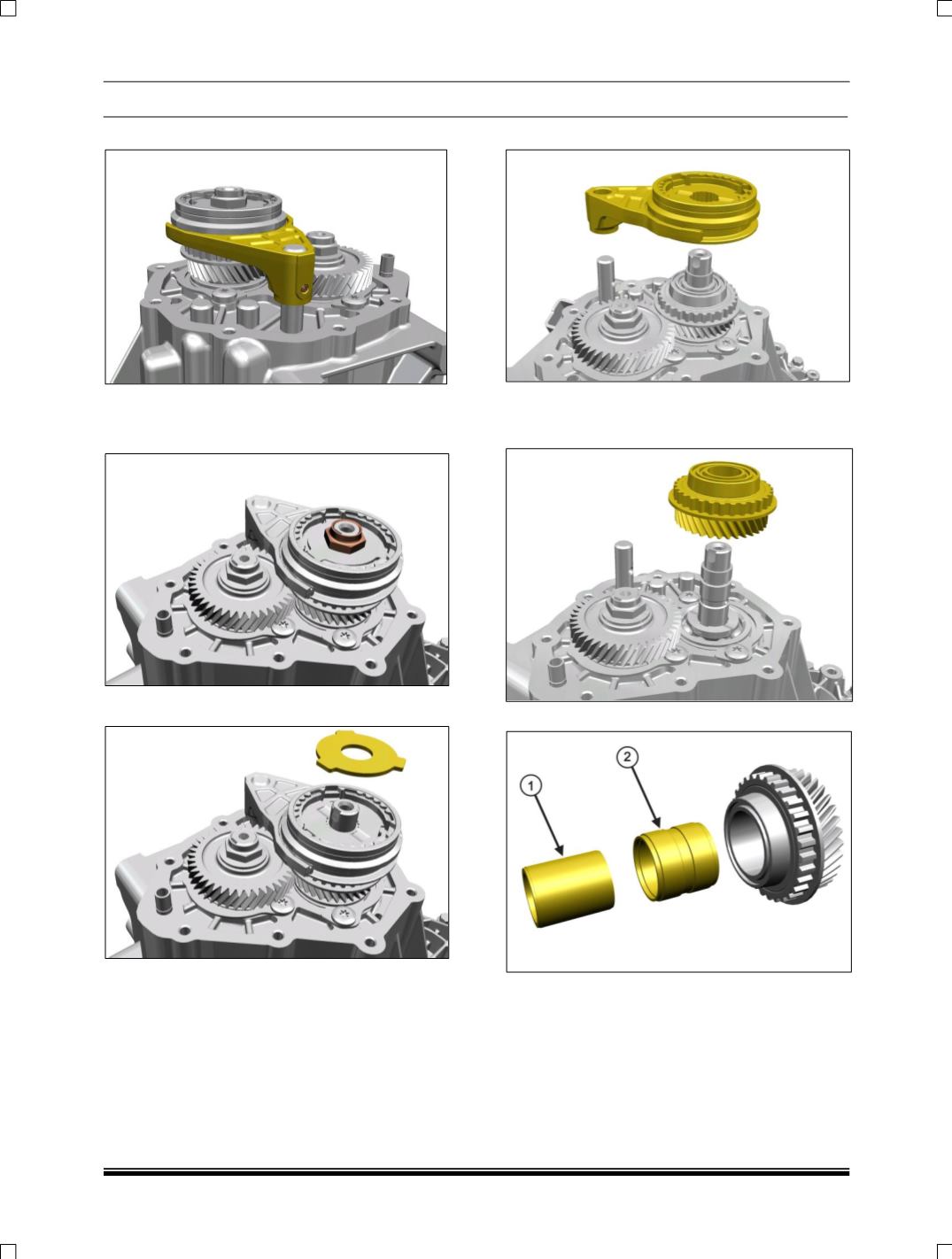

10. Remove 5
th
gear spiral pin, on shifter fork.
11. Engage any gear using selector/shifter
mechanism.
12. Unstake and unscrew the locknut on lay shaft.
13.
Remove lock-plate (5th speed gear).
14. Remove engaging gear (5th speed) along with
sleeve and fork taking care that carrier
assembly does not slip off.
15. Remove the
5th
gear and engaging gear along
with the synchrocone. Do not allow the carrier
assembly to slip off the lay shaft.
16. Remove needle bush 1 and bearing 2.
