SUPPLEMENTARY RESTRAINT SYSTEM (SRS)

12

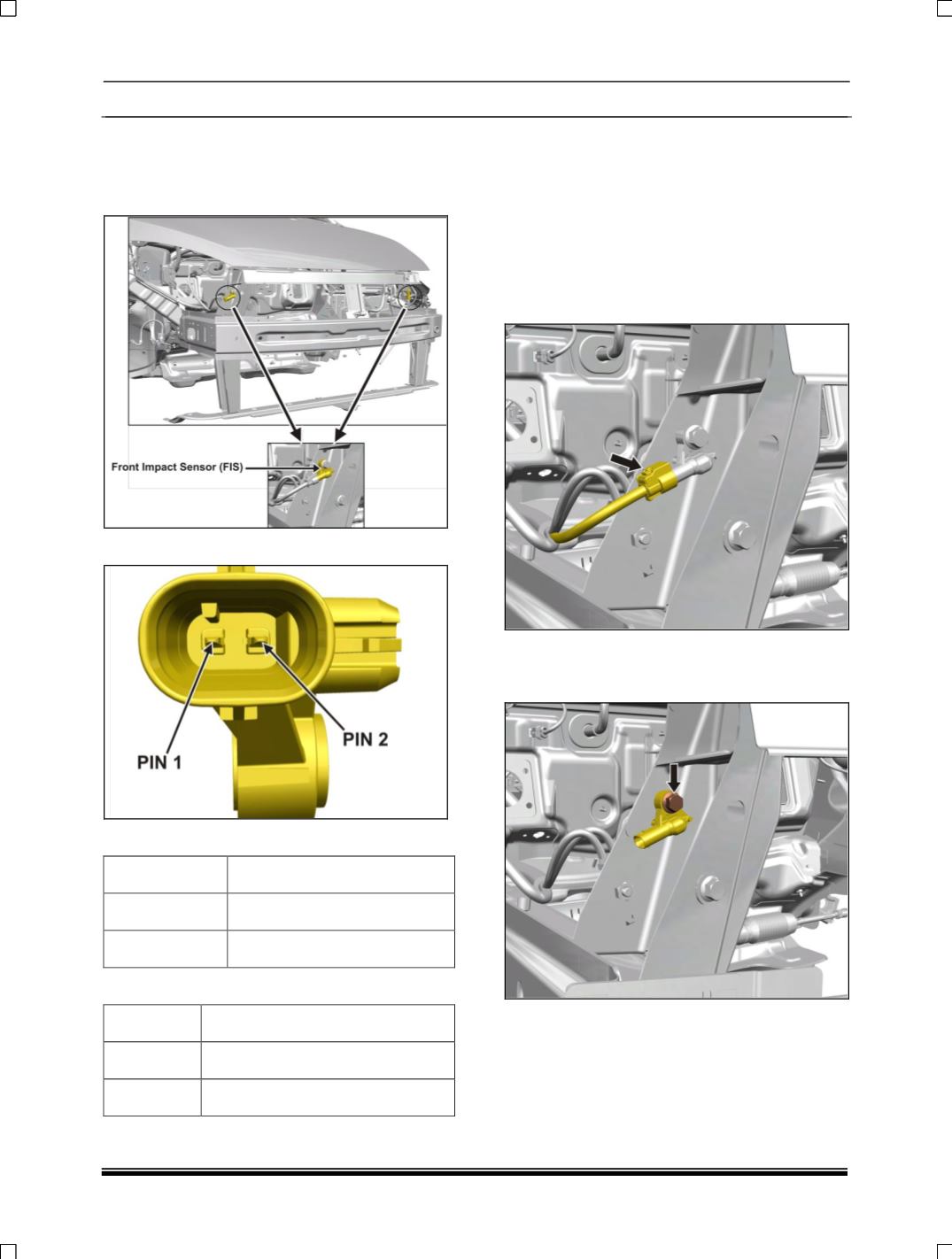

LOCATION

Front Impact sensors are mounted on vertical

members of front end module on the both side i.e.

RH & LH.

CONNECTOR

PINOUTS

PIN NO.

PIN DESCRIPTION

1

SIGNAL

2

GROUND

SUPPLY VOLTAGE LEVEL

Minimum

5.25 V

Nominal

6.20 V

Maximum

16.5 V

ON VEHICLE SERVICE

REMOVAL

1. Open Bonnet.

2. Remove the battery connection.

3. Remove headlamp. (For removal refer

Electrical section)

4. Disconnect the electrical connection from the

front impact sensor.

5. Loosen and remove the mounting flange bolt

and take out the front impact sensor from the

vehicle.

FITMENT

For fitment follow reverse procedure of removal.
