SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
11
ON VEHICLE SERVICE ECU
REMOVAL
1. Disconnect the battery connections.
2. Remove Gear shifter knob and Cover.
(For
procedure refer floor console removal in BODY
section).
3. Remove the assembly floor console rear
(For
procedure refer floor console removal in BODY
section).
4. Remove the Induction charger bin.
(For
procedure refer floor console removal in BODY
section).
5. Remove the floor console front
(For procedure
refer floor console removal in BODY section).
6. Disconnect the electrical connection from the
air bag ECU and remove the ECU assembly.

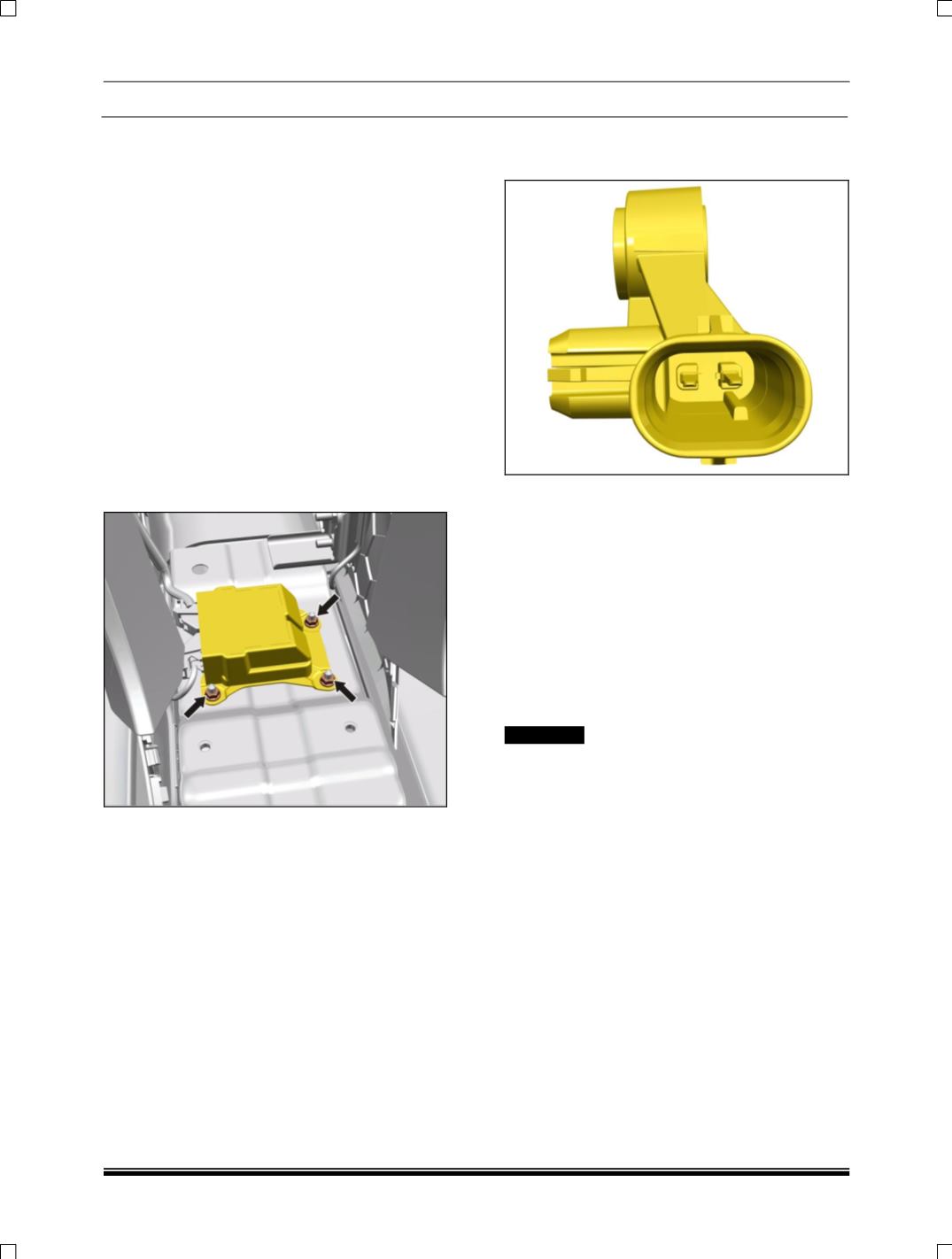

7. Loosen and remove the mounting nuts
FITMENT
For fitment follow reverse procedure of removal.
PRECAUTIONS
If the ECU is accidentally dropped on the
concrete floor from the height of more than 1m
then that ECU should not be used on a
vehicle.
ECU should be transported with proper
packing material.
Always store the ECU in dry place.
A person handling any restraints module
assembly shall have to wear ESD
(electro-
static discharge)
straps to reduce any risk of
inadvertent deployment.
7.2.2. SENSORS
A. FRONT IMPACT SENSOR
(FIS)
These sensors are mounted on vertical members
of front end module on the both side i.e. RH & LH,
so that, it will react almost instantly to the sudden
deceleration that results from the front impact.
They send signal to the SRS ECU and help in
firing the restraints in the minimum possible time.
These sensors along with SRS ECU are equipped
with
“Safe Mode”
function to ensure that the SRS
fires only when there is a physical crash event of
significant severity.
MAKE: BOSCH
SUPPLY VOLTAGE RANGE: 5.25 V to 16.5
! CAUTION
Do not attempt to check or replace any impact
sensor unless the vehicle battery is disconnected.
This renders the sensing system "powered OFF".
Wait for at least 10 minutes after the battery is
disconnected and then start the relevant
work/repair.
