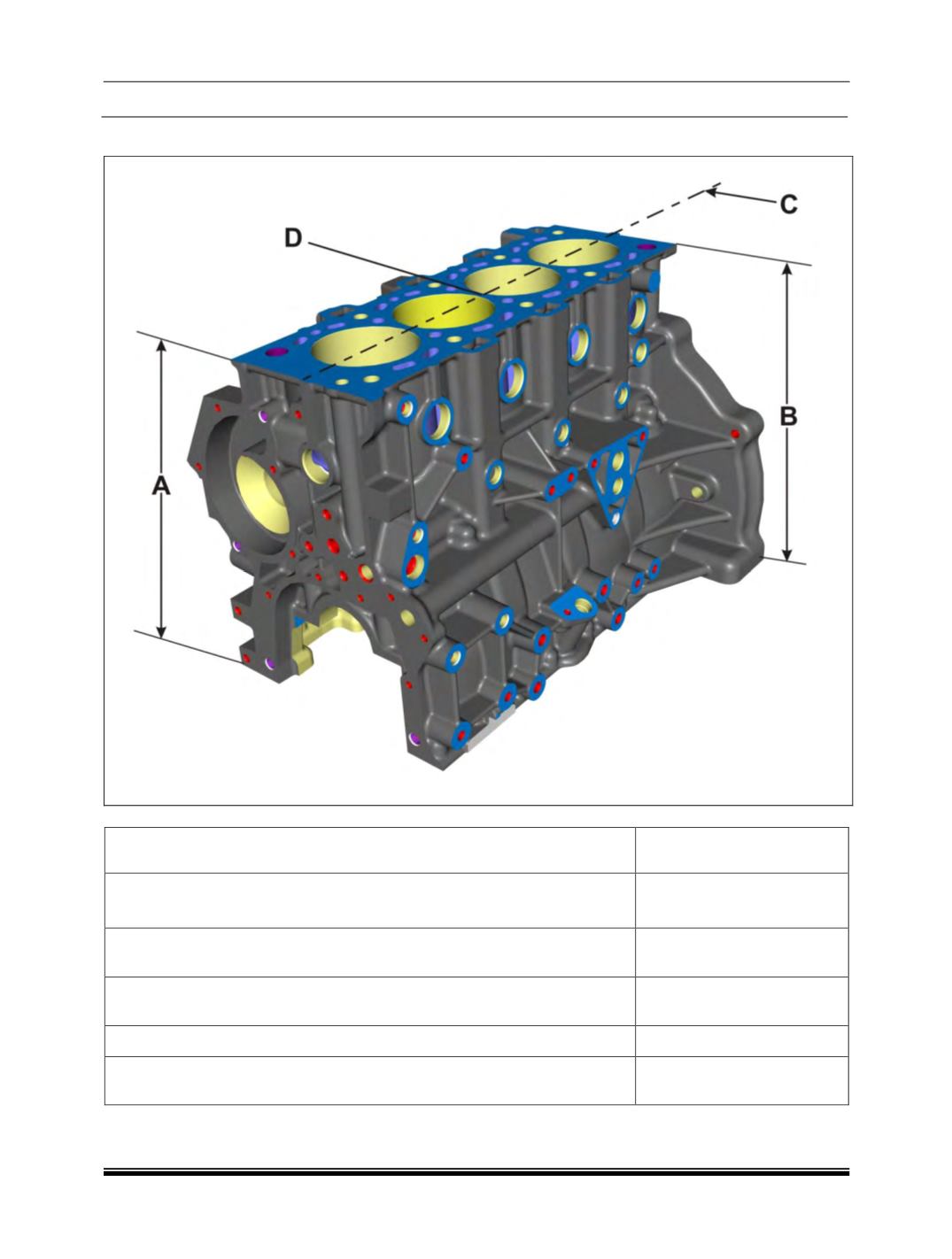

F. Crankcase :

Height of Crankcase (Dimensions A and B)

311 ± 0.1 mm

Maximum permissible unevenness of cylinder block ( Lengthwise 'C' )

mating surface with cylinder head 150 X 150 ( Crosswise 'D' )

0.03 mm

0.015 mm

Maximum permissible out off parallelism between cylinder block top and

bottom machined surface.

0.03mm

Maximum permissible shift in perpendicularity of cylinder bore from crank

shaft axis when checked at 200mm from crank shaft center line.

0.04mm

Maximum permissible circularity

0.01mm

Ovality of cylinder bore (Cylindricity)

0.01mm
