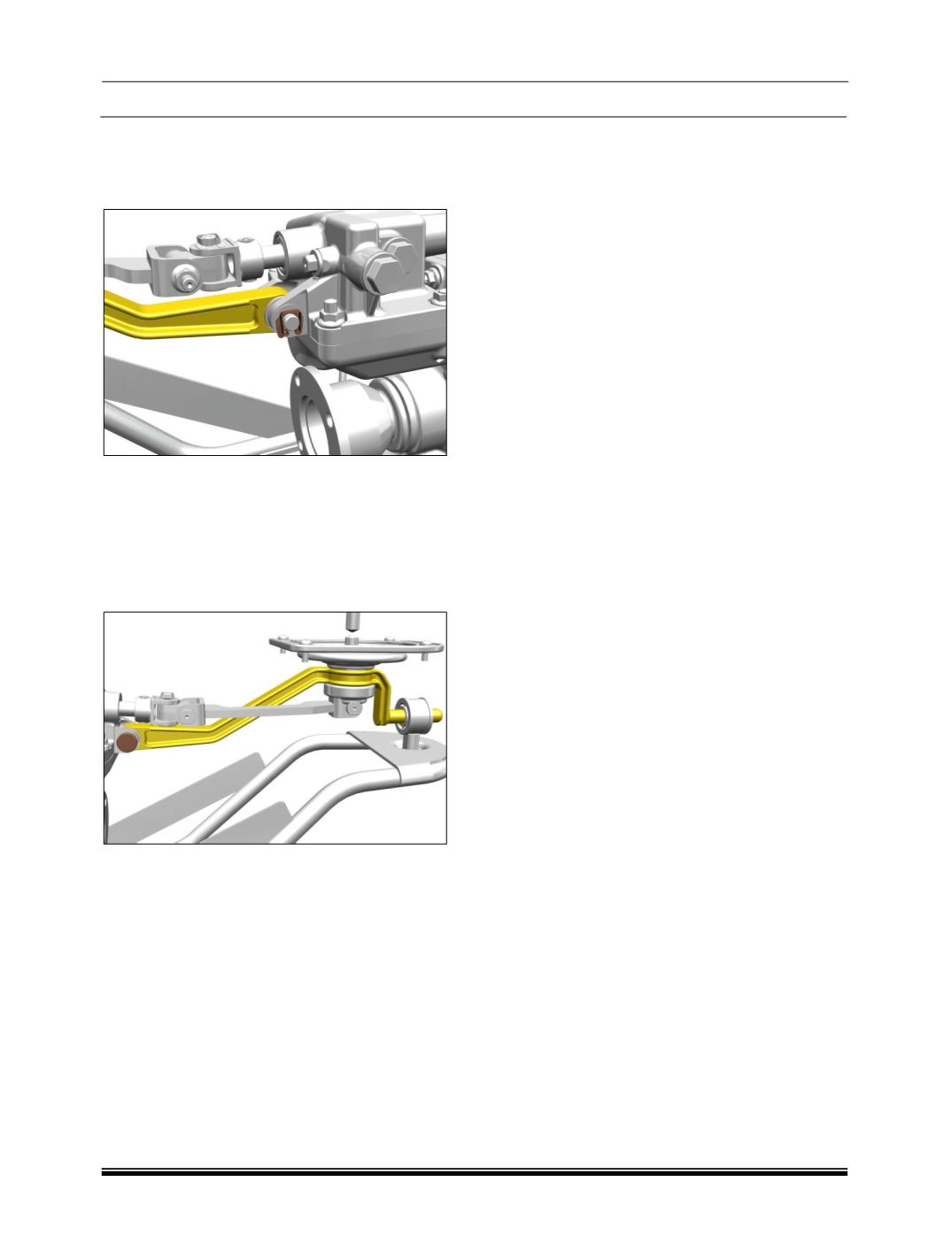

26.Align the shifter linkage assembly properly with

the shifting yoke and then slide the cylindrical pin

and press the retainer clip to lock the shifter link

along with the extension arm on to the gear box.

NOTE



Apply grease on the spherical seat of shifter

shaft end.



Check the condition of bush in the shifting yoke.

27.Remove the pin and nut of extension arm from

gear box.

28.Fit the magnetic drain plug, breather assembly

and reverse indicator switch.

29.Align the clutch housing. Place the spring and

bright washer and tighten the clutch housing

mounting bolts.

30.Fit the clutch release bearing and clutch release

fork. (For procedure refer clutch section.)
