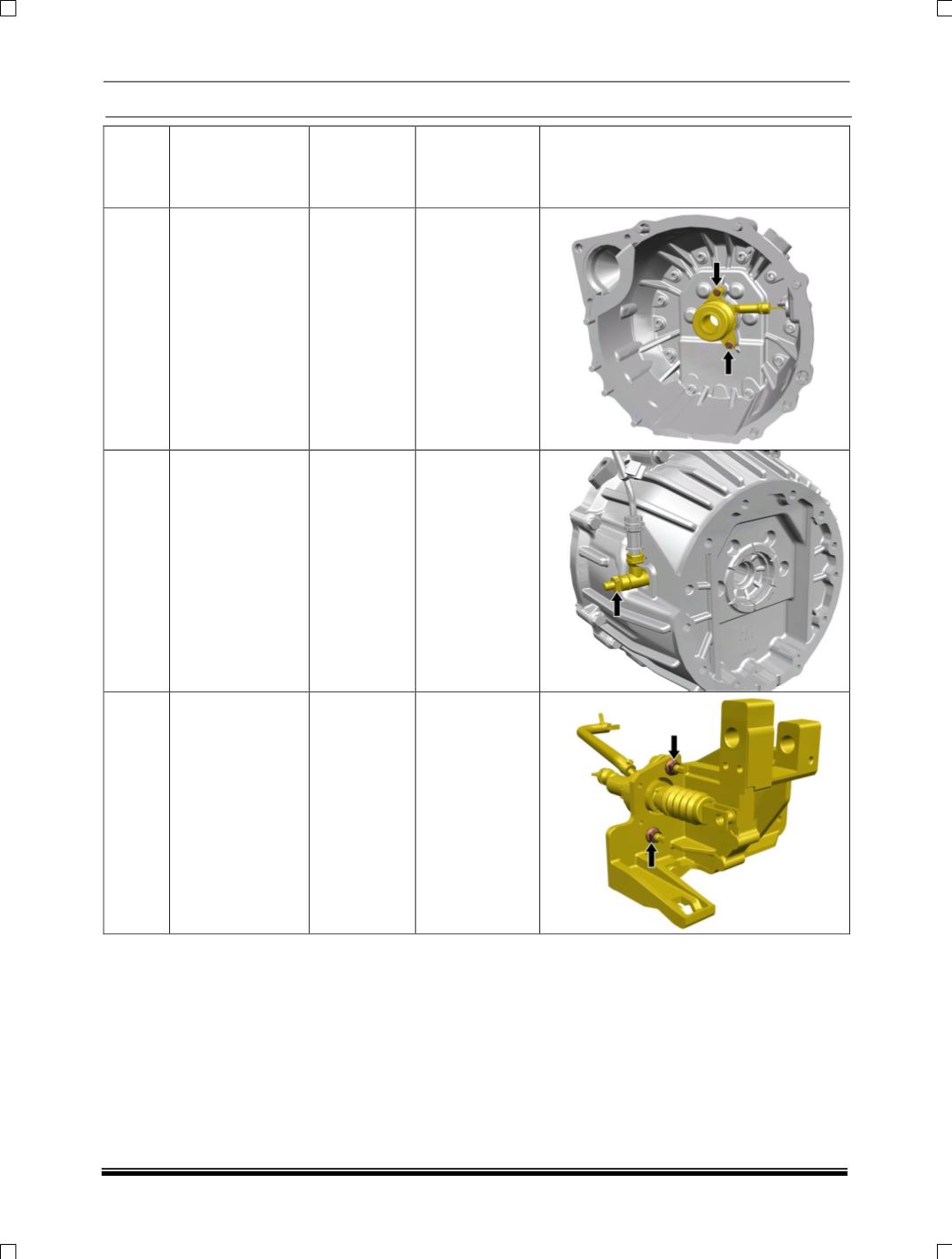

674 / 1906
CLUTCH
8
SR. NO. DESCRIPTION
FASTENER
TIGHTENING
TORQUE
(Kg-m)
LOCATION
4
Mounting Screws
(Concentric Slave
Cylinder to clutch
housing)
Hex. FL Screw
M6X30
(2 Nos.)
(10.9)
a. Initially tighten
both the screws
to torque of 0.5.
b. Finally tighten
the screws to 1.2
± 0.18
5
Bleeding valve on
Hydraulic Adapter
–
Hand operated
ON/OFF knob
6
CMC / Bayonet
Adapter to control
bracket
AM8
2.5
