CLUTCH
31
B.

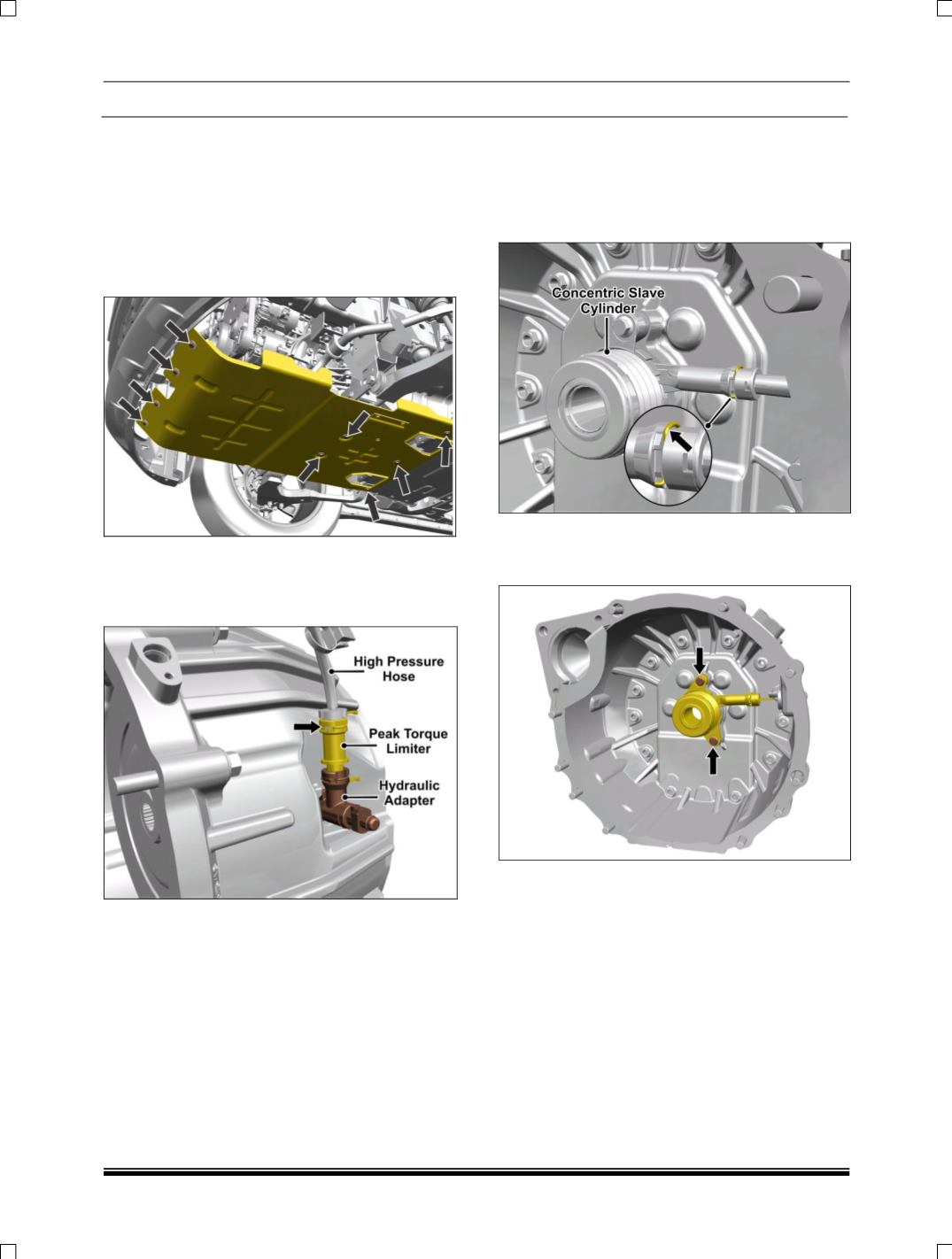

CONCENTRIC SLAVE CYLINDER
REMOVAL
1. Disconnect battery connection.
2. Remove the stone guard and drain the clutch
fluid from the hydraulic adapter.
(For
procedure refer clutch fluid draining procedure
in this section.)
3. Pull out the clip using a screw driver and
disconnect the high pressure line from peak
torque limiter
by pulling it out. Also remove the
peak torque limiter in similar way.
4. Lower the gearbox from the vehicle.
(For
procedure refer gearbox removal in Gearbox
section.)
5. Pull out the clip using a screw driver and
disconnect the hydraulic adapter from the
concentric slave cylinder
(CSC)
by pulling it
out.
WARNING
Small quantity of fluid will be present in the
concentric salve cylinder and hydraulic adapter;
therefore care should be taken that fluid does not
fall in the housing.
6. Loosen and remove concentric slave cylinder
(CSC)
mounting bolts
(2 Nos.)
from the clutch
housing.
CAUTION
Plug the opening with suitable cap to avoid
entrance of any contaminations and dirt in the
concentric slave cylinder.
Flush the connecting parts/hose with clean
clutch fluid before assembly to prevent
contamination of the new cylinder.
