then be finished on a connecting rod boring

machine.

16. Ensure that the connecting rod big end and

small end axis are parallel to each other

within the specified limits. Centre to center

distance between connecting rod small end

and big end is maintained within specified

limits.

17. If one or more connecting rods are to be

replaced, ensure that difference in weight of

connecting rod in one engine is within

permissible limits.

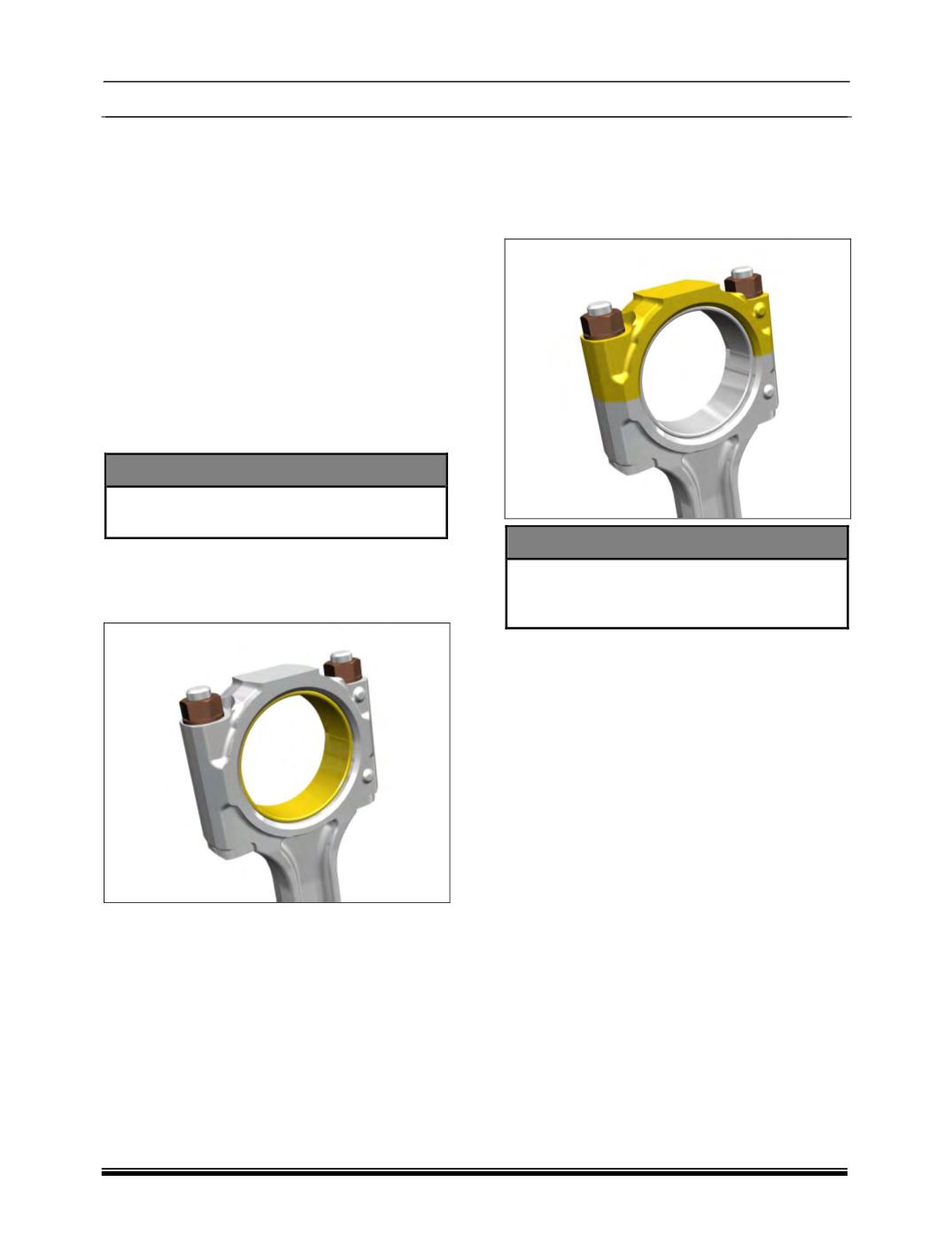

18. Install new pair of connecting rod bearing

shell according to size of crank pin journal

diameter, making sure that securing lugs of

bearing shells are properly seated in grooves

of connecting rod and its bearing cap.

NOTE

Lower and upper bearings are not

interchangeable.

19. Install connecting rod bearing cap with

bearing shell on connecting rod. Tighten

connecting rod bearing cap mtg. nuts to

specified torque.

20. Measure connecting rod bearing bore. Record

the readings in the format given in this

manual.

21. If connecting rod big end parent bore

dimension is maintained within specified

limits, proper bearing bore dimension is

automatically achieved.

22. However, it must be physically measured and

confirmed. Measure pretension of connecting

rod bearing shell with a feeler gauge after

loosening connecting rod bearing cap

mounting nut on opposite side of bearing shell

lug.

NOTE

Connecting rod bearing shells are precision

finished and should not be bored or

scraped.
