ENGINE

121

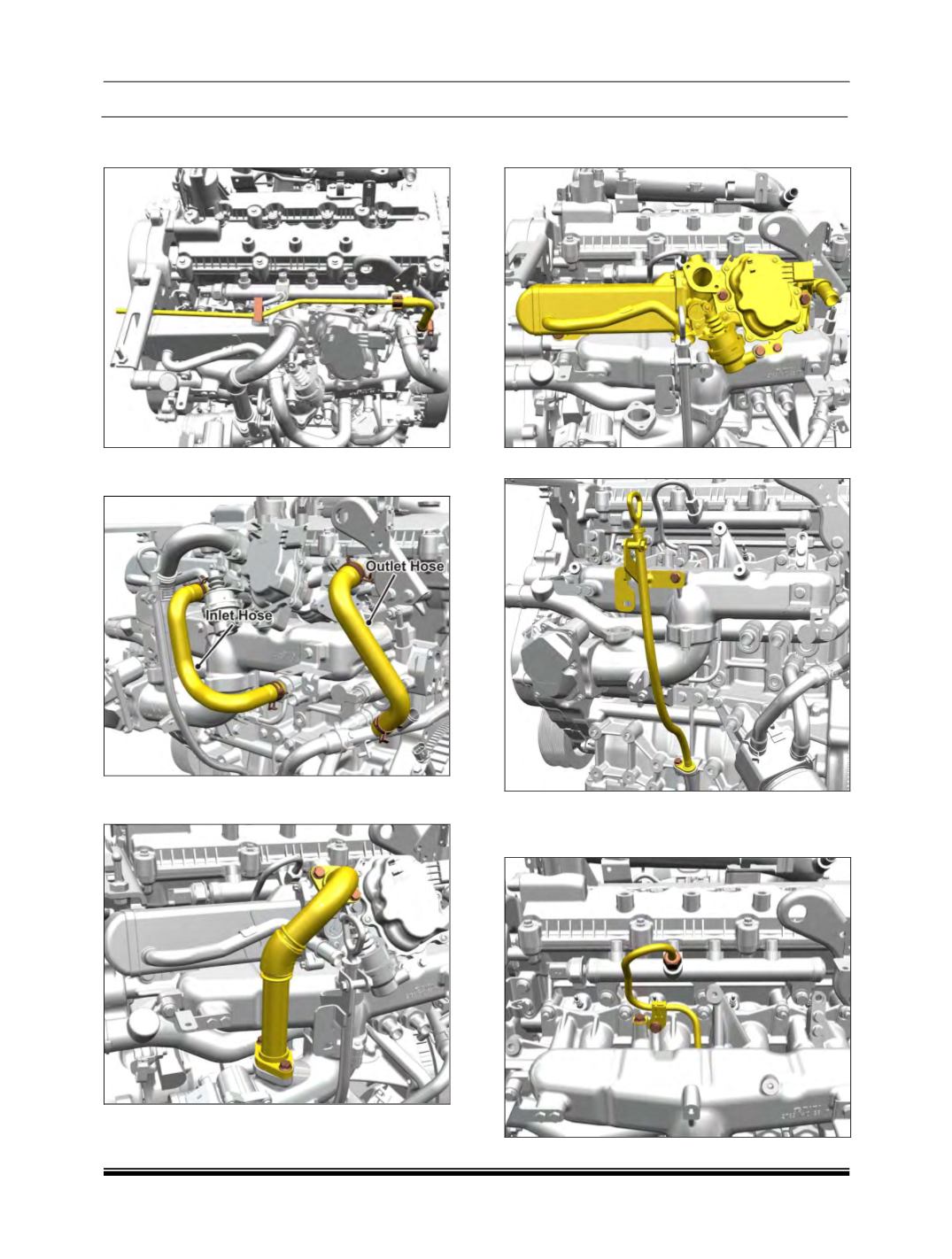

9. Disconnect the coolant vent tube from coolant

outlet pipe and remove it from the clips.

10. Remove the coolant hoses from the EGR

module assembly.

11. Loosen the bolts and remove the EGR outlet

pipe with gasket from EGR module assembly.

12. Loosen the bolts and remove the EGR

module assembly.

13. Remove dipstick tube assembly.

14. Loosen and remove the cap connector of the

HP line at common rail end and HP pipe

mounting bolt.
