HEXA

SUPPLEMENTARY RESTRAINT SYSTEM (SRS)

RETRACTOR PRETENSIONER AND LOAD LIMITER CONFIGURATION BELTS (RPLL)

Fitted inside B pillar - RH side.

vi)

RETRACTOR PRETENSIONER AND LOAD LIMITER CONFIGURATION BELTS (RPLL)

Fitted inside B pillar - LH side.

vii)

FRONT IMPACT SENSOR (FIS) (RH & LH)

These sensors are mounted on first body mount bracket at the both side i.e. RH & LH.

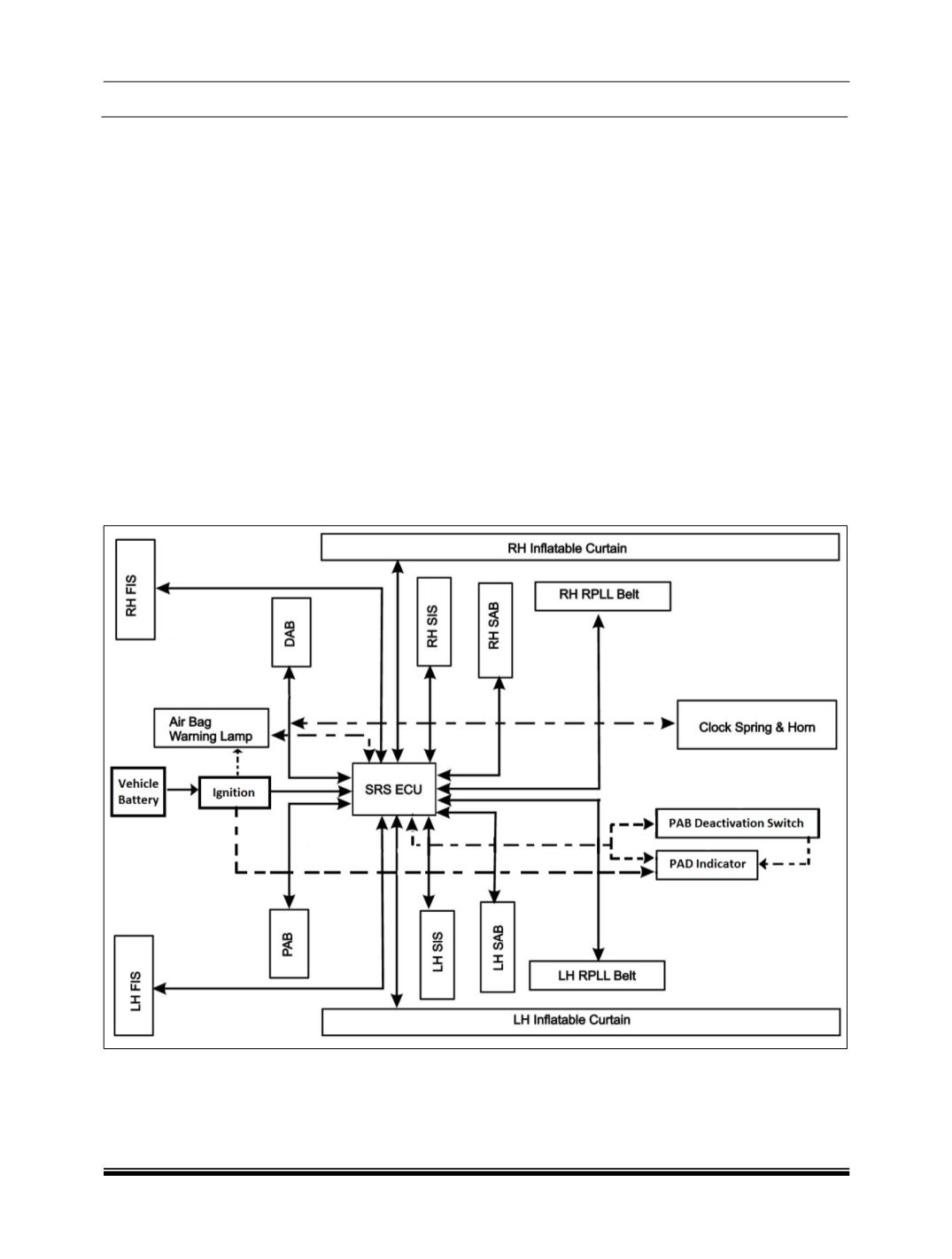

II. 8 LOOPS SYSTEM

For 8 Loop system, there are additional LH/RH Side Air bag modules, LH/RH Inflatable Curtain Airbag modules

and LH/RH Side Impact Sensors

SIDE AIRBAG

(SAB)

LH & RH

These airbags are located in seats which inflate between the occupant and door.

SIDE IMPACT SENSOR

(SIS) (LH & RH)

These sensors are mounted on side “B” pillar at the bottom end.

INFLATABLE CURTAIN

(LH & RH)

In the vehicle, curtain Airbags are folded and installed behind roof headliner on both sides of the vehicle.
