ENGINE

123

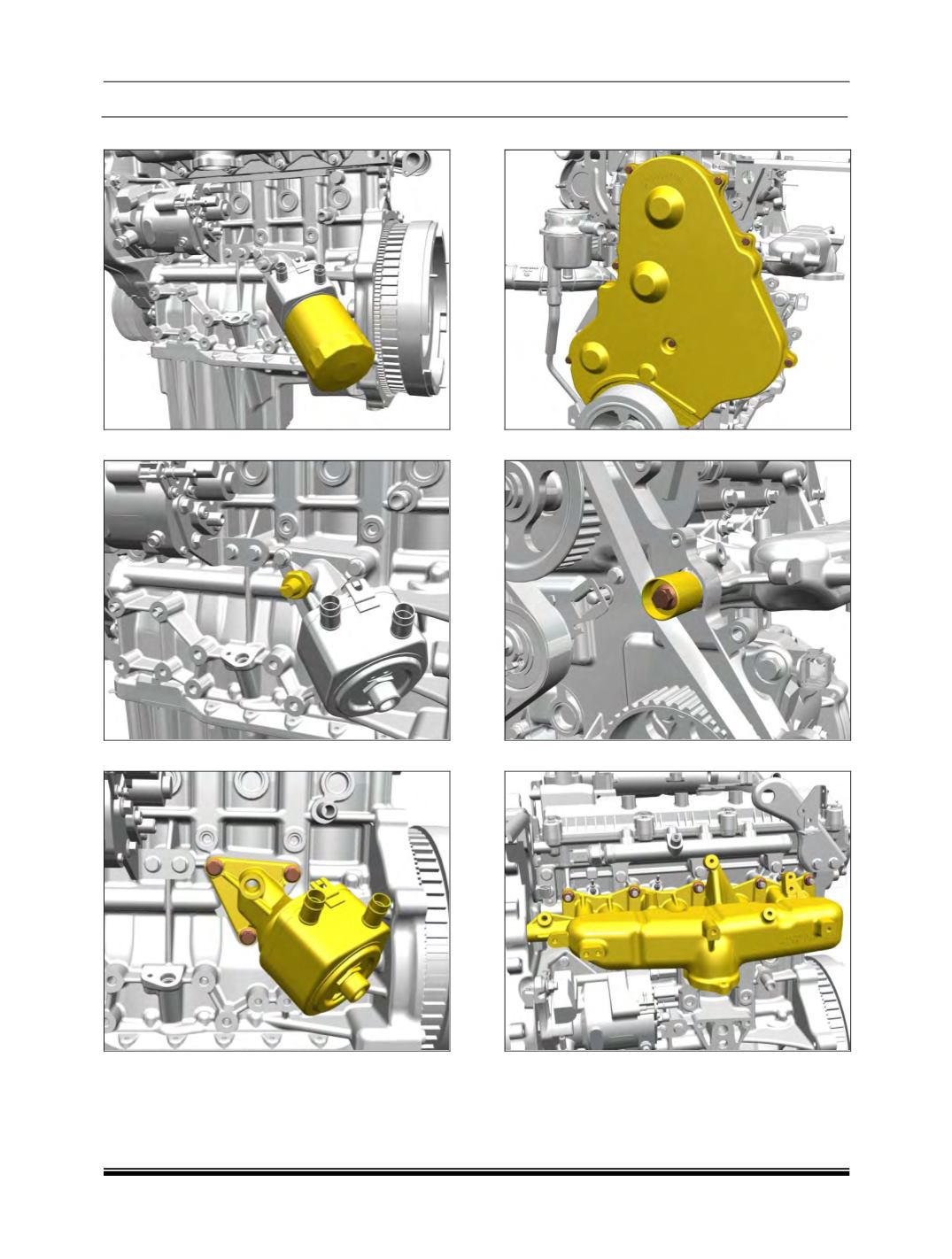

21. Remove the Oil filter using special tool.

22. Remove the Oil Pressure Switch.

23. Remove Oil Cooler with adaptor.

24. Remove Timing Belt front cover.

25. Remove touch idler.

26. Remove Intake Manifold with gasket.
