REMOVAL
XT VARIANT (XT 4X4, XT 4X2,XTA 4X2):
1. Disconnect the electrical connection of window
winding controller.
2. Remove the two mounting bolts.
3. Take out the controller.
OTHER VARIANTS (
XMA 4X2, XMA 4X4, XM,
XE):
1. Disconnect the electrical connection of window
winding controller.
2. Remove the one mounting bolt.
3. Take out the controller.
REFITMENT:
1. Locate the window winding controller on the
locator.

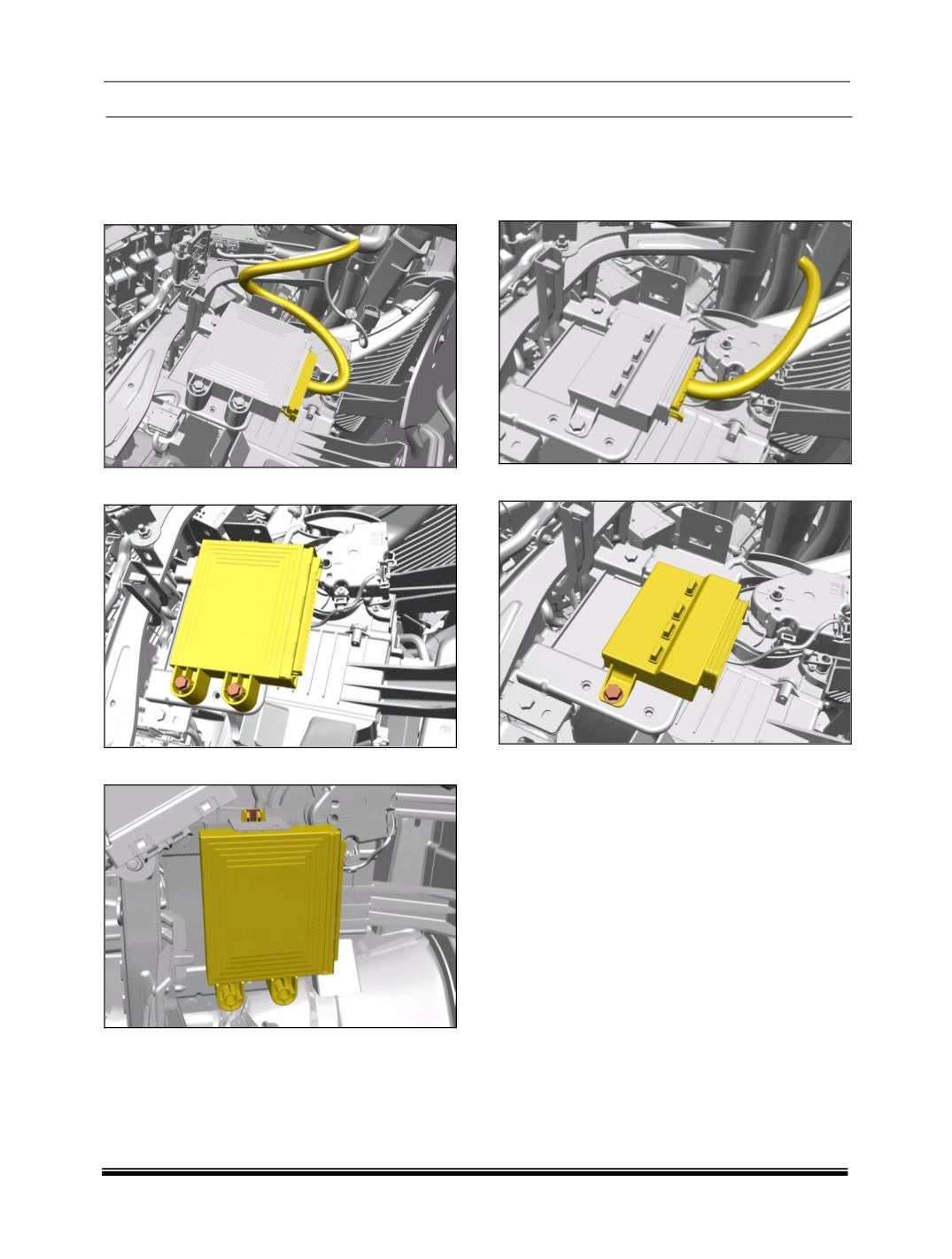

(Refer above given exploded view of
window winding controller while fitment)
2. Assemble Window winding controller on
mounting bracket tightening torque for bolt 0.6
Kgfm and tighten the two mounting bolts.
3.
Connect the electrical connection.
