TIAGO

TIAGO AMT Gasoline

DTC Troubleshooting Guide

Version: 2.0

Date: 06-06-2016

Author: Sathi/Anupama

Page: 336 of 424

TATA MOTORS Ltd.

This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

Circuit Schematic Diagram:

Component Location & Image:-

Connector Location: -

1) Inter-harness connector is In Engine Compartment, below battery and 2) TCU connector is below Glove box.

Connector View & Information: -

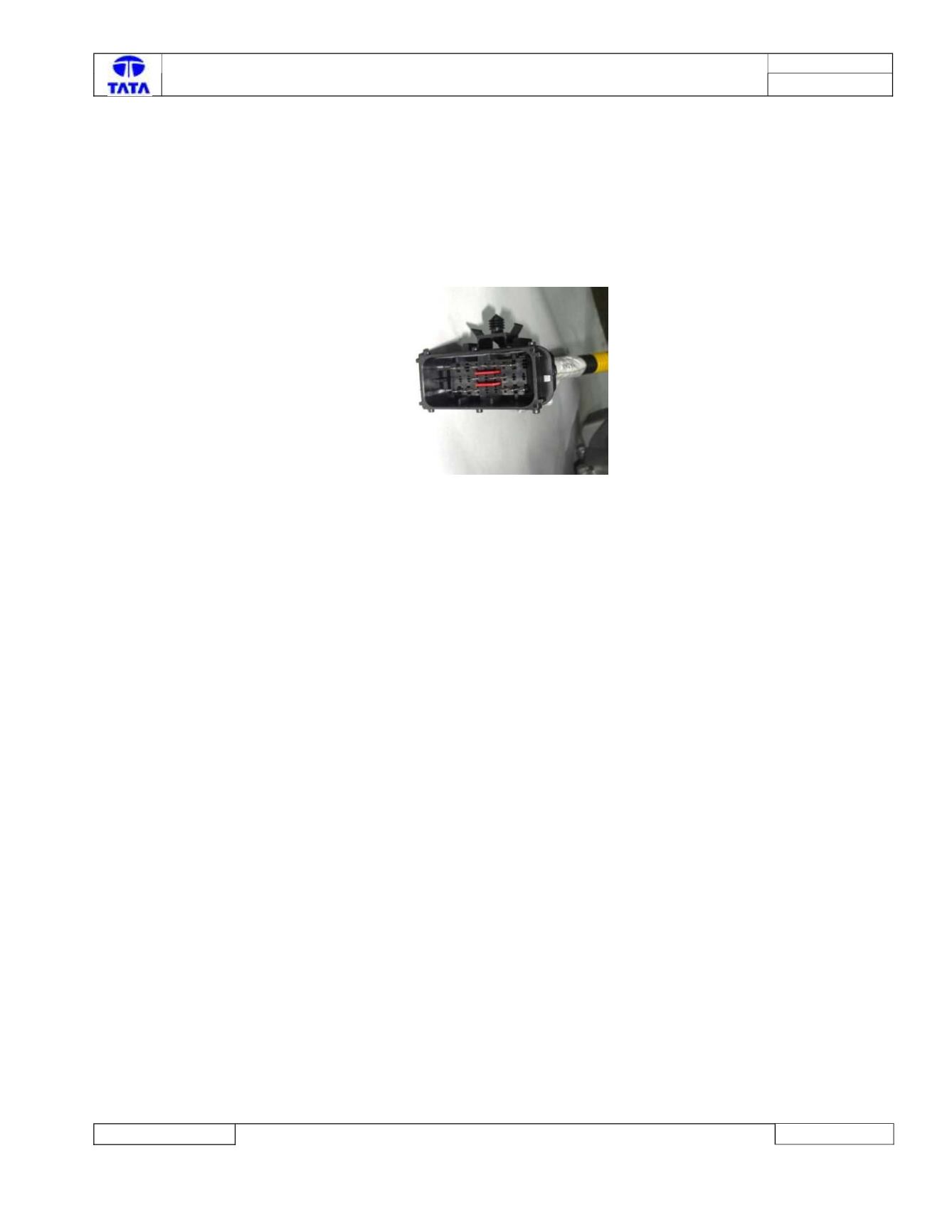

Inter wiring harness connector of AMT KIT

Inspection Method: -
