Replace parts in following order and re-

verify:

If the pump failed to turn ON:

4> Replace the Pump relay

5> Replace the TCU

6> Replace the Kit

If the pump turns ON but no Pressure build

up:

5> Check Kit oil, refill if necessary

6> Check for oil leakage / damage to

hydraulic pipes.

7> Replace the TCU

8> Replace the Kit

Recheck the above steps

the following points by referring TCU parameters using TML diagnostic tool

before handing over to customer.

Drive the vehicle through all gears in both Automatic and Manual modes and ensure no DTC is active and

Transmission Fault Lamp is OFF.

stays at last read value

before handing over vehicle to the customer.

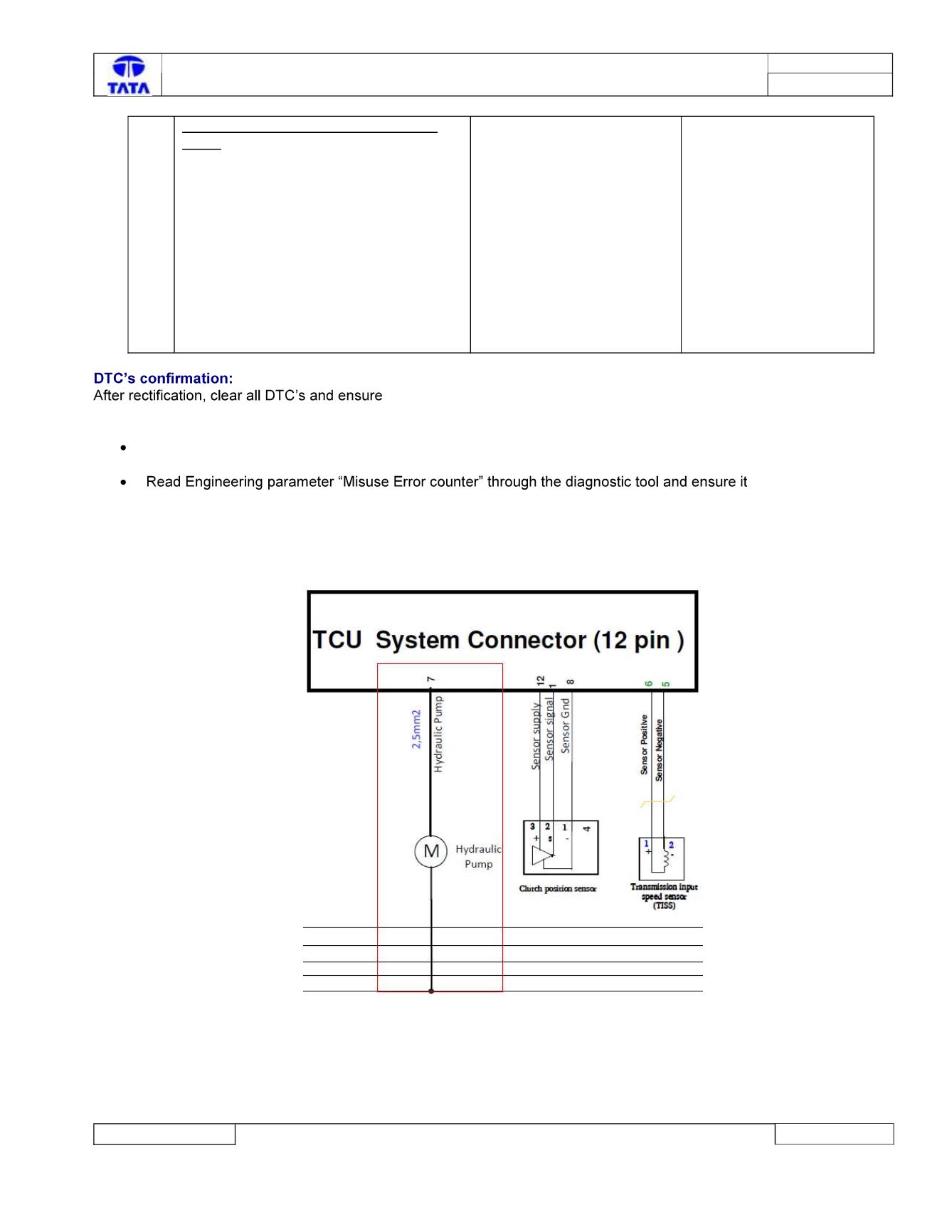

Circuit Schematic Diagram:
