Are gears engaging and disengaging freely

and grid learning is successfully executed?

2>Gearbox

3>Entire Transmission

the following points by referring TCU parameters using TML diagnostic tool

before handing over to customer.

Drive the vehicle through all gears in both Automatic and Manual modes

Ensure no DTC is active and Transmission Fault Lamp is OFF.

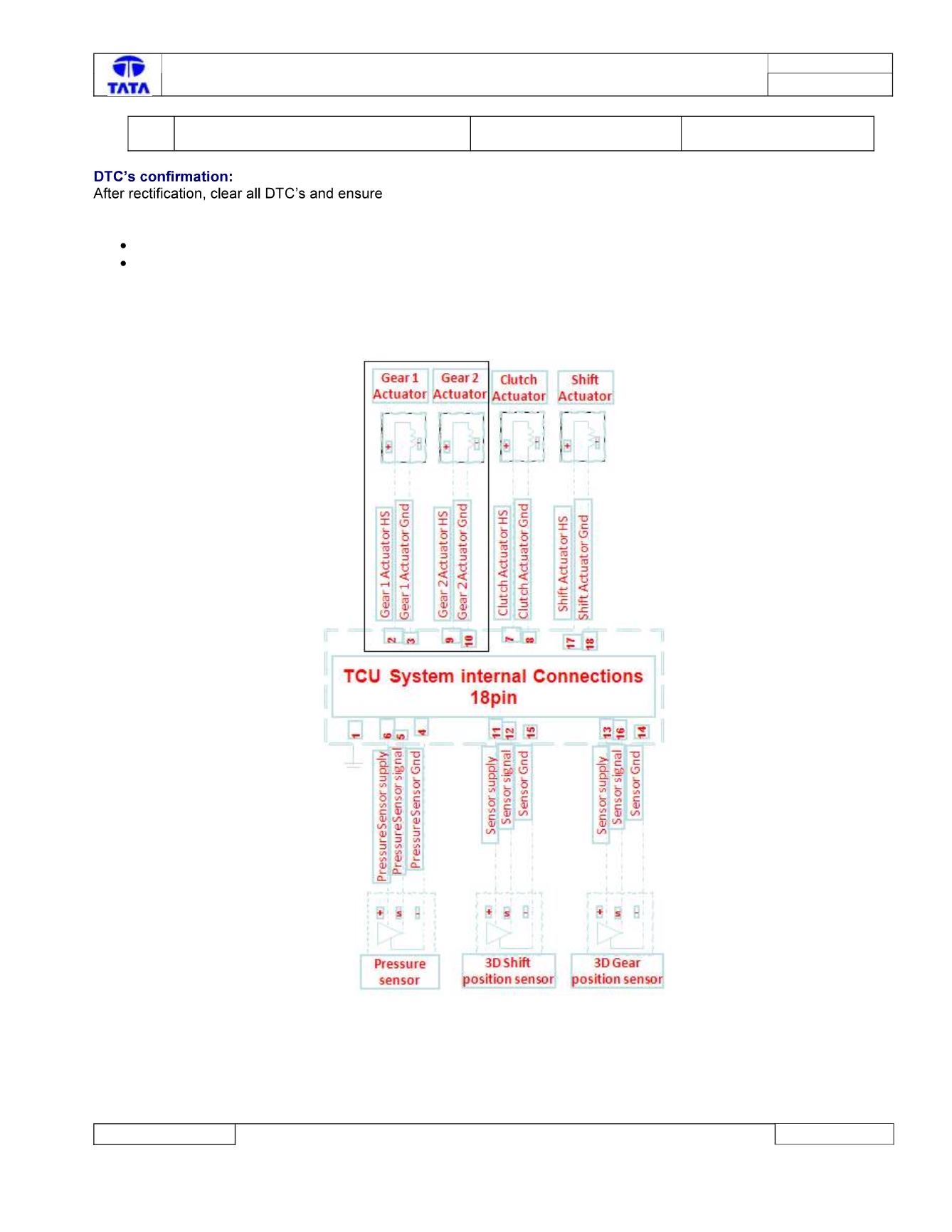

Circuit Schematic Diagram:

Component Location & Image:-
