TIAGO AMT Gasoline
DTC Troubleshooting Guide
Version: 2.0
Date: 06-06-2016
Author: Sathi/Anupama
Page: 138 of 424
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Component Location & Image:-
NA

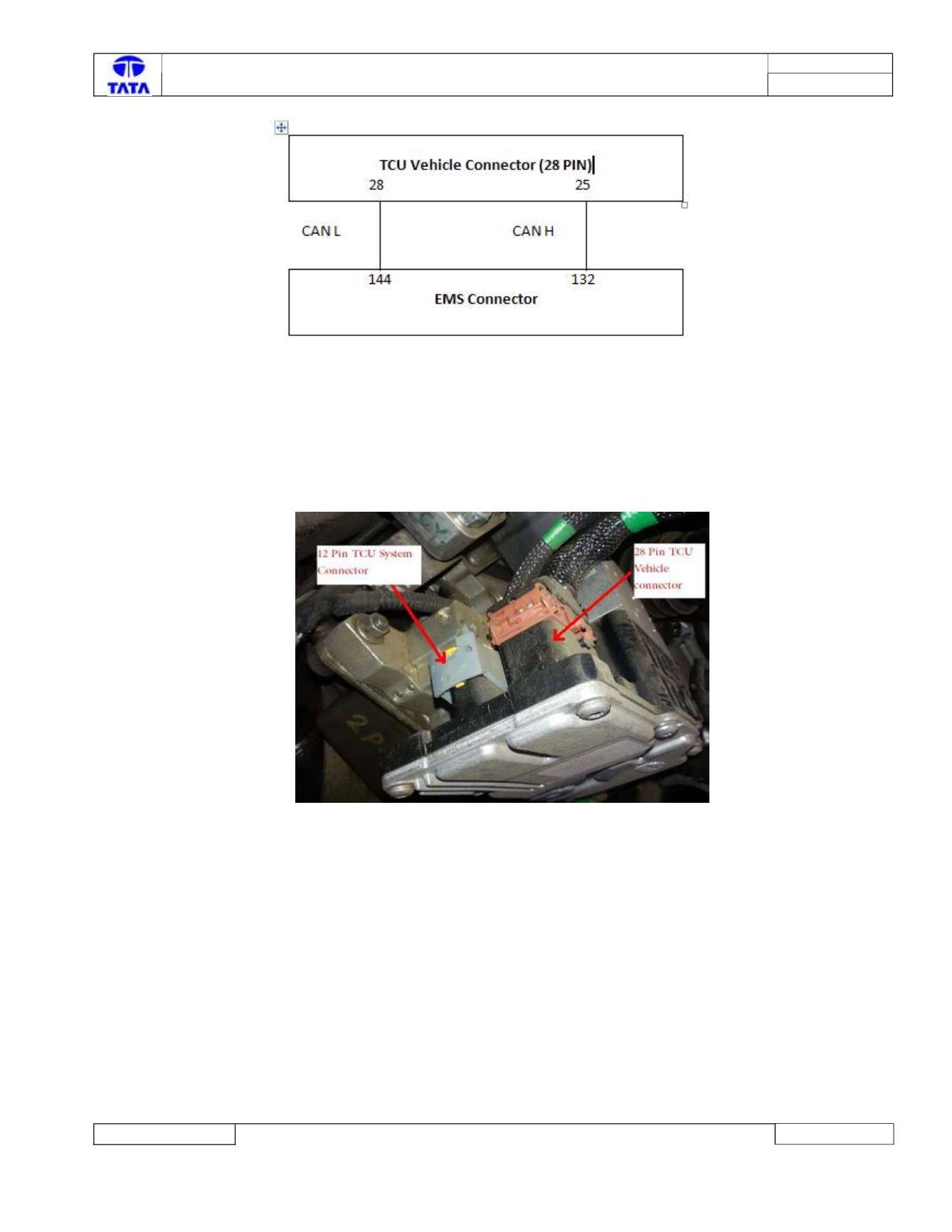

Connector Location: -
TCU system connector (12 Pin) and TCU vehicle Connector (28 Pin) are in Engine compartment, near the AMT kit.
Connector View & Information: -
