After key and engine ON with TML TCU diagnostic tool connected, monitor the engine speed and confirm that it

represents the idle speed of the engine.

Drive the vehicle through all gears in both Automatic and Manual modes

Ensure no DTC is active and Transmission Fault Lamp is OFF.

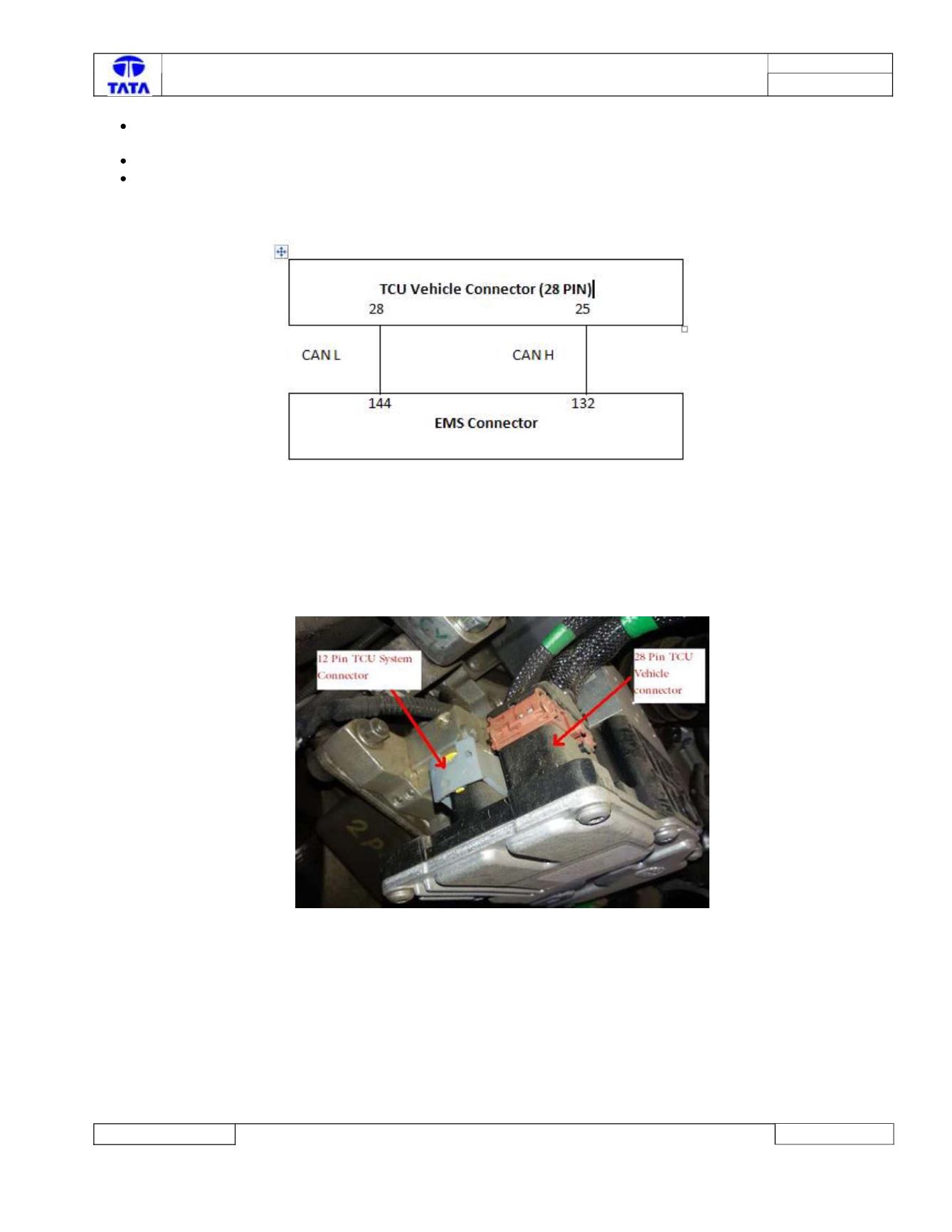

Circuit Schematic Diagram:

Component Location & Image:-

Connector Location: -

TCU system connector (12 Pin) and TCU vehicle Connector (28 Pin) are in Engine compartment, near the AMT kit.
