TIAGO

TA65 Star AMT

10.

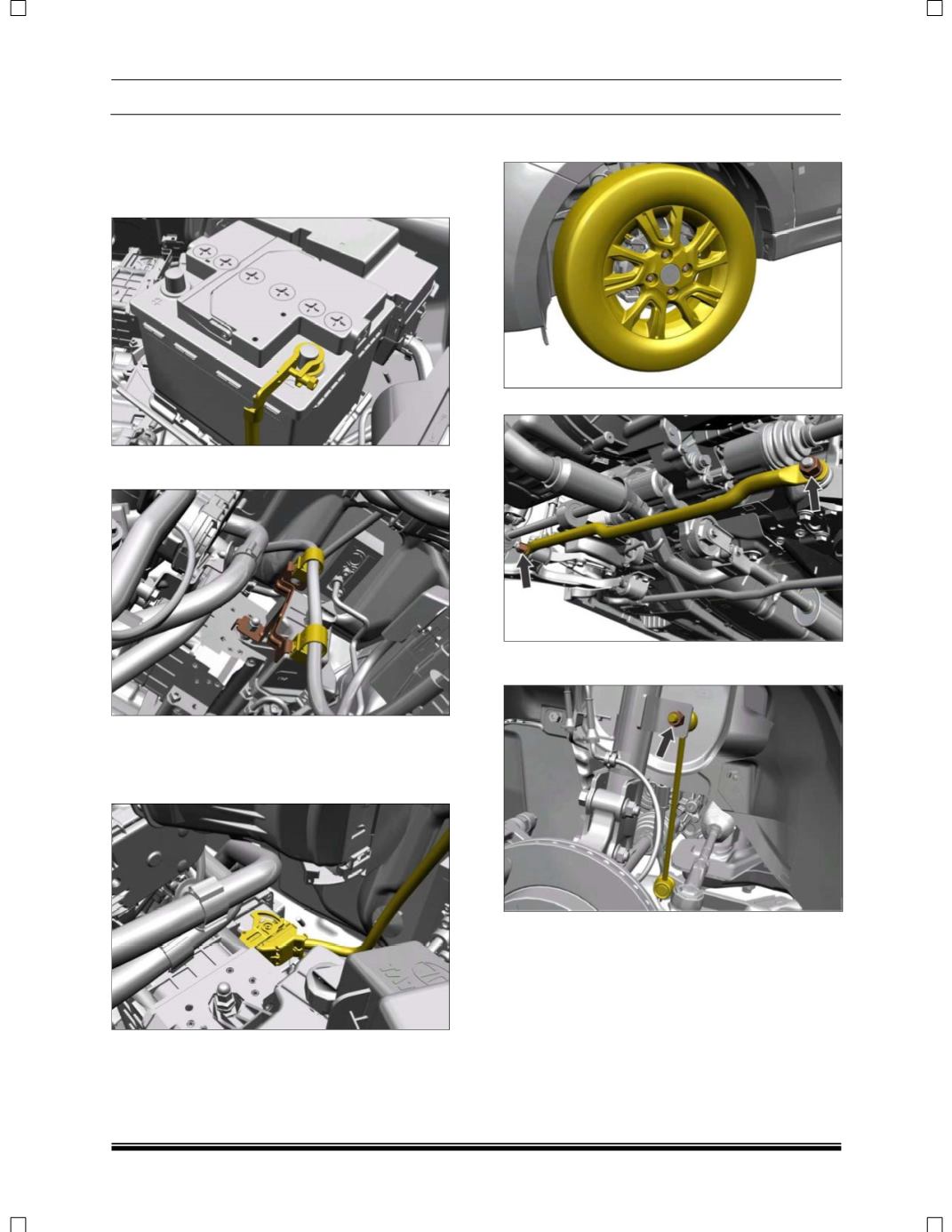

REMOVAL OF TRANSAXLE FROM

VEHICLE:

Position the vehicle properly on the two post lift

1. Remove Battery terminal as shown.

2. Disconnect all electrical connection & take out

Battery.

3. Remove Mtg.screws & take out Battery Tray

by loosening Fuse Box.

4. Remove Translink cable or AMT coupler as

shown below

5. Remove Battery cable from Bracket.

6. Position the vehicle properly on the two post

lift and remove Tyres as shown

7. Remove Tie Rod on LH & RH side.

8. Remove Suspension Mtg. vertical link (antiroll

bar) from Strut on LH & RH side.
