TRANSMISSION

16

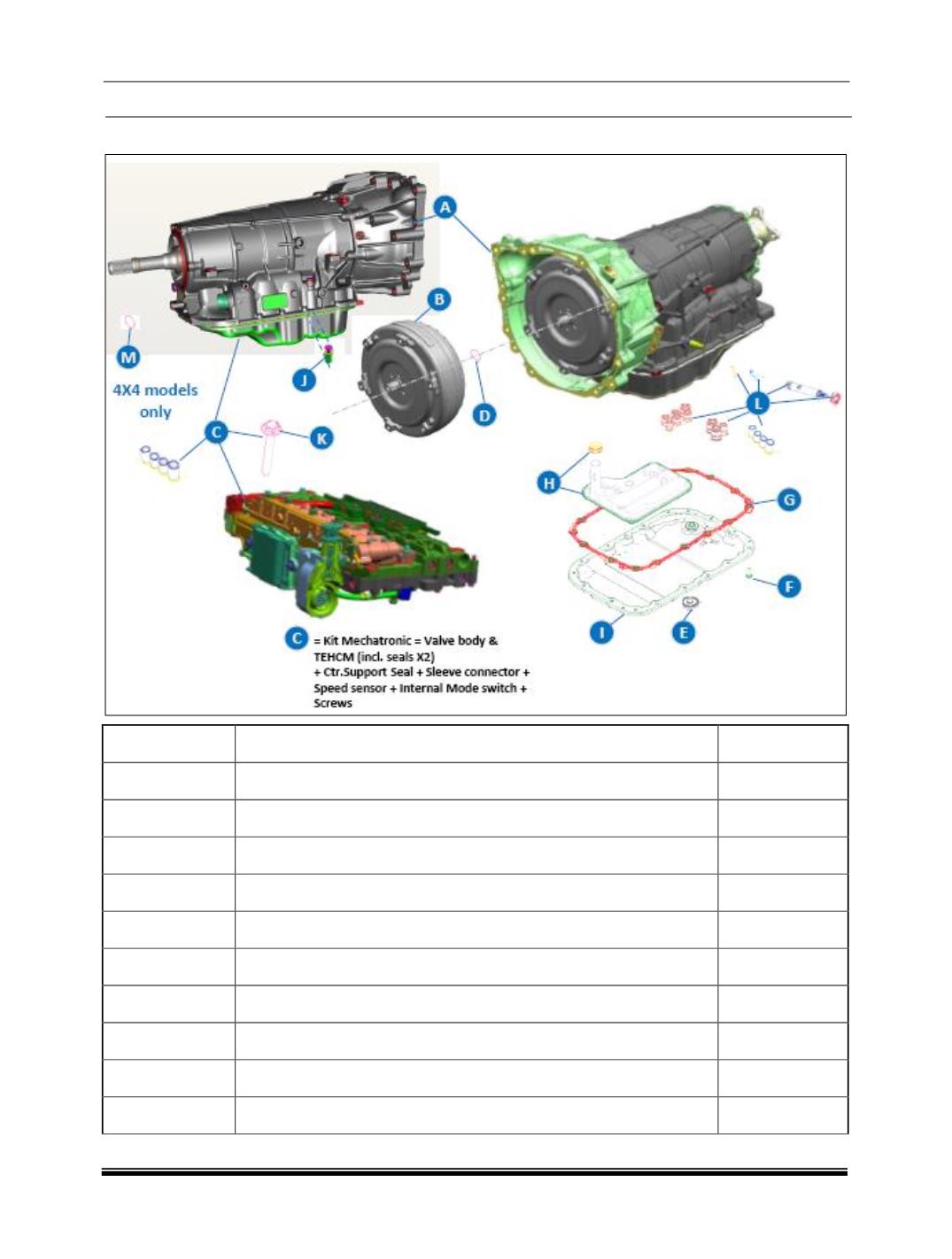

Exploded View of Transmission:

ILLUSTRATION

PART NAME.

QTY / KIT

A

OEM SEED TRANSMISSION 4x2 4BXA

1

A

OEM SEED TRANSMISSION 4x4 4BZA

1

B

CONVERTER ASM-TORQ

1

C

MECHATRONIC KIT

1

D

SEAL-TURB SHF (O RING)

1

E

PLUG ASM-A/TRNS FLUID PAN DRN

1

F

BOLT/SCREW-A/TRNS FLUID PAN

17

G

GASKET-A/TRNS FLUID PAN

1

H

FILTER ASM-A/TRNS FLUID

1

I

PAN ASM-A/TRNS FLUID

1
