GEAR BOX
19

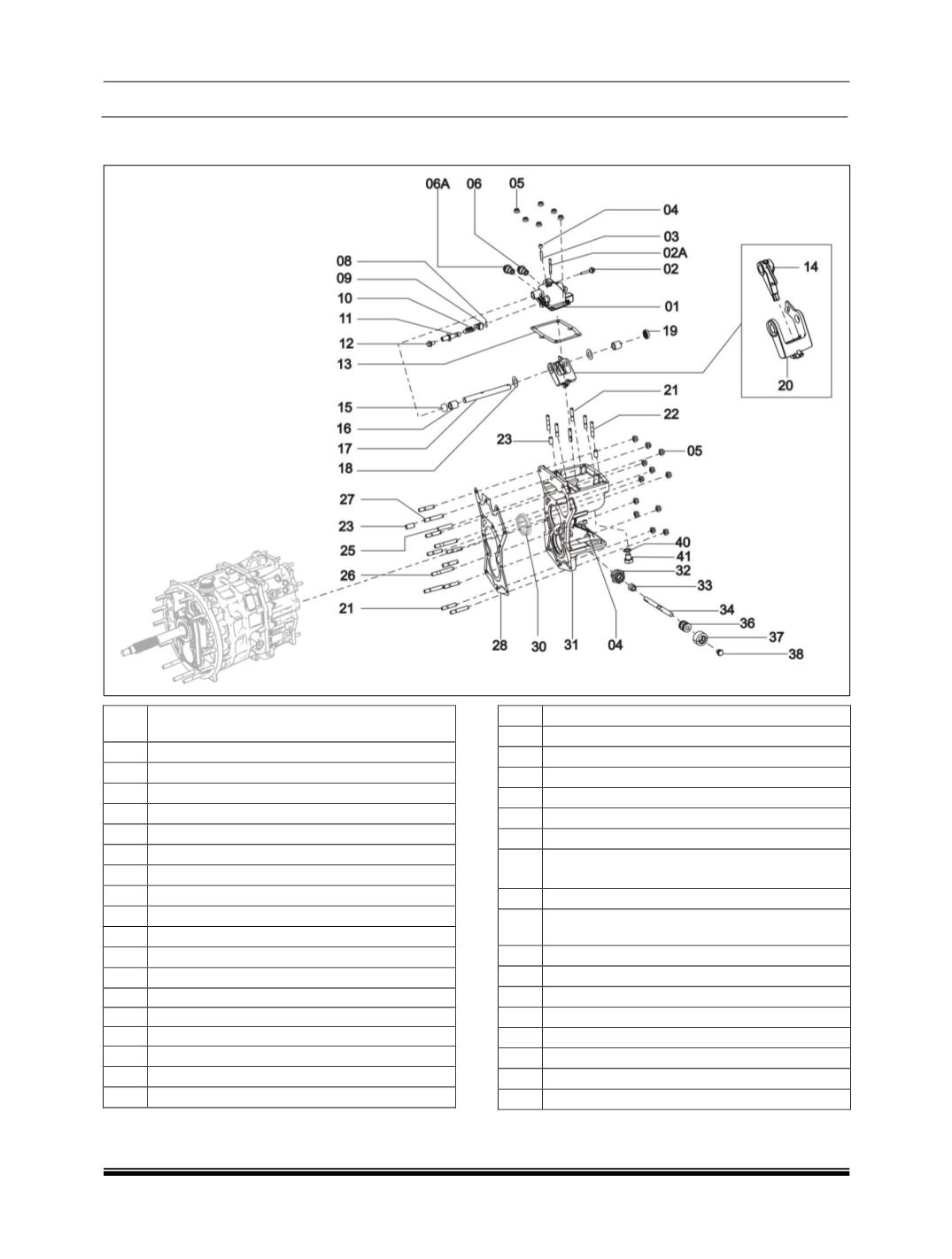

REAR CASING ASSEMBLY (
4X2
)
SR
NO
DESRIPTION
01 Top cover
02 Pin cross gate limiter
02A Stud
03 Spiral pin
(6x28)
04 Plug mc 10x1
05 Hex fl nut am8
06 Captive detent
(Selection)
06A Captive detent
(Shifter)
08 Pin
(Assembly of inhibitor)
09 Reverse blocker
10 Reverse blocker spring
(Shifter assembly)
11 Reverse blocker shaft
12 Hex fl screw M8x14
13 Gasket
14 Selector finger
15 Core plug
(Assembly top cover)
16 Linear bearing
(Selector shifter shaft)
17 Selector shaft
(Shifter assembly)
18 Washer shim
19 Double lip oil seal
20 Swing blocker
21 Stud
22 Stud
23 Dowel sleeve
25 Stud
26
Stud
(Assembly gear box housing front &
rear)
27 Stud transportation bracket mounting
28
Gasket
(Between rear housing and adap-
tor housing)
30 Oil seal main shaft
31 Rear cover
32 Adapter
33 Rotary shaft oil seal
34 Shaft
(Speedometer drive )
36 Inset for pinion
(Speedometer drive)
37 Pinion speedometer drive.
38 Plug
(Speedo shaft)
