CLUTCH
18

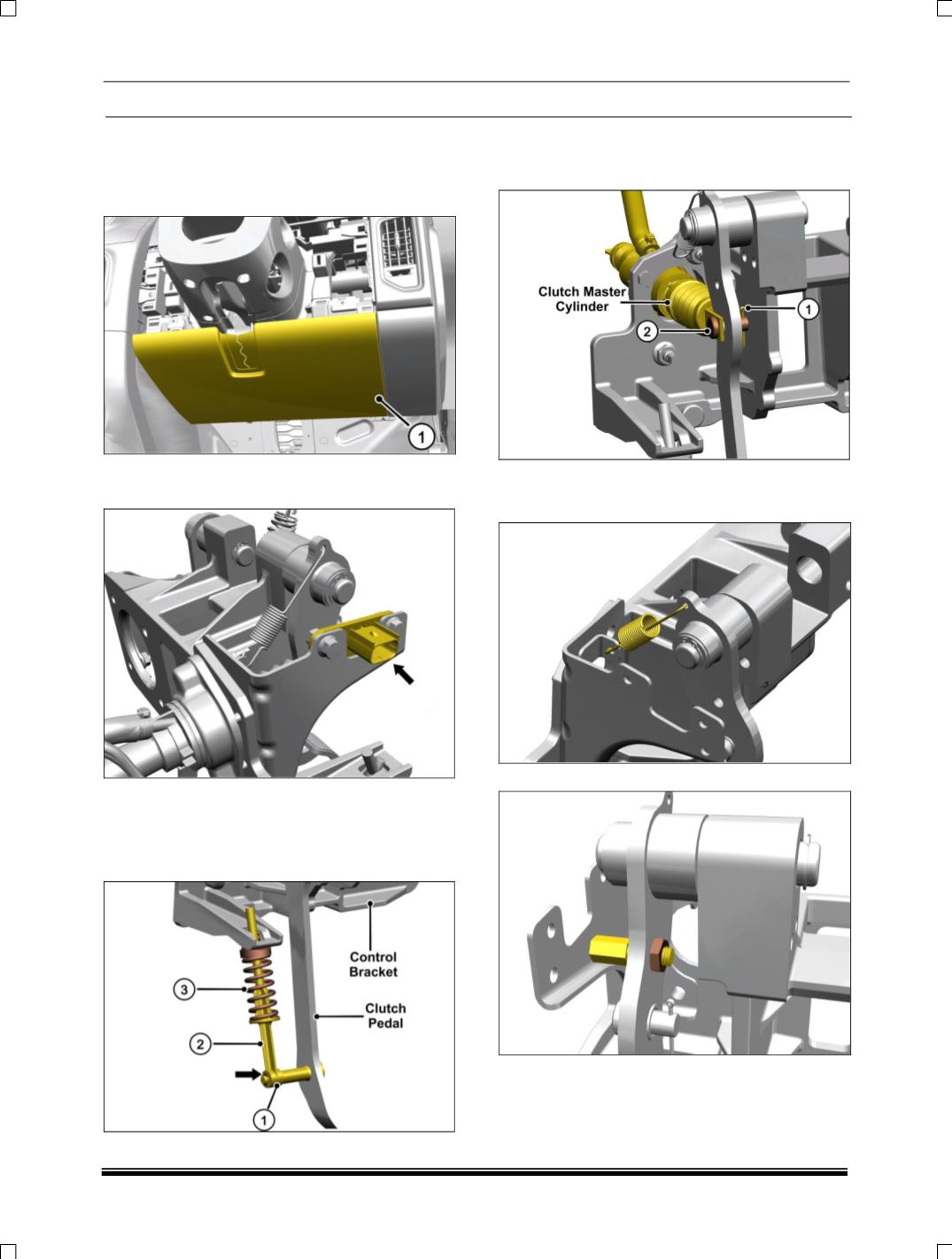

A. CLUTCH PEDAL ASSEMBLY REMOVAL
1. Disconnect battery connection.
2. Pry out the lower cover
(1)
of steering column.
3. Disconnect the electrical connector from the
clutch switch
.
4. Remove the circlip from the pedal pin
(1)
,
pressing the clutch pedal downwards remove
the stay rod from the pedal pin and then
remove the stay rod
(2)
with assistance spring
(3)
and pivot pin from the mounting bracket.
5. Remove the spit pin
(1)
and free the clutch
pedal from the clutch master cylinder by
removing the clevis pin
(2)
.
6. Remove the clutch pedal return spring which is
mounted on clutch return spring mounting
bracket.
7. Remove the clutch sensor.
8. Setting of gap to be checked after fitment.
