ANTI-CRANKING FUNCTION: -

The anti-cranking function is an additional function

of EMS ECU. Anti-cranking function provides the

following safety conditions: -

1. Automatic disengagement of starter motor

once the engine is started to avoid over-

running of starter motor

2. Not allowing starter motor to engage when

engine is running

3. No starter motor function when vehicle is in

running condition.

4. Not allowing starter motor to crank the engine

under low battery condition (below 6.5V) to

avoid further draining of battery.

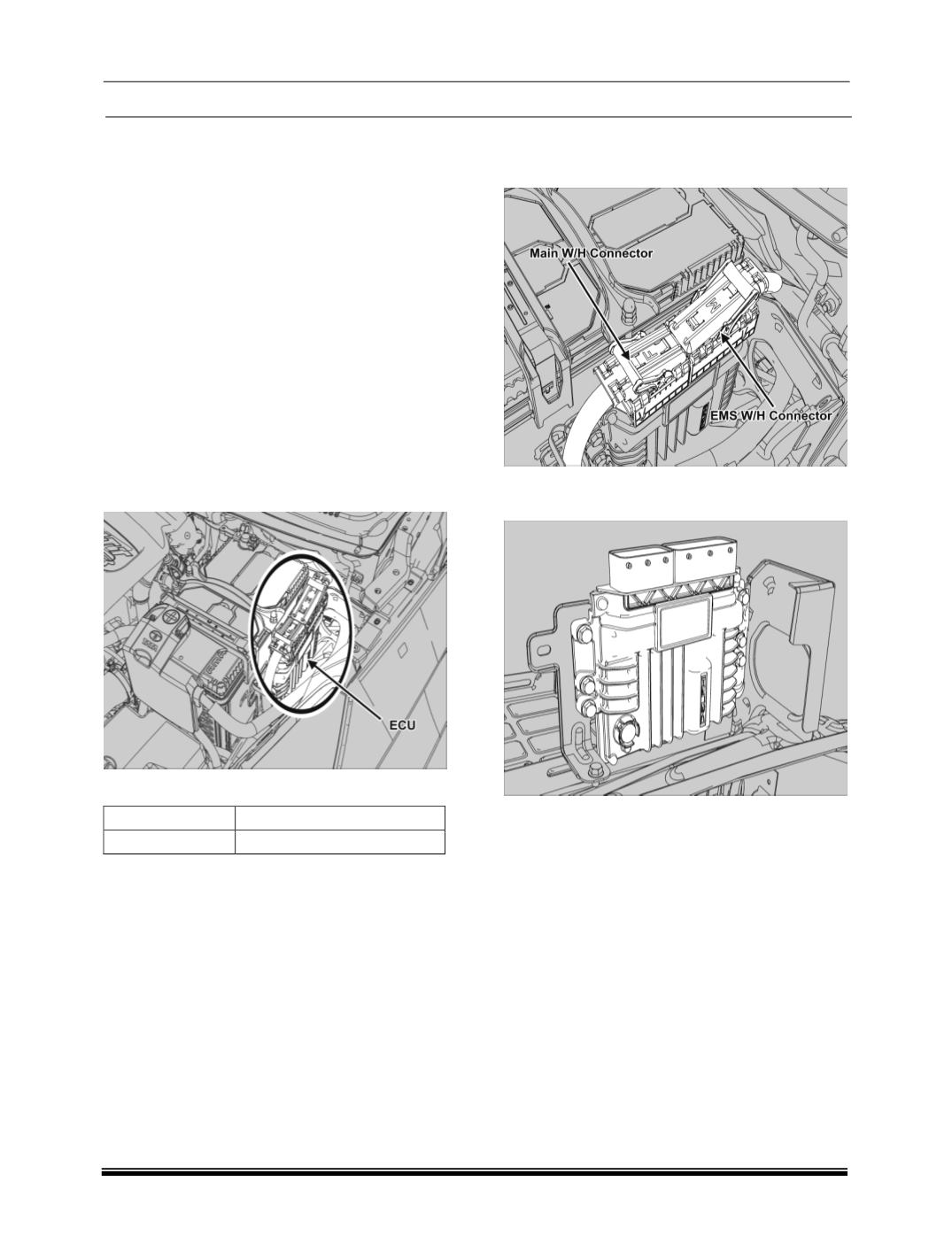

LOCATION

It is fitted in Engine compartment on battery bottom

support, besides the battery.

TIGHTENING TORQUE TABLE

DESCRIPTION

TORQUE

Hex Bolt M6 x10 0.95 Kgfm

REMOVAL

1.Open the bonnet and disconnect the battery neg-

ative terminal.

2.Remove ECU rubber cover.

3.Disconnect the both connectors of EMS. (

Remove

EMS wiring harness connector first then main wir-

ing harness connector

3. Remove the mounting screws and take out the

ECU.

FITMENT

1. Locate the ECU on mounting brackets and fit the

four mounting bolts.

Tightening torque for Bolts - 0.95 Kgfm.

2. Connect the electrical connections (

Main W/H

and EMS W/H

3. Connect the battery negative terminal & close the

bonnet.
