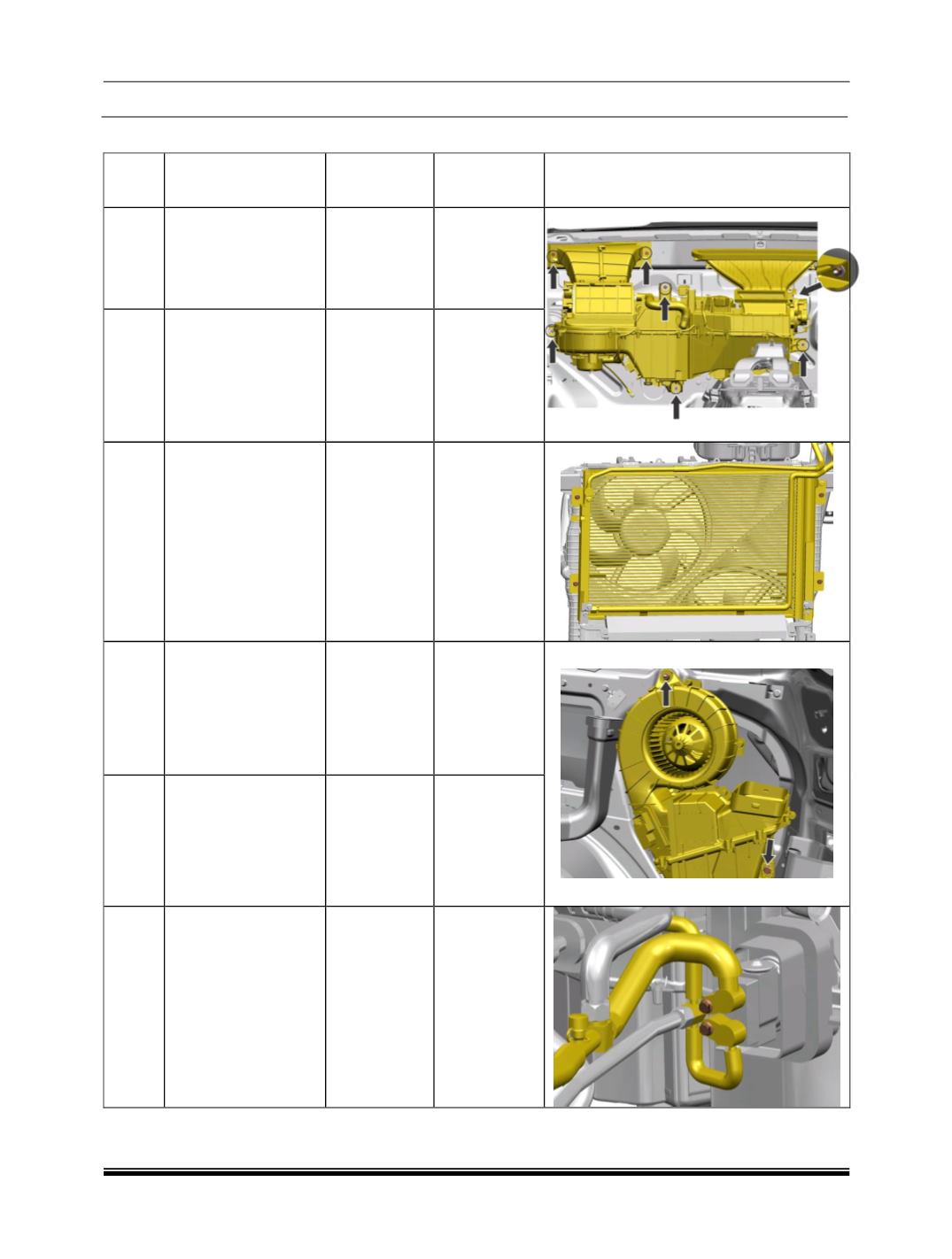

23.2 TIGHTENING TORQUES
SR NO.
DESCRIPTION
FASTENER
TIGHTENING
TORQUE
(Kg-m)
LOCATION
1A
Front HVAC
mounting
M6 X 25 and
M6 X 20
0.6 - 0.8
1B
Front HVAC mounting
M6
0.6 - 0.8
2
Condenser mounting
on radiator
M6 X 16
0.6 – 0.8
3A
Rear AC mounting
M6 X 14
0.6 – 0.8
3B
Rear AC mounting
AM6
0.6 – 0.8
4
Refrigerant lines
on Front TXV
M8 X 35
1.2 - 1.5
