FUSE DETAILS:
FUSE NO FUNCTION
FUSE DESCRIPTION
COLOUR
F1
STARTER MOTOR
MEGAVAL 500A
BROWN
F2
ALTERNATOR
MEGAVAL 150A
ORANGE
F3
COOLING FAN I
MIDIVAL 30A
ORANGE
F4
ABS / ESP
MIDIVAL 40A
GREEN
F6
IGNITION
MIDIVAL 60A
YELLOW
F7
BATTERY COCKPIT
MIDIVAL 60A
YELLOW
2. ENGINE FUSE & RELAY BOX (
MDU
):

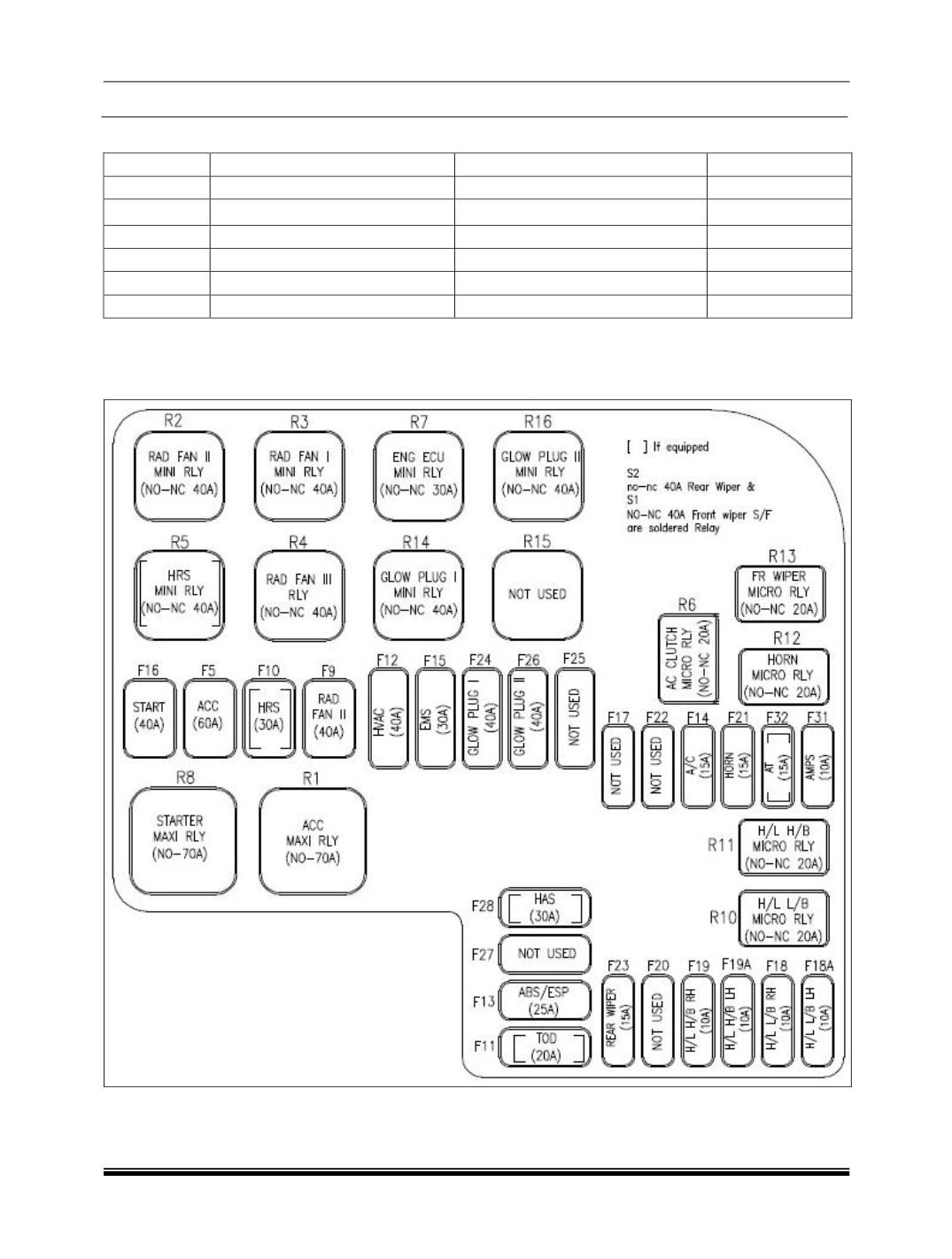

Main distribution unit is fitted in engine compartment. It consists of fuses & relays. For details refer top view
of MDU.
