Step 7

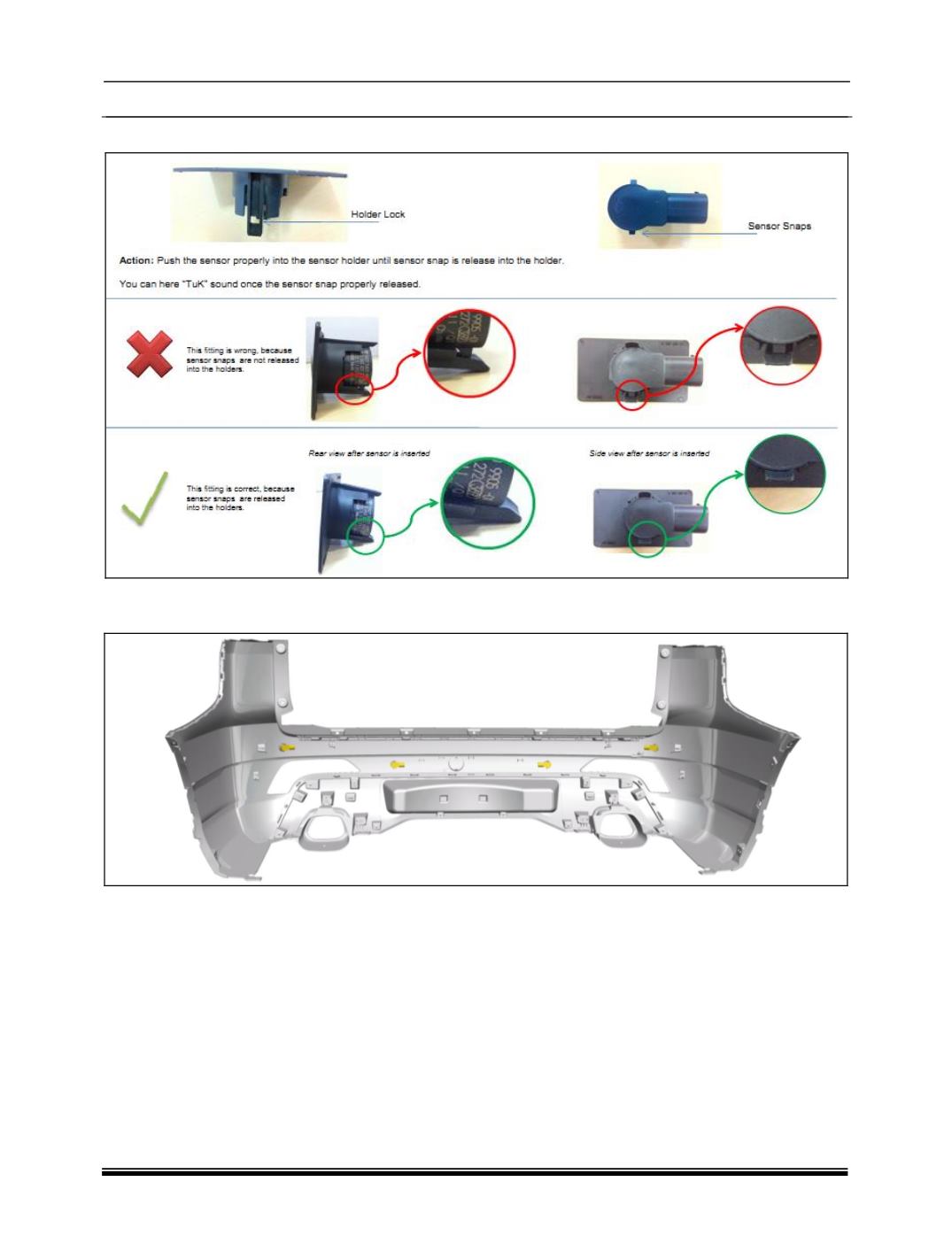

: After step 6, please ensure sensor is fitted into the holder or not. See below image.

Step 8:

Check wiring harness is fitted properly and the view of rear bumper after proper installation of

sensors as below:

Step 9:

Activate park assist system, and check in Head Unit, whether sensor able to detect or not. This is to

ensure; you have done proper fitment.

Step 10:

In music system if HMI shows all sensors areas screen, it means, sensor is connected properly.

Then Go to Step 11.

If “critical fault” appears on the screen, Check DTCs again if that particular sensor showing faulty or not. If

Yes, do the re fitment. Else replace with other another new sensor.

Note:

1. While assembling, if sensor falls on concrete surface from above 1-meter height, do not use that sensor

for fitment

2. Due to any damage if holder comes out of the bumper, then replace with new bumper.

3. While assembling, if any ECU is dropped from 1 Meter, then ECU is not supposed to use for fitment.
