ELECTRICAL
126

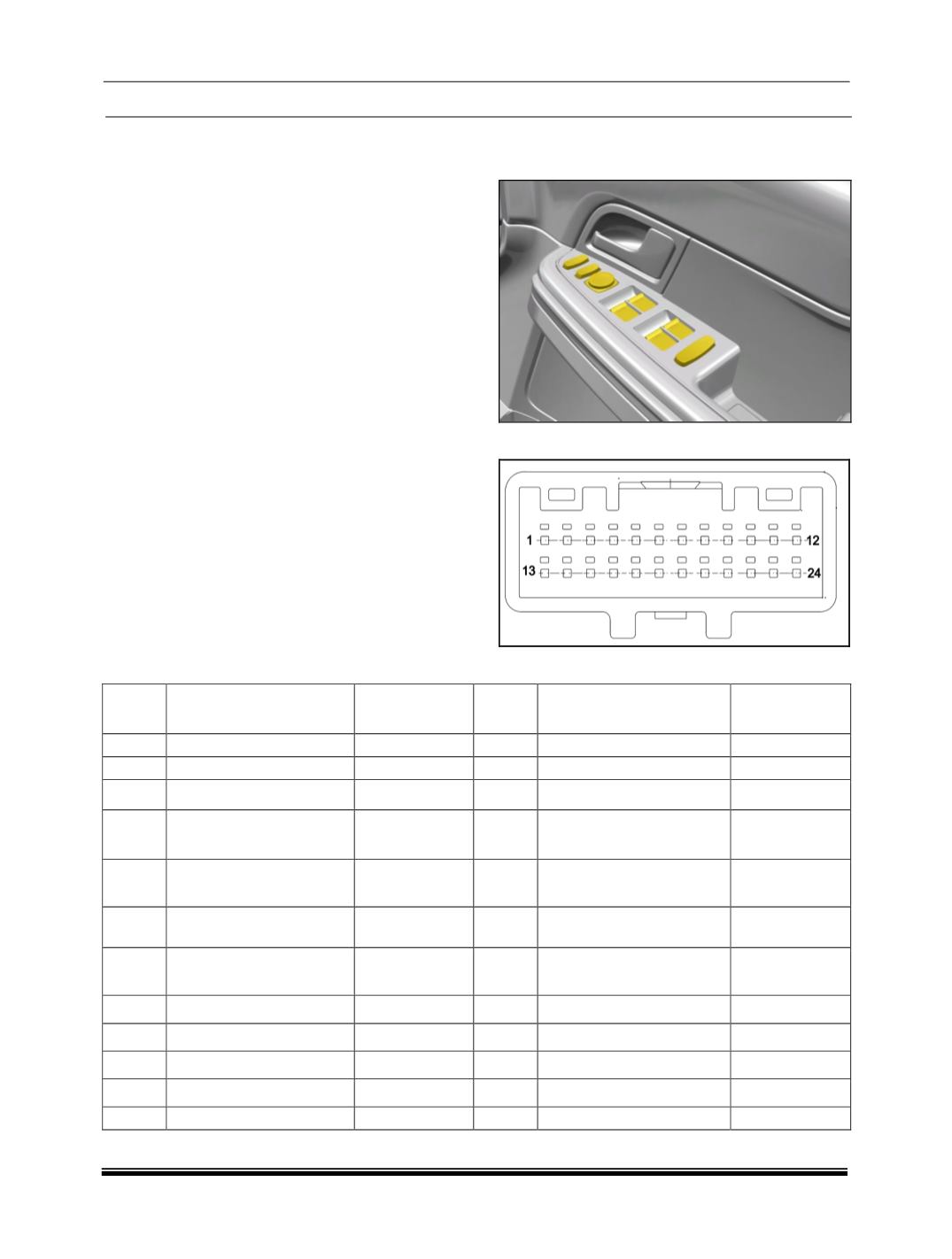

POWER MIRROR SWITCH
For adjusting the mirror, first select the RH or LH
side mirror using selector switch. Then push the
appropriate edge of adjustment switch to move the
mirror left, right, up& down.
MIRROR FOLD SWITCH:
Door mirrors are folded by using fold switch next to
power mirror switch, which enables you to park the
vehicle in limited parking space. Press the mirror
fold switch to fold up the both outside mirrors
simultaneously. To foldout press the switch again.
LOCATION:
These are located on door trim.
CONNECTOR DETAILS
:
PINOUT DETAILS:
SR.NO.
DESCRIPTION
W/H SIDE
COLOR
SR.NO.
DESCRIPTION
W/H SIDE
COLOR
1
Driver Door Down
(DD)
Green / Yellow
13
Rear LH Down
(RLD)
Green / White
2
Driver Door UP
(DU)
Yellow / Brown
14
Rear LH UP
(RLU)
Yellow / Black
3
Driver Door Auto Down
Blue / White
15
Rear LH Auto Down
Blue / Brown
4
Earth
Brown
16
Mirror movement
Horizontal right (HR)
Violet / Green
5
Ignition through 5A
fuse(B)
Grey / Red
17
Mirror movement vertical
right (VR)
Violet / White
6
+ve parking
(P)
Pink / Blue
18
Mirror movement vertical
left (VL)
Violet / Red
7
Co-driver Down
(PD)
Green / Black
19
Mirror movement
Horizontal Left (HL)
Violet / Blue
8
Co-driver UP
(PU)
Yellow / White
20
M+
Violet / Black
9
Co-driver Auto Down
Blue / Green
21
OVRM Fold
White / Blue
10
Rear RH UP
(RRU)
Yellow / Green
22
OVRM Set
Pink / Black
11
Rear RH Down
(RRD)
Green / Blue
23
Child lock
Black / White
12
Rear RH Auto Down
Blue / Red
24
Ground
Grey
