HEXA

ELECTRICAL

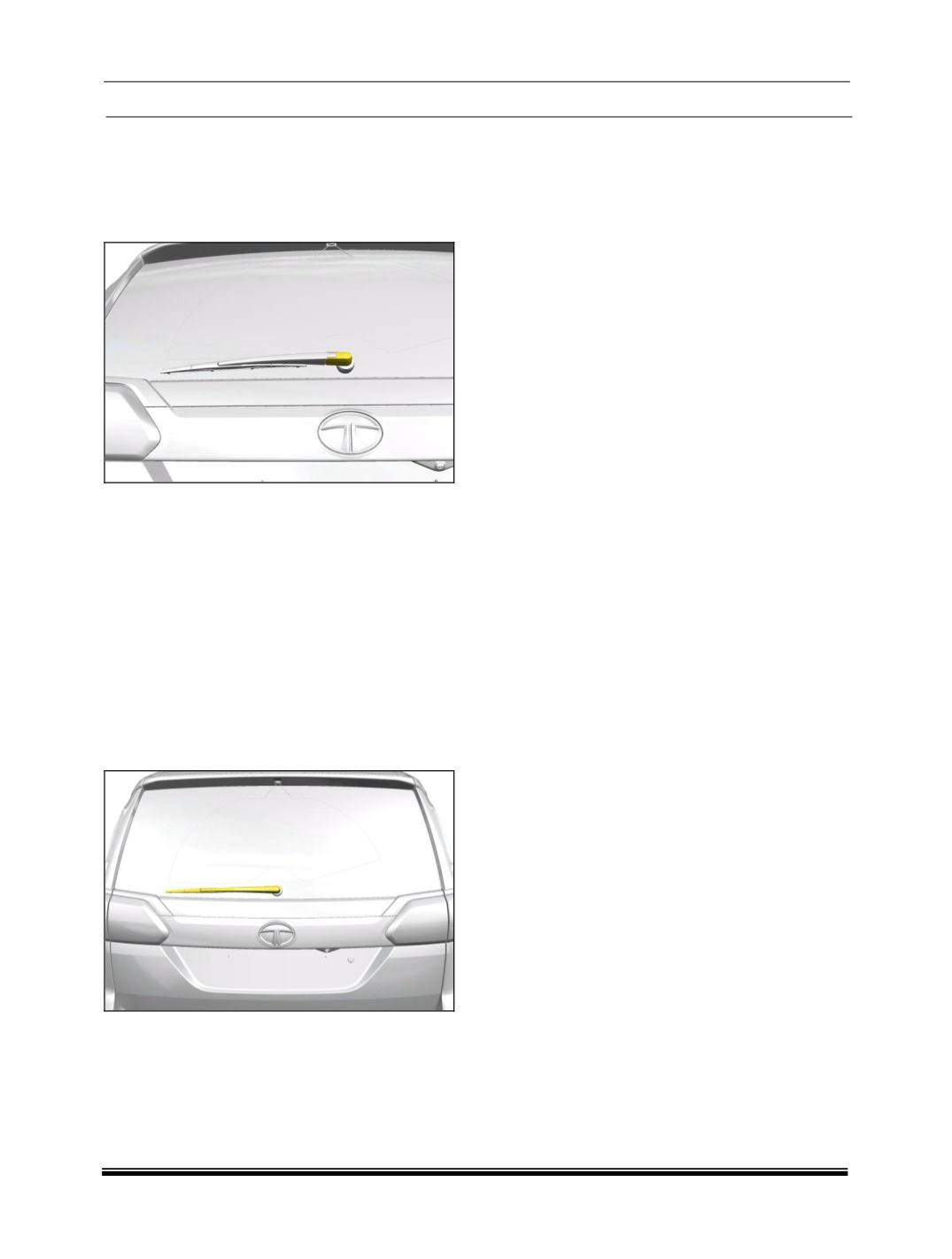

8.8.5 REAR WIPER ARM and BLADE

REMOVAL:

1. Lift the wiper arm cover to access the wiper

arm mounting nut on wiper shaft and remove

the mounting nut.

2. Lift the wiper arm and blade assembly vertically

to take out the wiper arm easily against spring

force of wiper arm and take out the wiper arm

and blade assembly from wiper motor shaft.

INSPECTION:

Inspect wiper blade rubber for any cut. If found,

replace the wiper blade assembly.

REFITMENT:

1. Before fitting the wiper arm bring the wiper

motor to the parking position. This can be done

by switching ON the Ignition and rear wiper

motor, then switch OFF the rear wiper motor

only. As shown in the bellow figure.

NOTE:

Switch OFF the Ignition only after the motor has

stopped.

2. Insert the arm and blade assembly on wiper

motor shaft by locating it on the splines.

3. Place arm and blade assembly on parking

position.

4. Fit one mounting nut and tight with specified

torque, and push the wiper arm cover.

Tightening torque for nut- 1 Kgfm
