STEERING

30

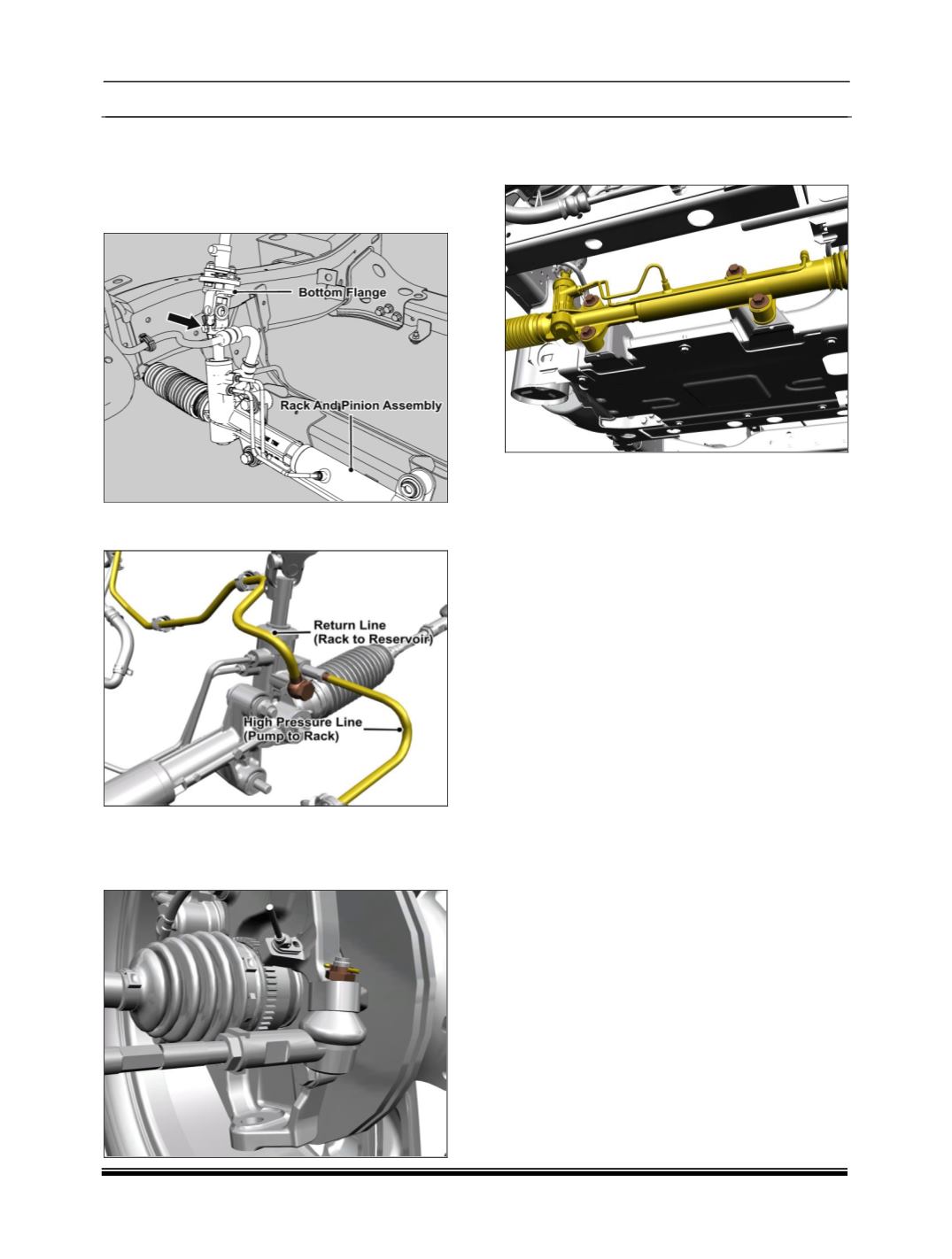

iv. RACK AND PINION ASSEMBLY :

1. Drain the power steering oil. (For procedure

refer Power Steering oil replacement.)

2. Disconnect the steering column from the rack

assembly by removing the bolt.

3. Disconnect the high pressure line (Pump to

Rack) and return line (Rack to Reservoir).

4. Disconnect the outer ball joint from the

knuckle by removing the split pin and

hexagonal thin nut. Follow the same

procedure at other end also.

5. Loosen and remove four mounting bolts and

take out the rack and pinion assembly from

the frame.

FITMENT:

For assembly follow reverse procedure of

removal.

NOTE:



For vehicles with ESP, Steering Angle Sensor

(SAS) Calibration has to be done after wheel

Alignment.
