BRAKES

28

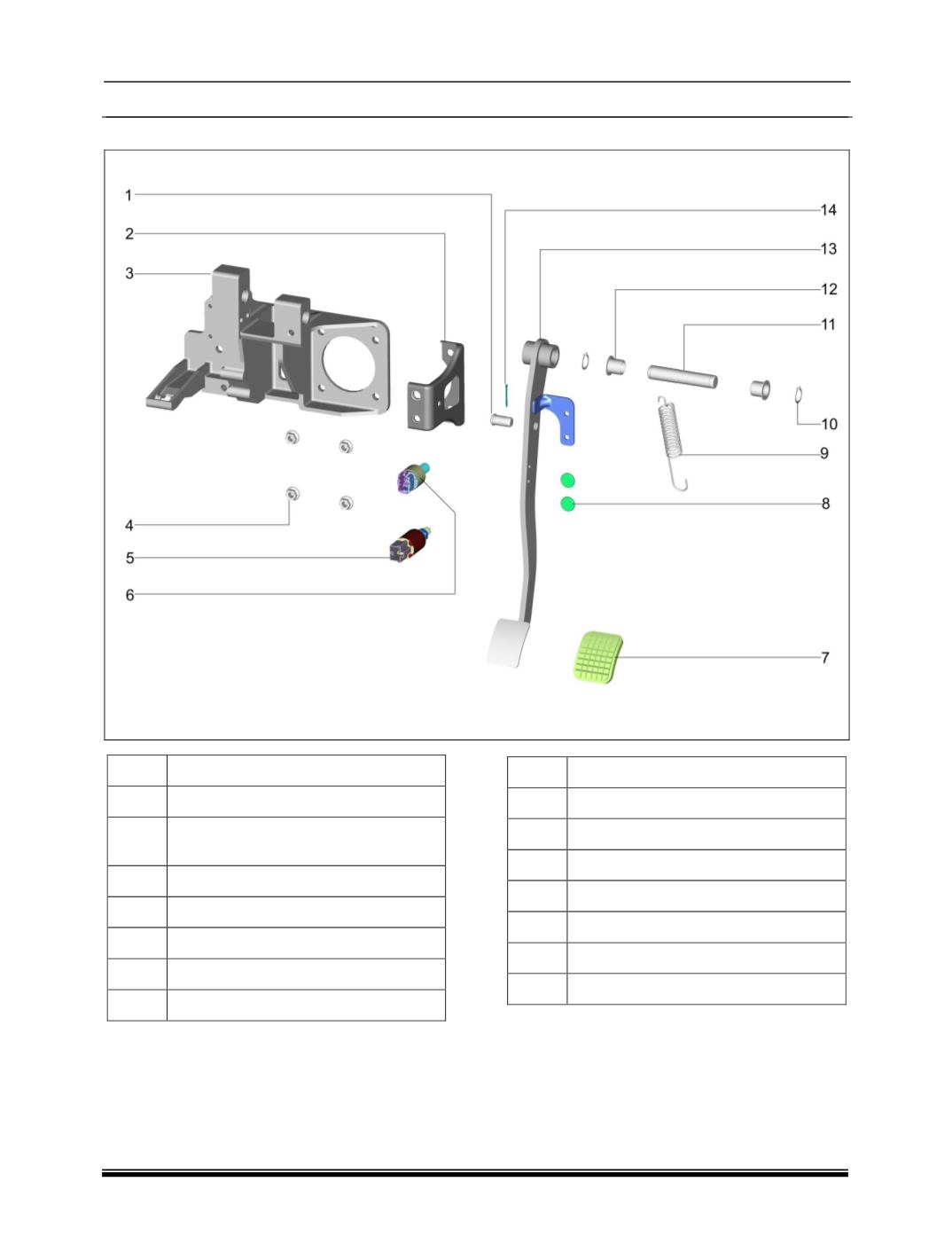

iv. BRAKE PEDAL :

Description

01

Pin (Booster)

02

Assembly Bracket Brake Light Switch

Mounting

03

Cast Control Mounting Bracket

04

Hex Flange Nut AM8

05

Brake Switch

06

Cruise Control Brake Switch

07

Rubber Cover (Pedal Plate)

Description

08

Switch Stopper

09

Return Spring (Brake Pedal)

10

External Circlip 16X1N

11

Pivot Pin

12

Pivot Bush

13

Assembly Brake Pedal Lever

14

Split Pin 2X16
