ENGINE

67

D. Cooling System :

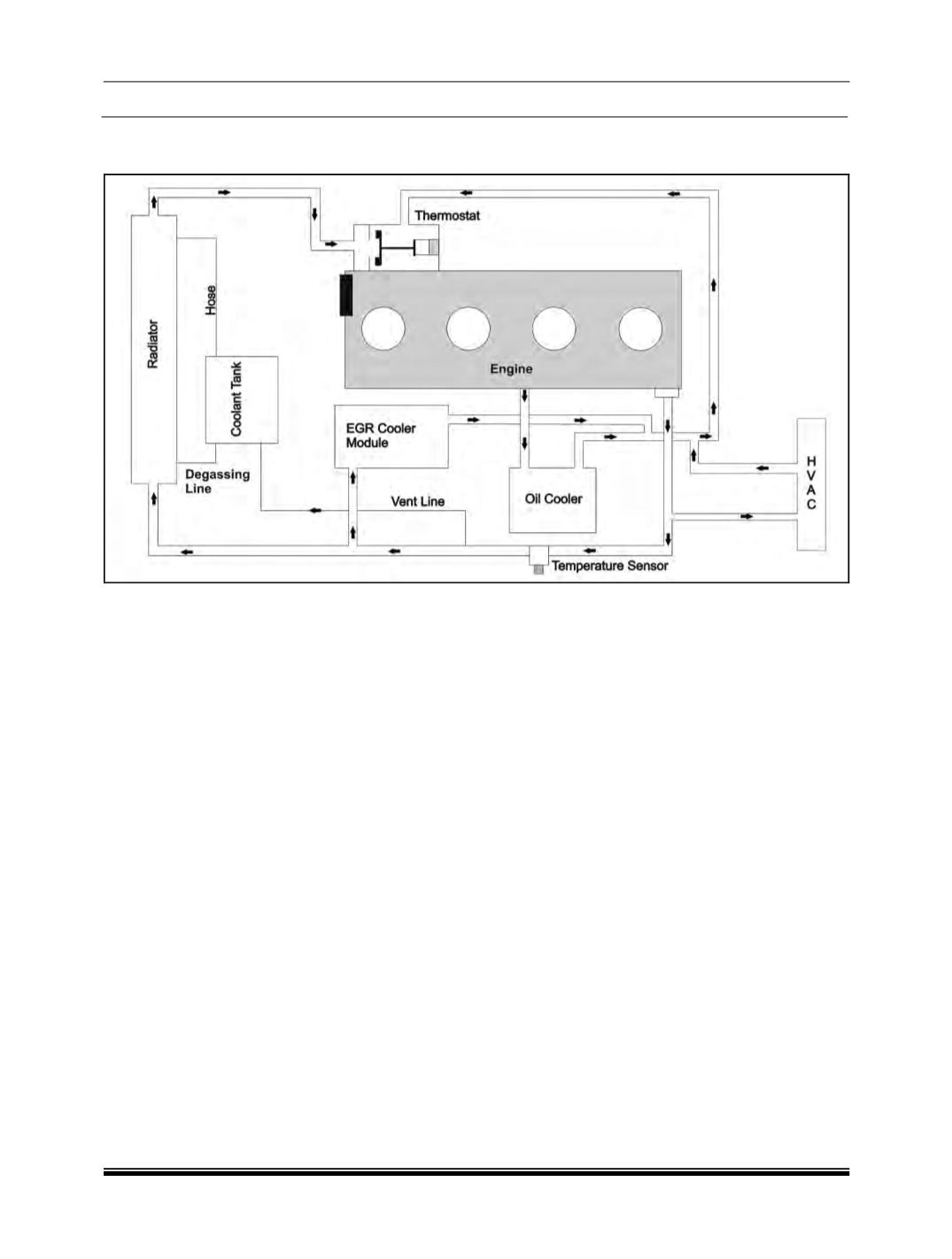

Cooling System Schematic Layout :

Description :

The above figure gives the coolant flow circuit with

the components. The coolant flow is controlled by

the thermostat

(For details refer Thermostat in

next section).

In addition to the Cylinder head and

block, the coolant also circulates through Oil

cooler, HVAC heater coil and EGR Cooler

.

An auxiliary coolant tank is provided to

compensate for the drop in coolant level. In

addition there is a de-gassing line and a vent line

connected to it. These help in maintaining the

system pressure created by expansion and

contraction of the coolant.
