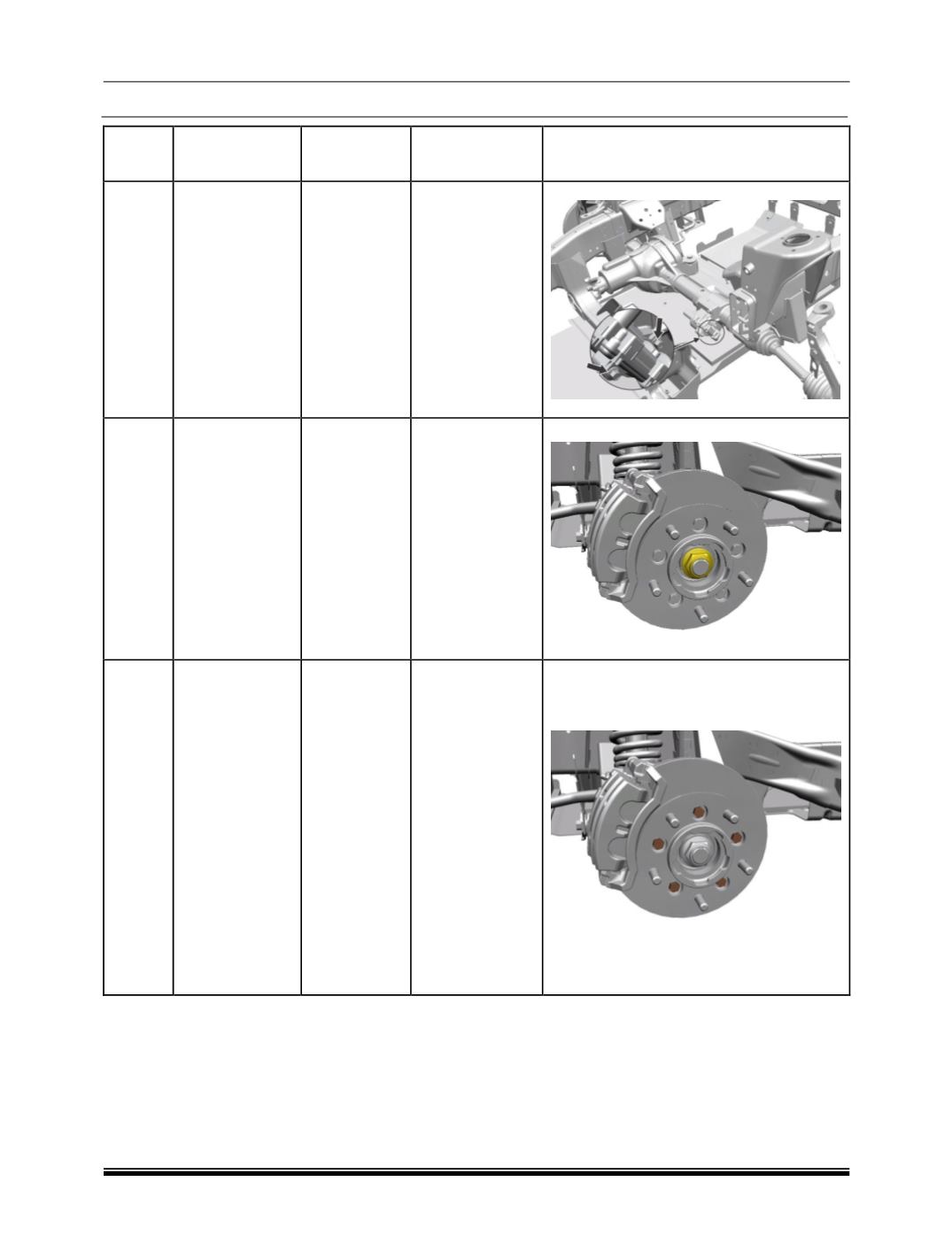

FRONT AXLE (4X4)

5

SR.

NO

DESCRIPTION FASTENER

TIGHTENING

TORQUE

(Kg-m)

LOCATION

7

Disconnect

housing motor

mounting screw

torque.

A/F 8.0 mm,

24mm Long,

21mm

Thread

0.9 – 0.16

8

CV joint and

wheel end

assembly nut

(Spindle nut)

A/F 36 mm,

M24X1.5 6H

30 – 32

9

Hub and brake

disc assembly

bolt torque.

A/F 17.0,

M10X1.0,

30mm Long

4.6–5.2
