BODY
19

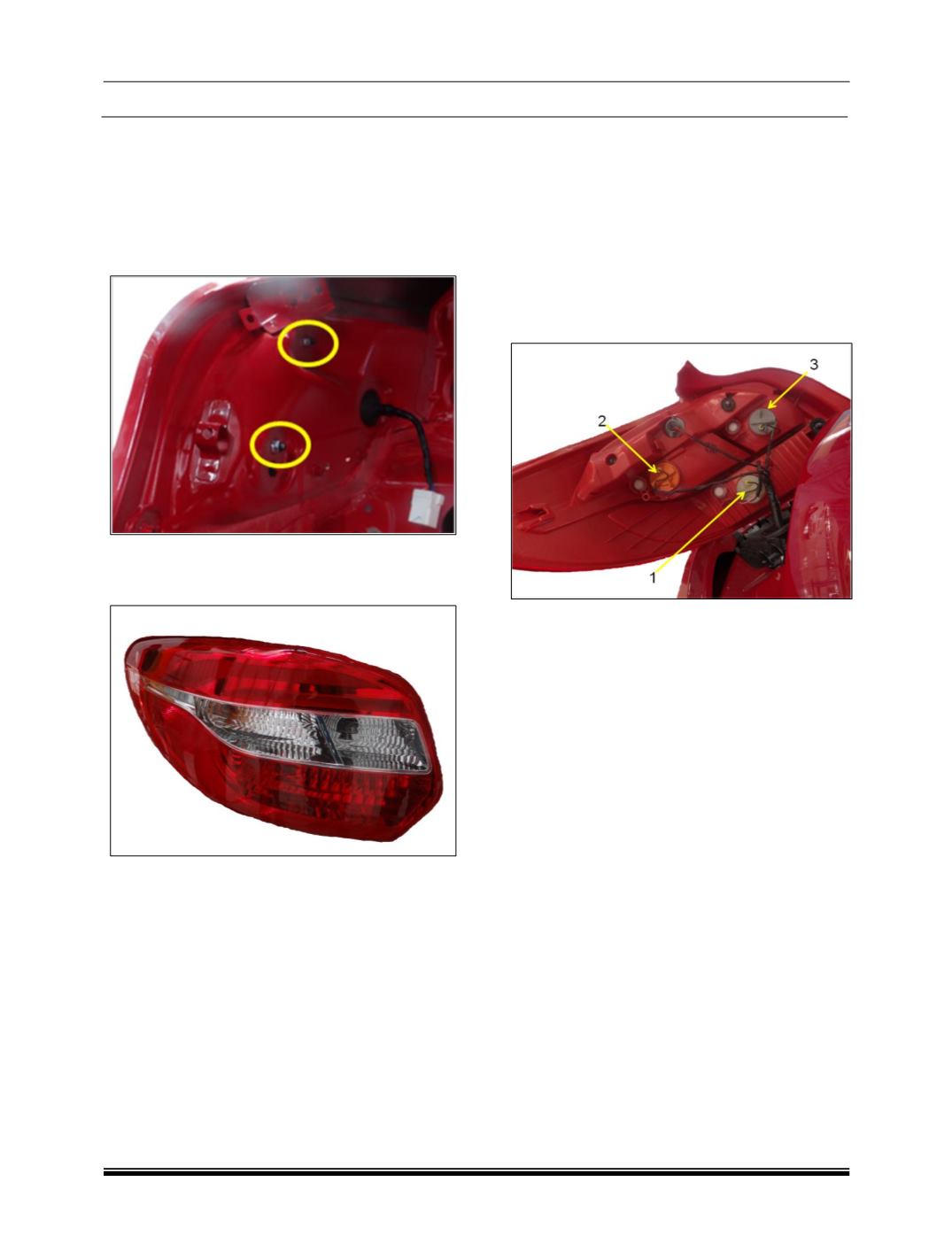

16. Tail Lamp :
Removal :
9. Remove battery terminals.
10. Open the trunk lid.
11. Remove trunk lid inside carpet.
12. Remove the two mounting fasteners of tail
lamp.
13. Disconnect the electrical connection of tail
lamp.
14. Remove the tail lamp.
Installation :
1. Connect the electrical connection.
2. Relocate the tail lamp on its proper position.
3. Refit the fasteners of tail lamp.
4. Refit the inside carpet.
5. Reconnect the battery.
17. Tail Lamp Bulb Re-fitment :
Removal :
1. Remove tail lamp as mention in the Tail Lamp
Removal Procedure.
2. Rotate the bulb holder in anti-clockwise
direction to remove the bulb.
3. Change the bulb.
1. Stop Bulb
2. Indicator Bulb
3. Reverse Bulb
Installation :
1. Replace the bulb to proper position in bulb
holder.
2. Rotate the bulb holder in clockwise direction
to proper fitment in tail lamp.
