BODY
37

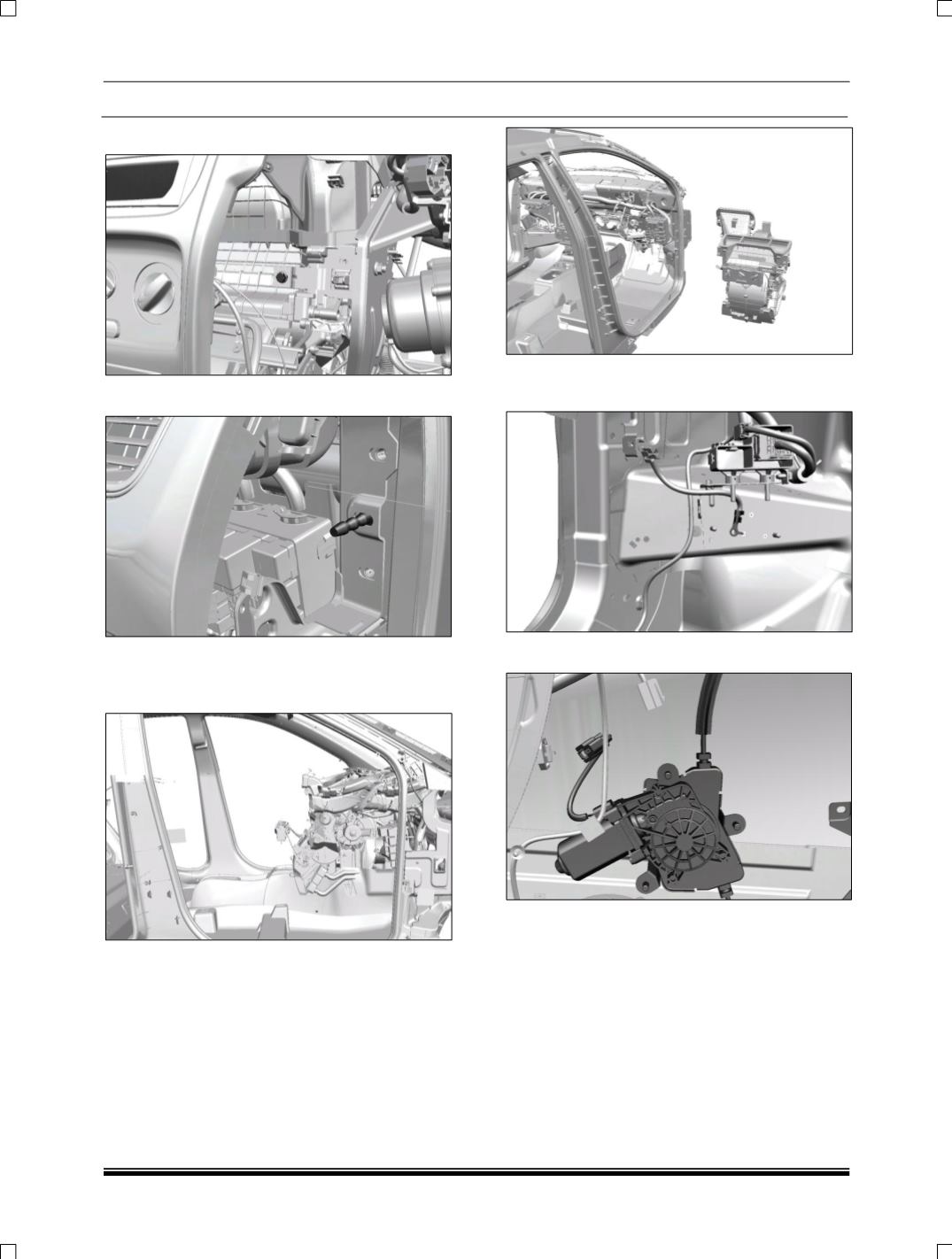

4. Remove cowl link fixing.
5. Remove CCB to BIW fixings.
6. Move the front seat backwards.
7. Move the CCB assembly with HVAC and
wire harness.
8. Remove the whole assembly outside the
BIW.
9. Remove earthing connections on manipulator
bracket LH side.
10. Remove wire harness connection on WWM
