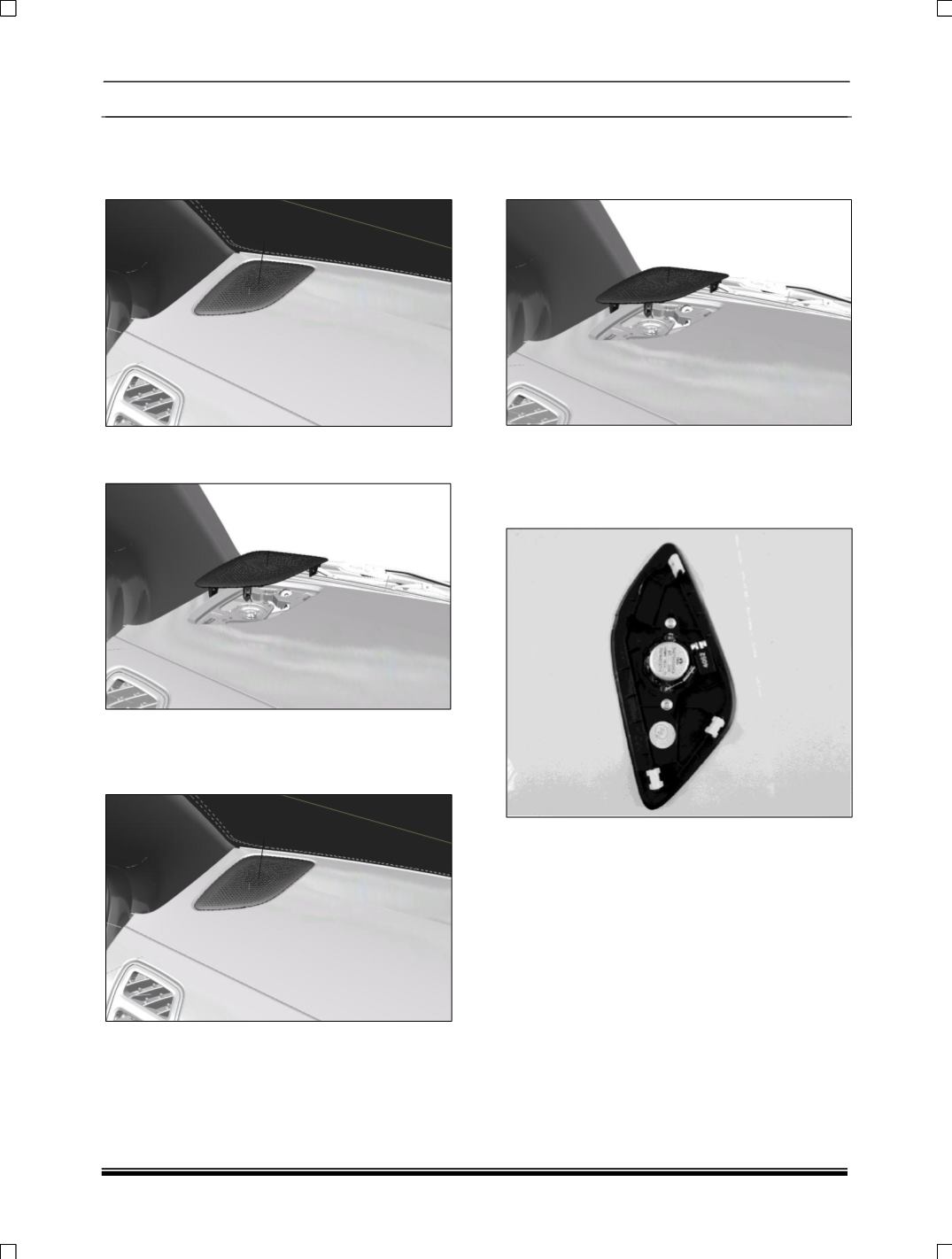

9.9.5 SPEAKAR GRILL SERVICING

1. Insert the wedge pin to remove the speaker

grill.

2. Drag it along the arrow direction to remove

the speaker grill.

ASSEMBLY

1. Position the speaker grill properly and press

fit it.

9.10.6 TWEETER SERVICING

1. Pull the speaker grill along with tweeter

upwards.

2. Remove the wire harness connections and

remove the tweeter.

3. Remove screws as shown in fig and remove

tweeter.

ASSEMBLY

1. Fix the tweeter by screws.

2. Connect the wiring harness connection

3. Press fit the assembly.
