BODY
6

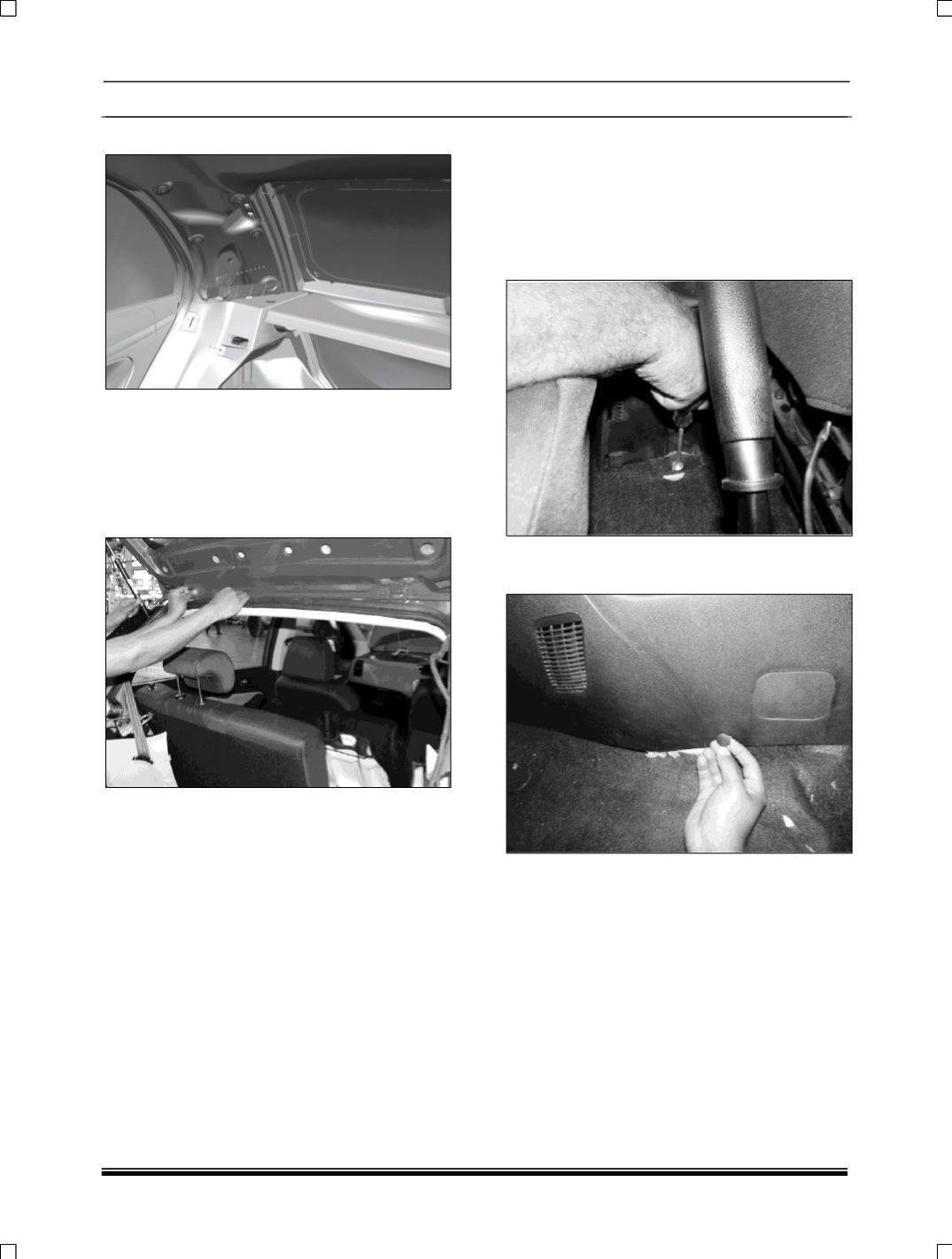

8. 'C' pillar trim removed.
REFITMENT OF 'C’ PILLAR TRIM:
1. Insert rear seat belt through slot in 'C' pillar
trim, match trim buttons in appropriate holes &
press gently, ensure proper alignment &
fitment with rear quarter trim.
2. Refit both side door & tailgate beading.
3. Refit parcel shelf.
9.4.5 REMOVAL OF CENTRAL FLOOR
CONSOLE:
1. Remove hand brake lever cover to get access
to unscrew Central floor console.
2. Remove Rear screw of Central floor console
and slide it rearwards to unsnap from front
console.
3.
Remove Front 4 clips on both LH & RH side
of Central floor console.
REFITMENT OF CENTRAL FLOOR CONSOLE:
1. Locate the Central floor console properly.
2.
Refit Front screws of both LH & RH side of
Central floor console.
3. Refit Rear screw of Central floor console.
