SUSPENSION
34

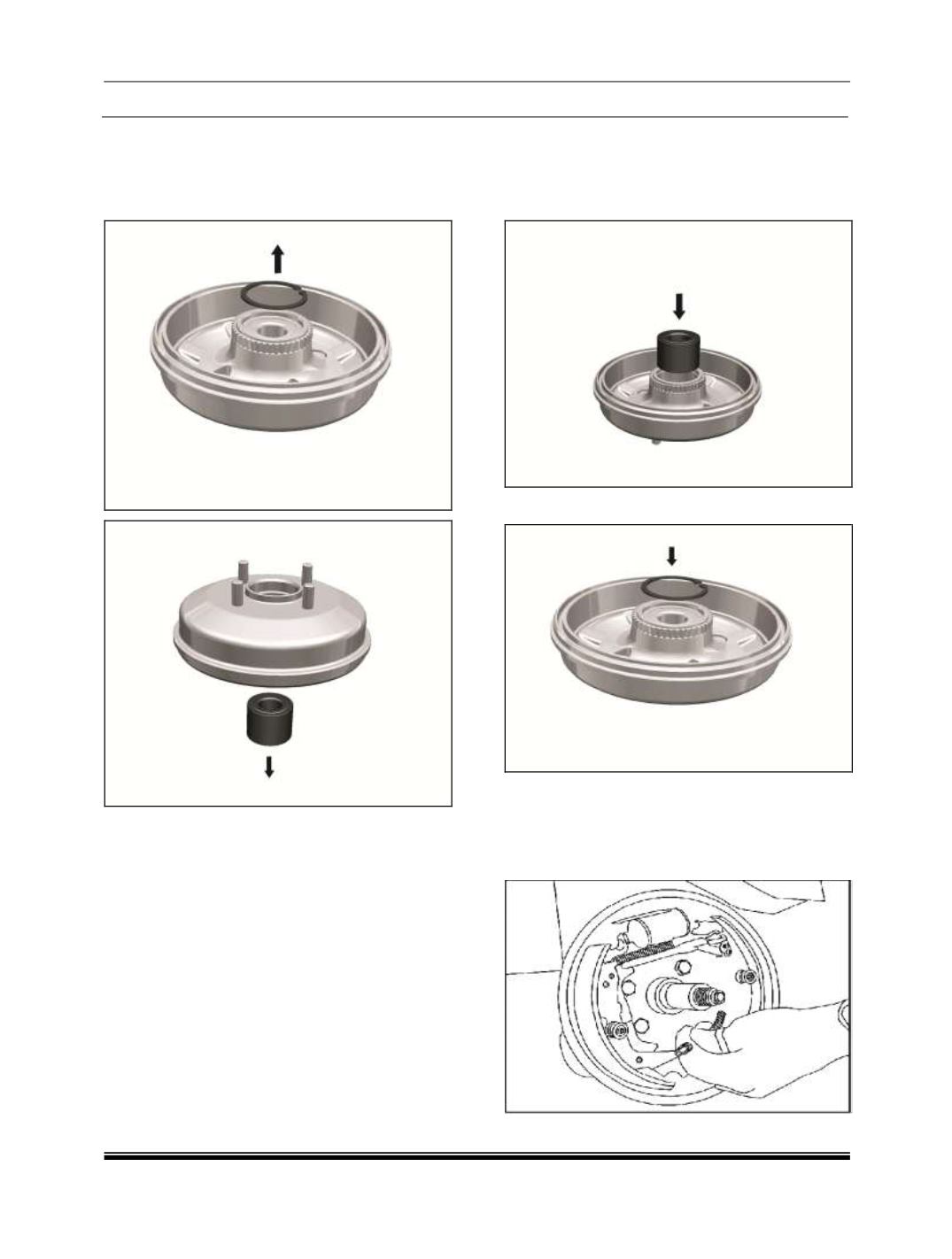

9. REAR BRAKE DRUM BEARING REMOVAL.
Fit the special tool part no (2871 5890 4202) to
the brake drum and pry out the bearing using
press after removing the circlip over it
CAUTION:
Bearing removed from brake drum should
not be
reused again.
10. REAR BRAKE DRUM BEARING FITMENT
Insert the new bearing to the brake drum using
the bearing installer special tool part no (2871
5890 4202) as shown in the Figure.
10a fit the circlip
11. Detach the hand brake cable from the lever
on the trailing shoe by moving the lever
towards the centre of the brake and removing
the cable nipple from its location in the end of
the lever as shown in Figure.
