Revotron 1.2T
157

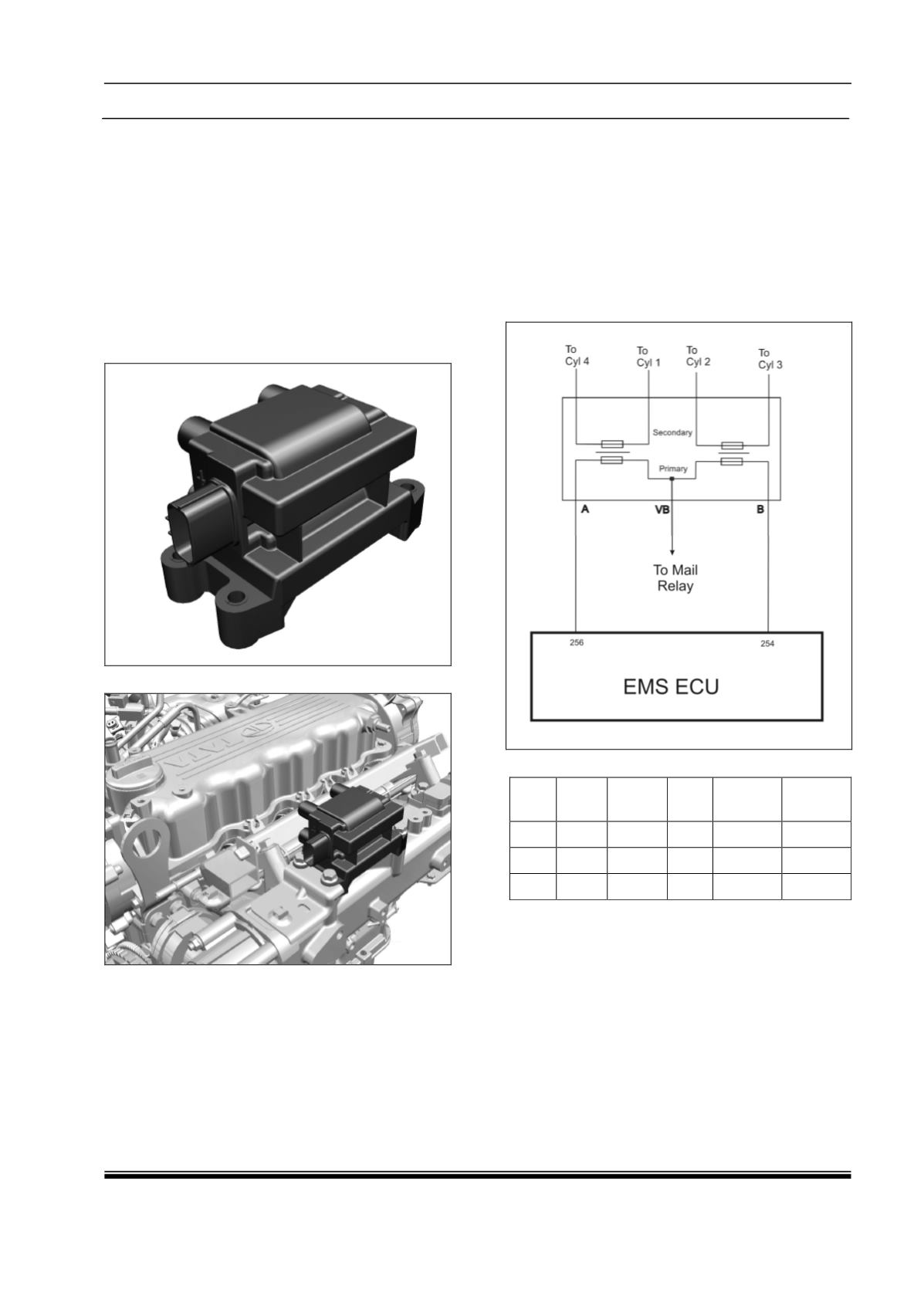

i. Ignition Coil :
Component Details :
An
ignition coil
(also called a
spark coil
)
is an induction coil in an automobile's ignition
system which transforms the battery's low
voltage to the thousands of volts needed to
create an electric spark in the spark plugs to
ignite the fuel. The wire that goes from the
ignition coil to the distributor and the high
voltage wires that go from the distributor to
each of the spark plugs are called spark plug
wires or high tension leads.
Component Location :
Preliminary Checks :
1. Loose/ Damaged Connections between
Ignition coil A and EMS ECU.
2. Check for back out of pins at both Ignition
Coil connector and ECU connector.
3. Check for damage of pins at both Ignition
Coil connector and ECU connector.
Circuit Schematic Diagram :
Connector Information :
Con
ID
Wire
ID
Color Size Material
Option
1
746
G
1.50 FLRYB
(AD)
2
121F
R/Y
1.50 FLRYB
(AD)
3
747
L
1.50 FLRYB
(AD)
