ENGINE
64

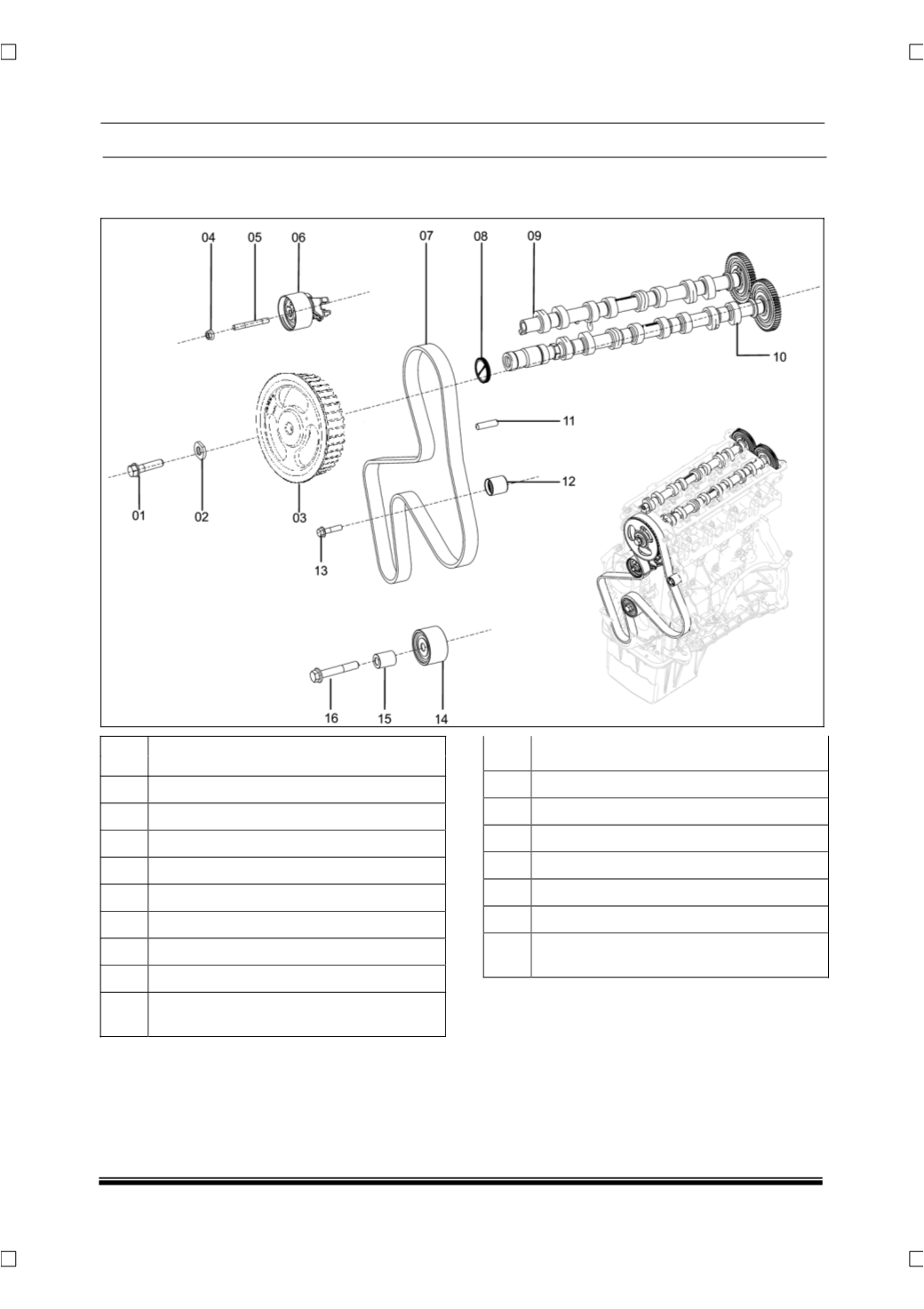

2.1.3.3 TIMING SYSTEM
A. EXPLODED VIEW
SR.
NO.
DESCRIPTION
1
Hexagonal bolt
(Camshaft gear mounting)
2
Washer
(For camshaft gear)
3
Timing gear
(Camshaft)
front
4
Hexagonal flange nut AM8
5
Stud
(For auto tensioner)
6
Assembly tensioner
7
Timing belt
8
Oil seal
(Camshaft)
9
Assembly camshaft
(Exhaust)
with pin &
gear
SR.
NO.
DESCRIPTION
10 Assy camshaft
(Intake)
with pin & gear
11 Cylindrical pin
(Tensioner)
12 Assembly Touch idler
13 Hexagonal flange bolt M8x35
14 Assembly Idler
15 Spacer
(Timing belt idler)
16
Hexagonal flange bolt
(For timing belt
idler)
