ELECTRICAL
171
ELECTRICAL

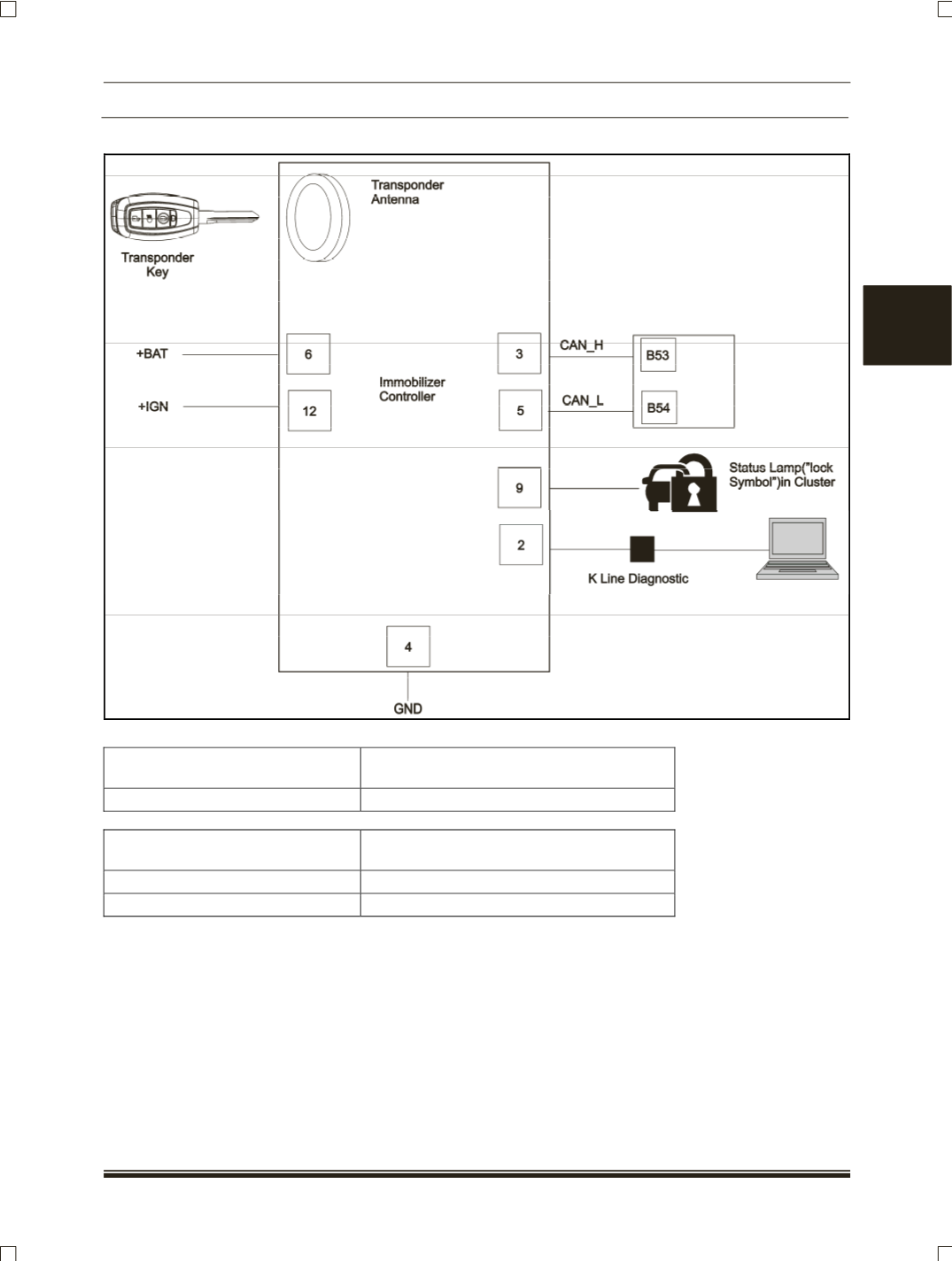

3.BLOCK DIAGRAM
Immobilizer connector
Instrument cluster
TATA SAFARI STROME
Status lamp Pin 9
Pin 30
Immobilizer connector
EMS vehicle connector
TATA SAFARI STROME
CAN_H PIN 3
PIN B53
CAN_L PIN 5
PIN B54
