ELECTRICAL
129
ELECTRICAL
DESCRIPTION:
SR. No
DESCRIPTION
SR. No
DESCRIPTION
1
Body Control Module
13
Master Light Switch
2
Instrument Cluster
14
Rear Wiper Motor
3
Ignition Switch
15
Horn
4
Battery 12V,80 Ah
16
Door Latch Assy.(
Actuator
)
5
Combi. Switch
6
Hazard Warning Switch
17
Fuse Box
A. BCM BATTERY (30A).
B. BCM 2 IGN (5A)
7
Remote Key
18
Diagnostic Connector
8
Inertia Switch
19
Reverse Light Switch
9
ORVM Switch ( Fold / Unfold )
20
Front Wiper Motor
10
Assy. Head Lamp
21
Tail Lamp
11
Front Fog Lamp
22
Window Winding Controller
12
Row Roof Lamp

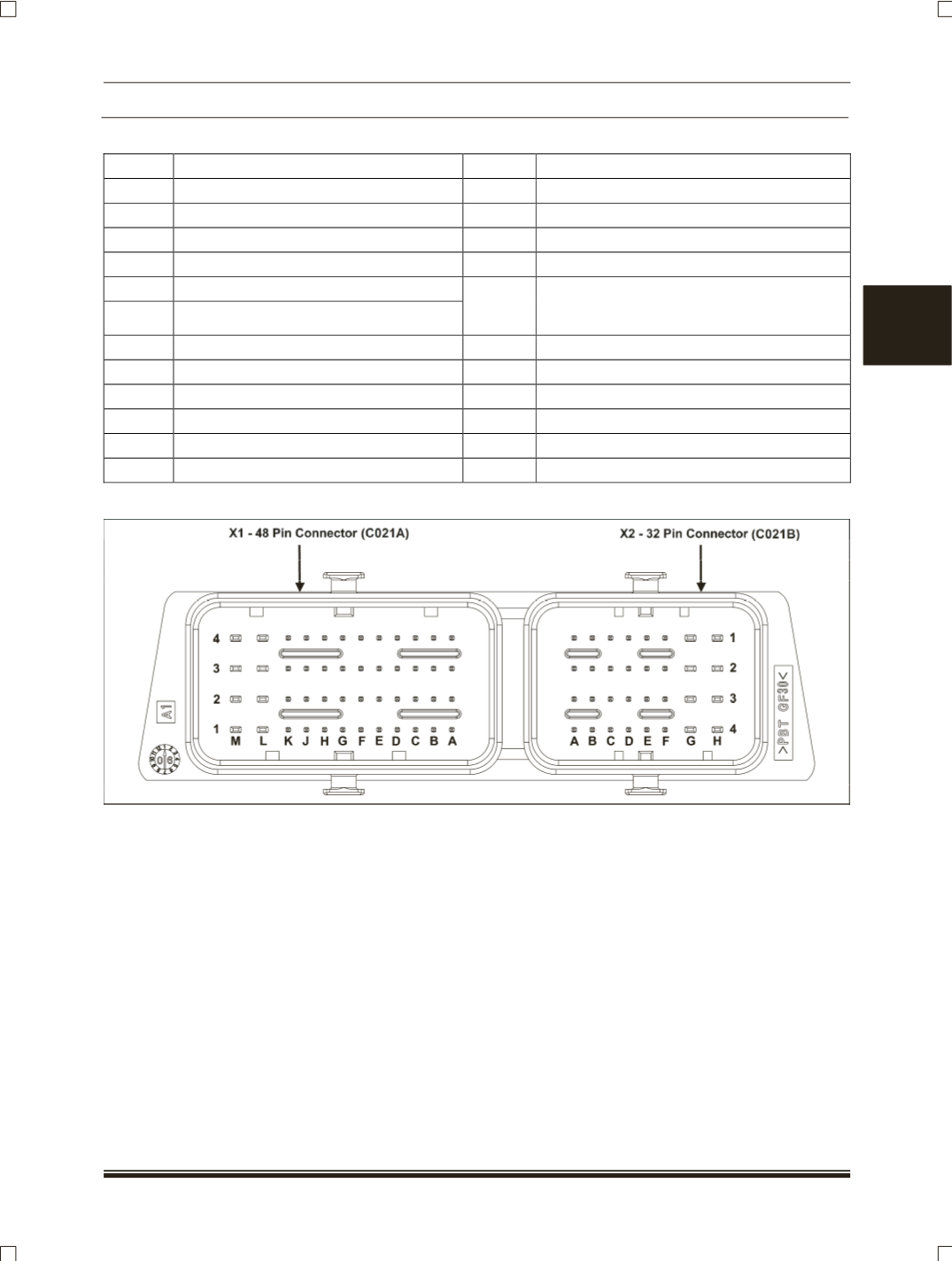

BCM CONNECTOR DETAILS:
