ELECTRICAL
52

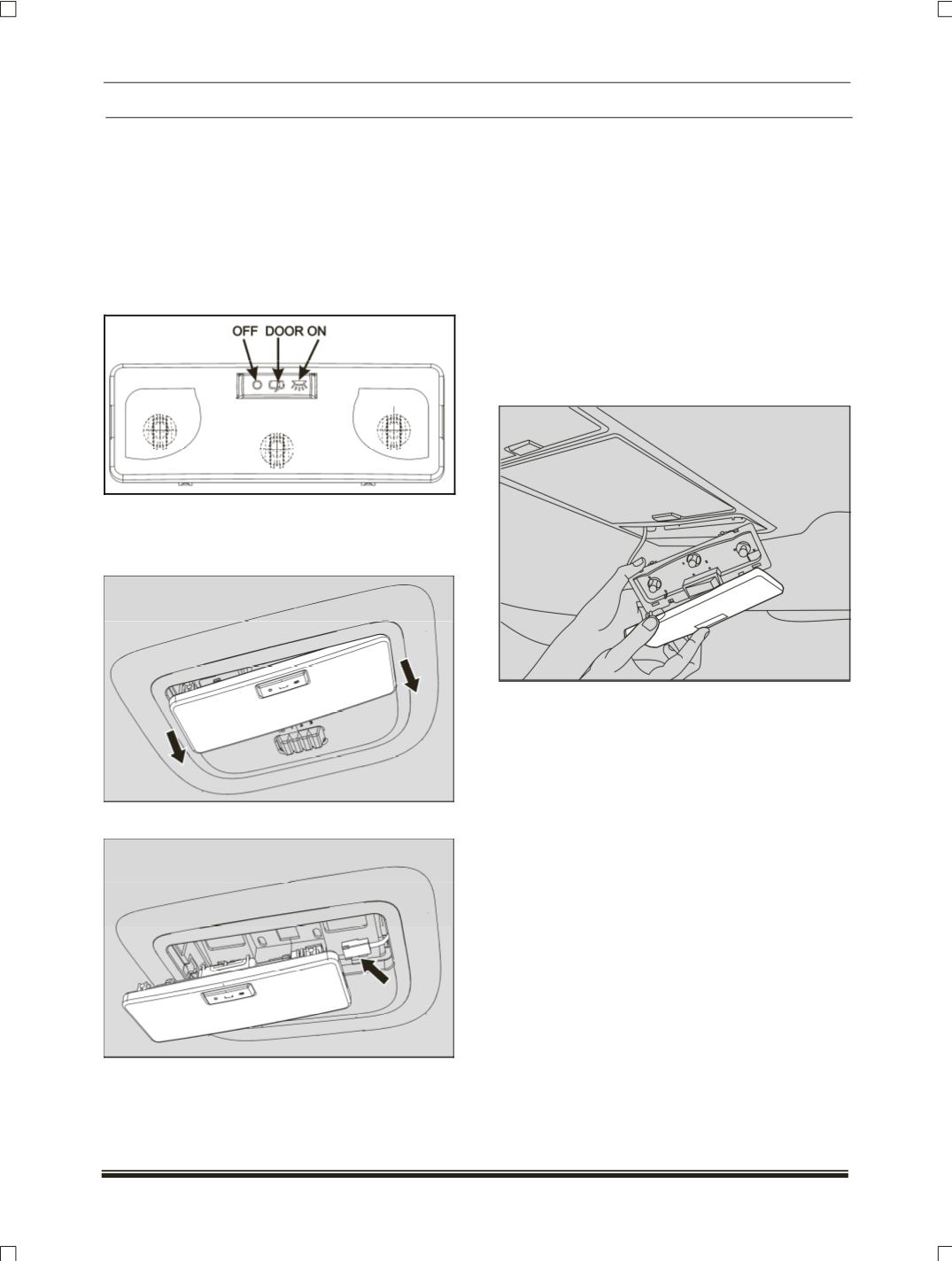

8.4.7 SECOND AND THIRD ROW ROOF LAMP
Second and Third row roof lamps are fitted
with a three-way switch. Switch has ON, OFF and
DOOR positions. In the ON or OFF position, the
lamp is directly controlled by the switch. In ON or
OFF position, no lamp dimming is used.
In the DOOR position, the lamp operation
is controlled directly by the BCM. It consists of 3
bulbs of 12 V 5W ratting.
REMOVAL:
1. Pry out the roof lamp assembly from the rear
roof console.
2. Disconnect the electrical connection.
3. Take out the lamp.
INSPECTION:
1.Check the filaments in the bulb if blown replace
the faulty bulb.
2.Check for damages in the locks area
REFITMENT:
1.Connect the electrical connection.
2.Fit the roof lamp into cutout provided on rear
roof console.(
snap fitted
)
BULB REPLACEMENT PROCEDURE:
1.Remove the roof lamp.
2.Remove the lens of roof lamp.
3.Remove the bulb and replace with new one.
4.Fit the lens.
5.Fit the roof lamp.
