826 / 1236
ELECTRICAL
48

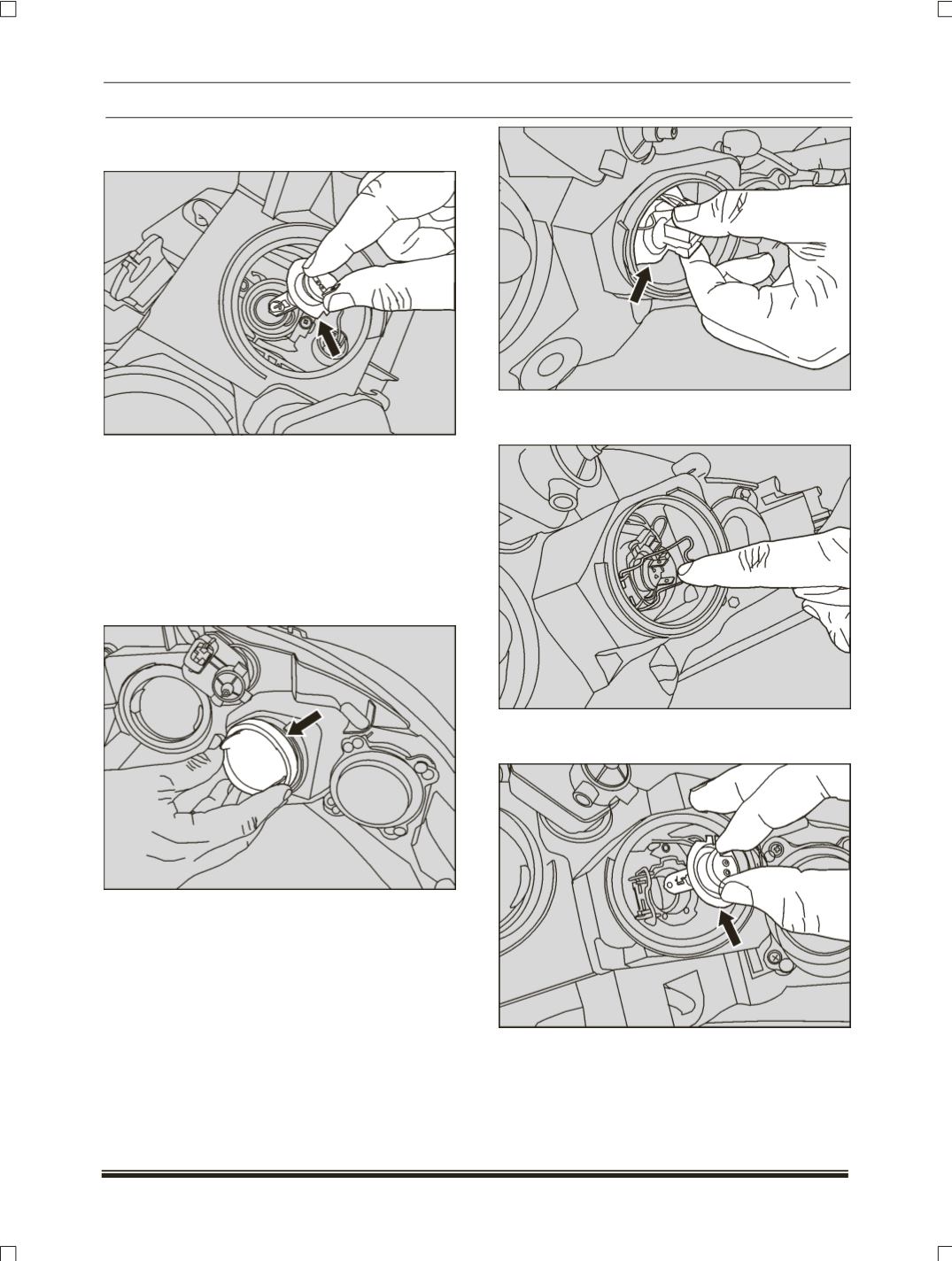

5.Remove the defective high beam bulb and
replace with new one.
6.Lock the retainer blub spring to its position.
7.Connect the electrical connection.
8.Fit the rubber dust cap.
LOW BEAM (
H7, 12V, 55W
)
1.Open the bonnet.
2.Remove the rubber Cap / Socket cover on the
backside of headlamp.
3.Disconnect the electrical Connection of bulb
4.Release the retainer bulb spring, which holds the
bulb by pressing 7 moving it upward.
5.Remove the defective low beam bulb and
replace with new one
6.Lock the retainer blub spring to its position.
7.Connect the electrical connection.
8.Fit the rubber dust cap.
