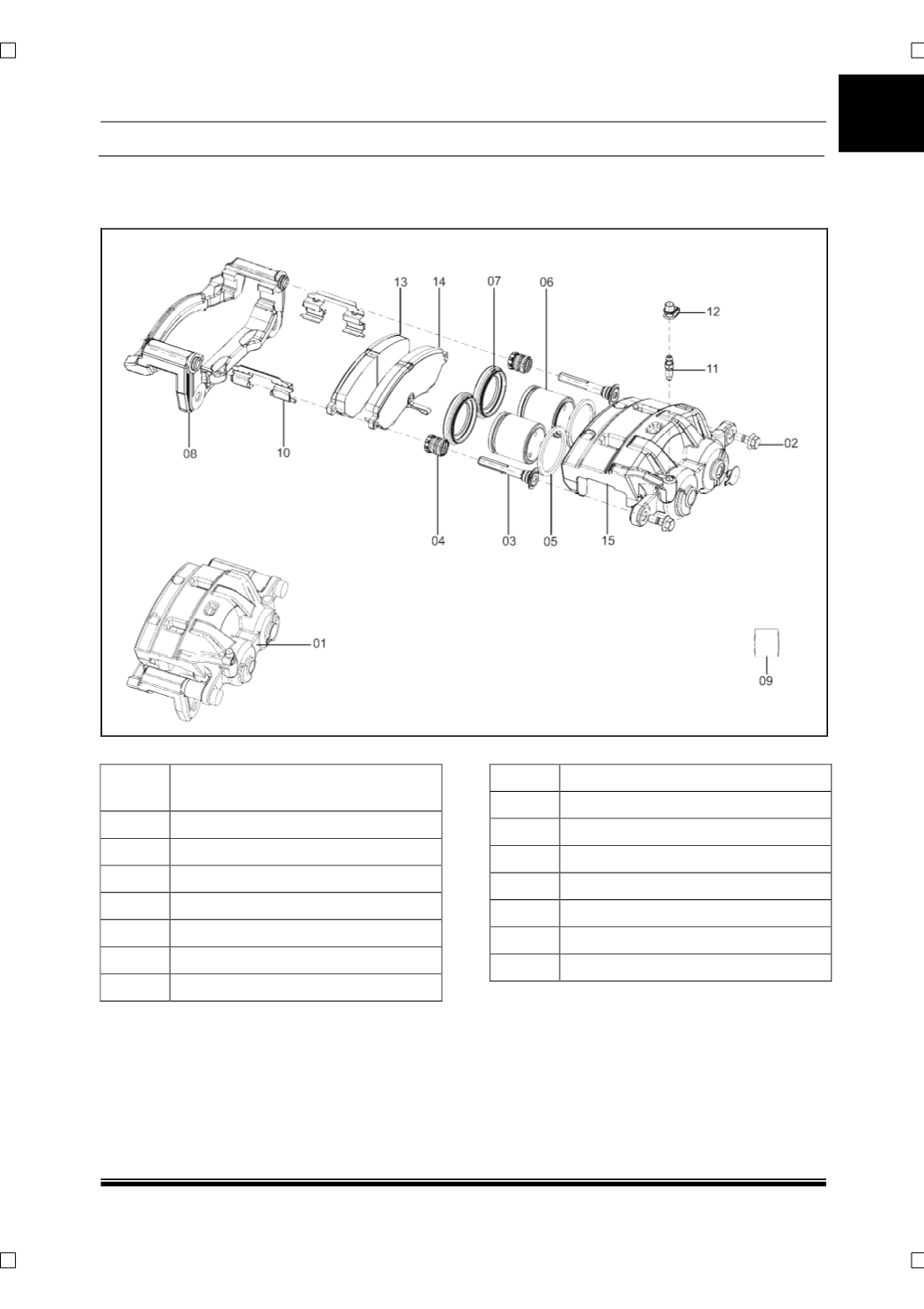

6.1.3.2 DISMANTLING, INSPECTION AND ASSEMBLY
A. FRONT CALIPER ASSEMBLY
SR.
NO.
DESCRIPTION
01
C48x48 front caliper assembly
02
Bolt pin
03
Guide pin
04
Excluder guide rod
05
Sealing ring
06
Piston machining
07
Boot piston
08
Carrier machining
09
Grease sachet
10
Anti rattle spring
11
Bleed screw
12
Dust cap
13
Pad assembly outboard
14
Pad assembly inboard
15
Front caliper housing
