PROPELLER SHAFT
11
PROPELLER
SHAFT

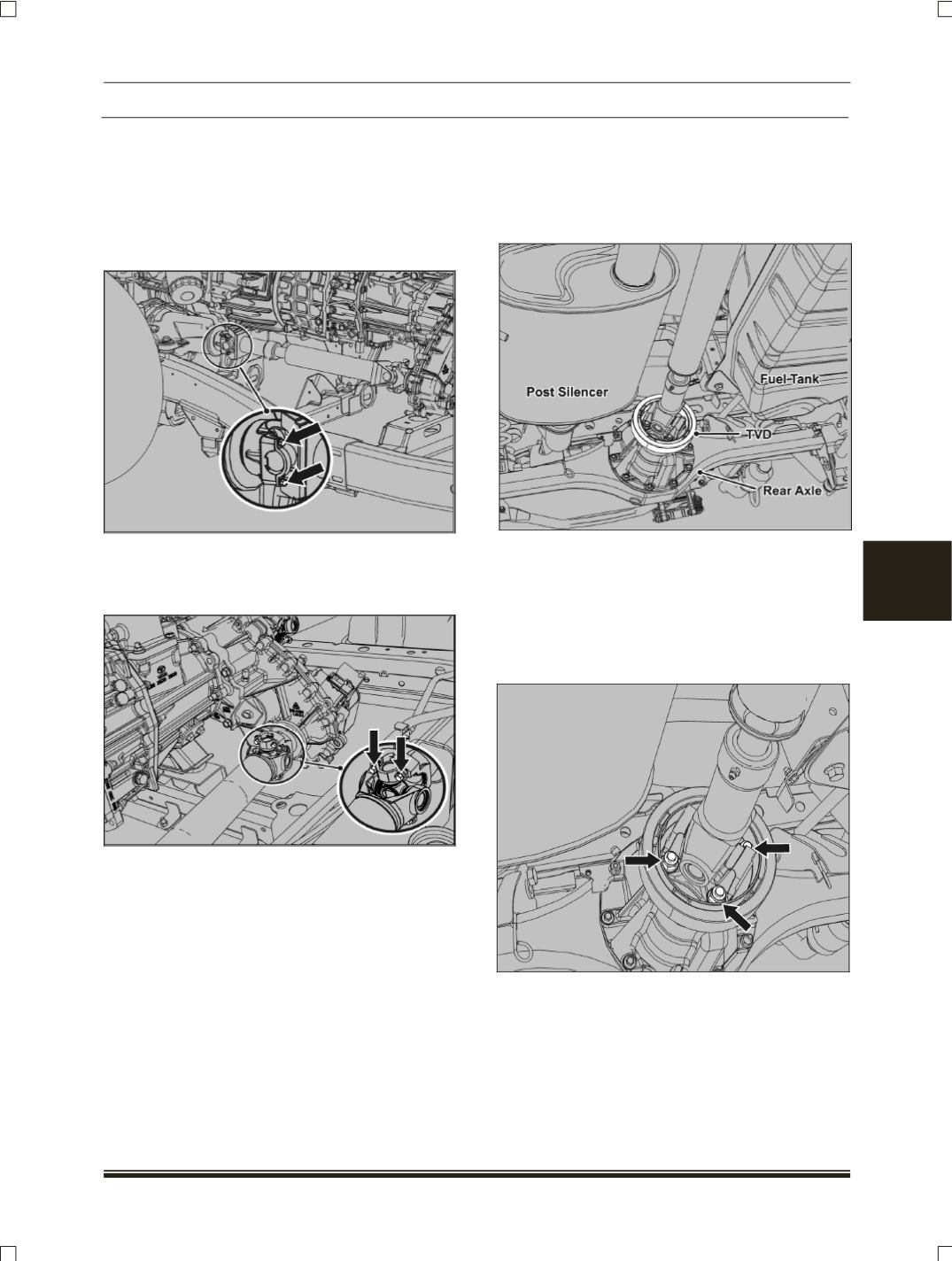

FRONT PROPELLER SHAFT
REMOVAL
1. Remove the Stone guard rear piece.
(For stone
guard removal procedure refer Body section)
2. Loosen and remove the mounting bolts of
bearing straps on the front axle side.
3. Properly support the propeller shaft.
4. Loosen and remove the mounting bolts for
bearing strap on the transfer case side.
5. Carefully separate the propeller shaft from the
vehicle.
FITMENT
For fitment follow the reverse procedure of
removal.
NOTE
Follow all the precautions and safety instructions
mentioned under rear propeller shaft (4X4) fitment.
C
TVD
(TORSIONAL VIBRATION DAMPERS)
LOCATION
TVD is used to reduce the torsional vibration and it
is located between propeller shaft and rear axle
differential flange.
REMOVAL
1. Hoist the vehicle on two a poster lift.
2. Lift the vehicle
3. Loosen and remove four nuts and disconnect
the rear end of the propeller shaft from rear axle
end.
4. Take out the TVD.
FITMENT
For fitment follow the reverse procedure of
removal.
