Rear Axle
27
pin bottoms out, stake (Peen) a little metal over
the edges in two places 180°Apart.
5.0 AXLE SHAFT DIS-ASSEMBLY & RE-
ASSEMBLY
5.1 DIS-ASSEMBLY OF AXLE SHAFT
ASSEMBLY

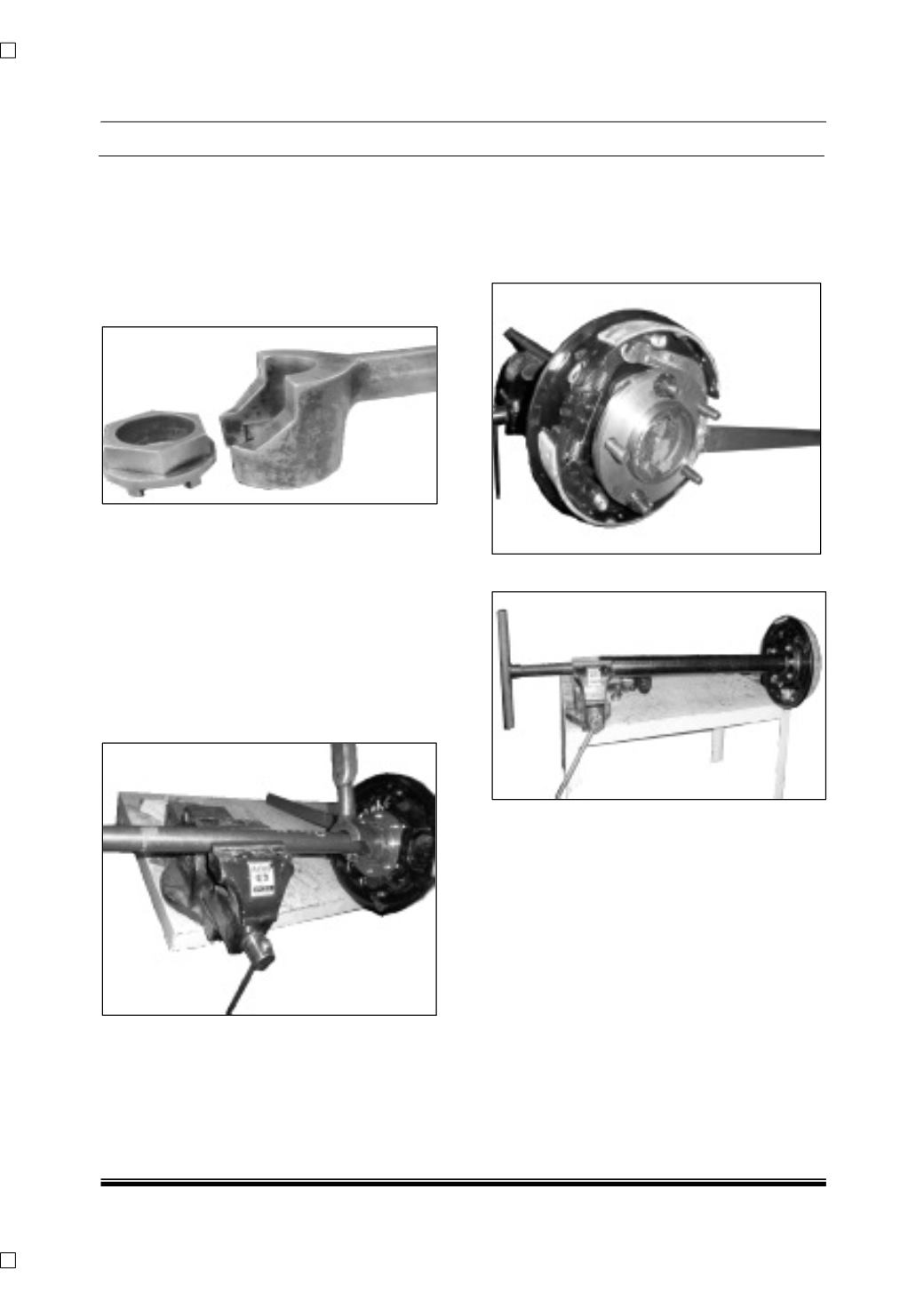

Tone Ring Removal
Mount Axle shaft stand on the shop table & firmly
fit with bolts, Mount the removed axle shaft
assembly on this stand.
Note:
Ensure Cleanliness of the stand & is damage free.
Dent on the stand may damage the axle shaft
flange & in turn results in incorrect brake disc run
out. Install the axle shaft bearing puller on axle
shaft assembly as shown in figure & remove the
tone ring.
Locknut Removal
Straighten the bent lock washer into Lock Nut with
the help of screw driver.
Install locknut removal adaptor on lock nut install
socket & remove the Lock Nut.
Remove Lock Washer & Thrust Washer from Axle
Shaft
Note:
Use New Lock washer while reassembly of axle
shaft
Bearing Holder Assembly Removal
Again Install the bearing puller on axle shaft, &
lock the legs of puller under the bearing holder
flange securely. Remove the bearing holder
assembly by rotating the handle of the bearing
puller.
Take out the brake assembly from axle shaft.
